Vybronics VZ4TL2B124064X
Model Number: VZ4TL2B124064X
(old p/n: Z4TL2B124064X)

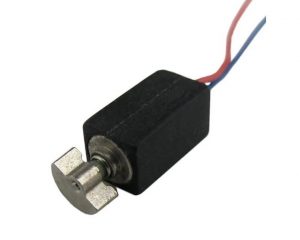

4.6mm Height | 3 V | Wire Leads | Vibration Motor

This motor is similar to other VZ4TL series motors, but it our uses a smaller counter weight. The silicone rubber boot running the length of the motor allows the motor to be press fit into a cavity in your products housing. You may request that this rubber boot be added to any of our VZ4TL family of vibration motors. If your order is for a minimum of 1000 pieces we can mount a connector on the end of the wire.

CLICK  HERE to see photos of how this motor is typically mounted in the products housing.

Summary Of Specifications
Diameter/Height (mm): 4.0 / 4.6
Body (mm): 8.6
Overall (mm): 11.6
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Rated Current MAX (mA): 80
Typical Current (mA): 56
Rated Speed (rpm): 15000
Vibration Force (Grms): 1.30
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 6000
Size - Master Box: 44*22*20CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024
Available from
DigiKey Logo
QTY In Stock: 1,394 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VZ4TL2B124064X (old p/n Z4TL2B124064X) Wire Leads Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VZ4TL2B124064X (old p/n Z4TL2B124064X) Wire Leads Cylindrical Vibration Motor data 03VZ4TL2B124064X (old p/n Z4TL2B124064X) Wire Leads Cylindrical Vibration Motor data 04VZ4TL2B124064X (old p/n Z4TL2B124064X) Wire Leads Cylindrical Vibration Motor data 05VZ4TL2B124064X (old p/n Z4TL2B124064X) Wire Leads Cylindrical Vibration Motor data 06
