Vybronics VZ6DL2A0050001
Model Number: VZ6DL2A0050001
(old p/n: Z6DL2A0050001)

6mm Diameter | 1.3 V | Wire Leads | Vibration Motor

This motor is a member of our popular VZ6D series of vibration motors. Our VZ6D series generates less vibration energy than our VZ6CL series but more than the smaller VZ6S series of vibration motors. If your order is for a minimum of 1000 pieces we can mount a connector on the end of the wire.

Summary Of Specifications
Diameter/Height (mm): 6.0
Body (mm): 12.0
Overall (mm): 17.1
Rated Voltage (Vdc): 1.3
Operating Voltage (Vdc): 0.9~1.6
Rated Current MAX (mA): 85
Typical Current (mA): 67
Rated Speed (rpm): 8500
Vibration Force (Grms): 0.80
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024


If you need samples,
please Contact Us.
Add To Favorite List

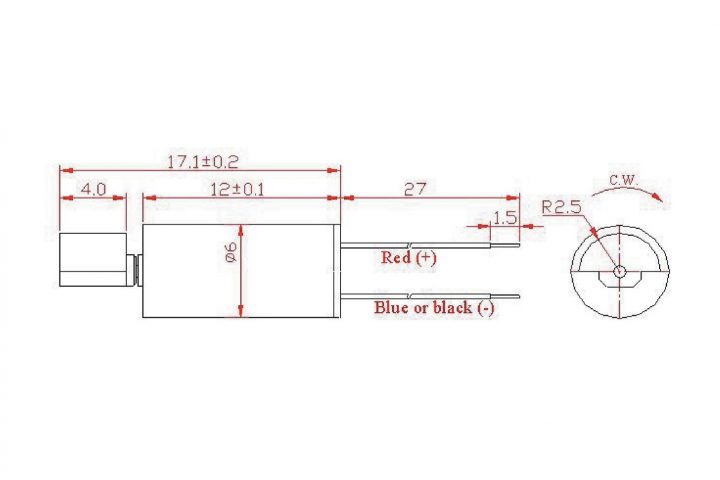

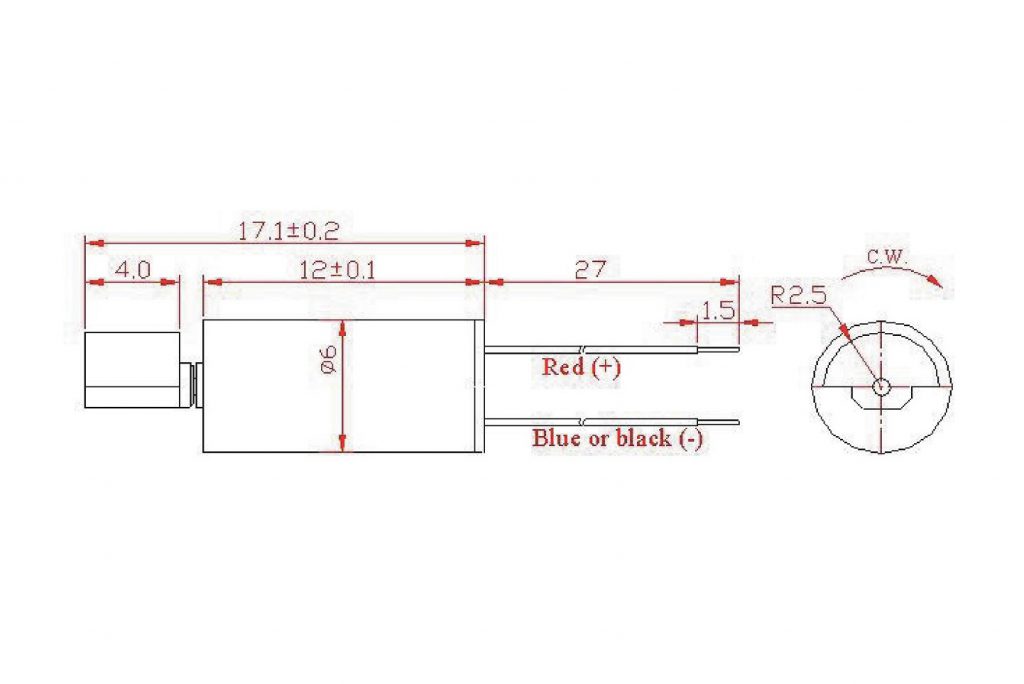

VZ6DL2A0050001 (old p/n Z6DL2A0050001) Wire Leads Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

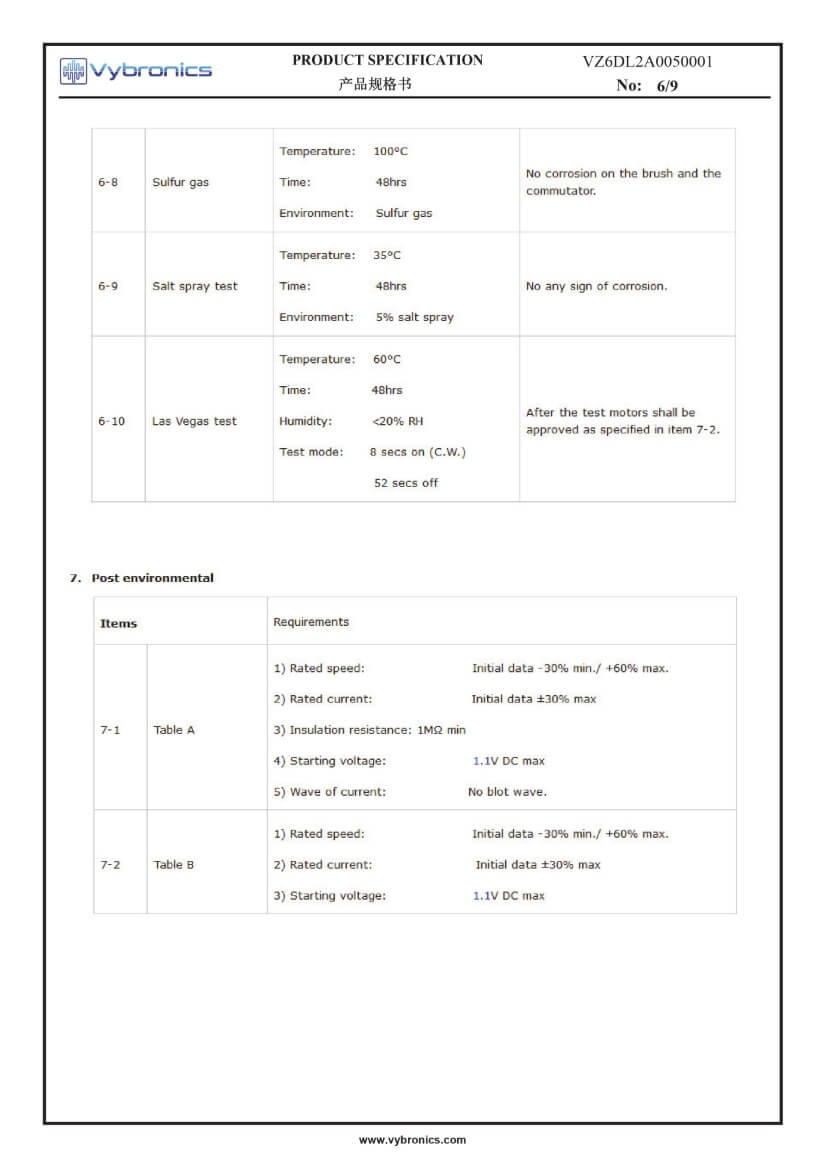

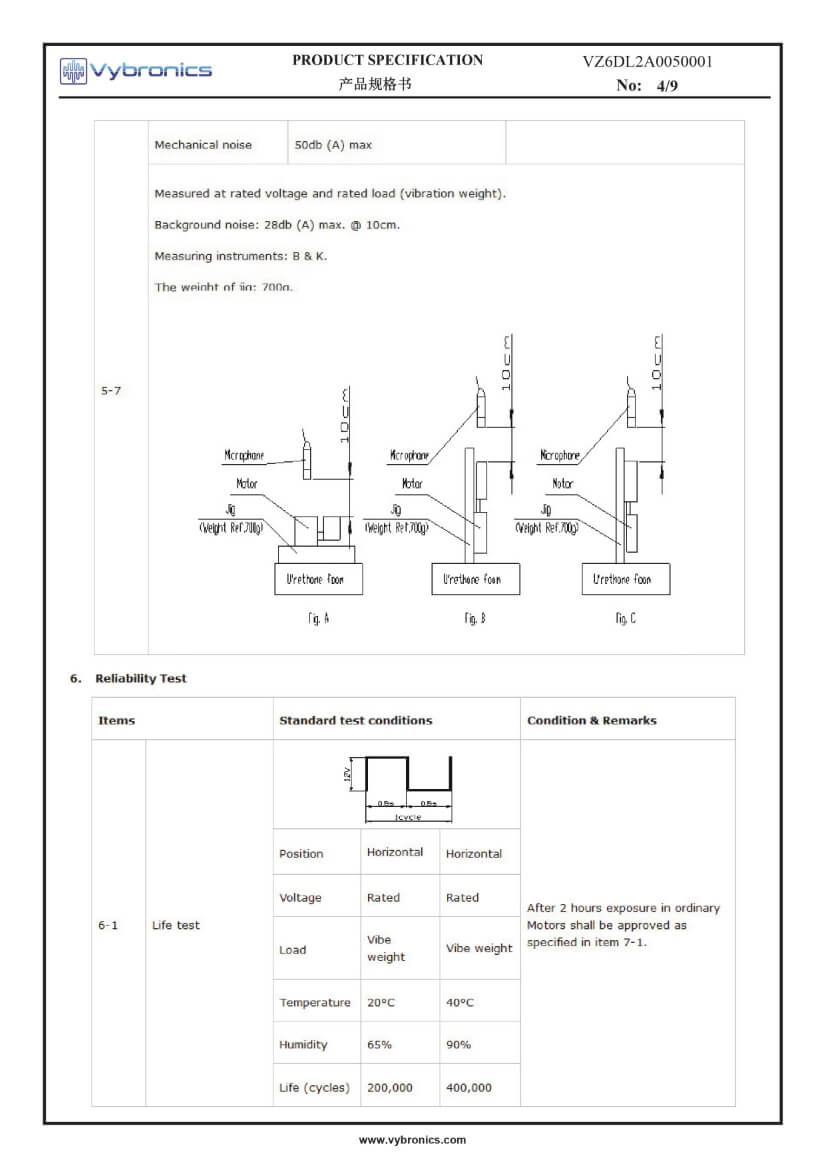

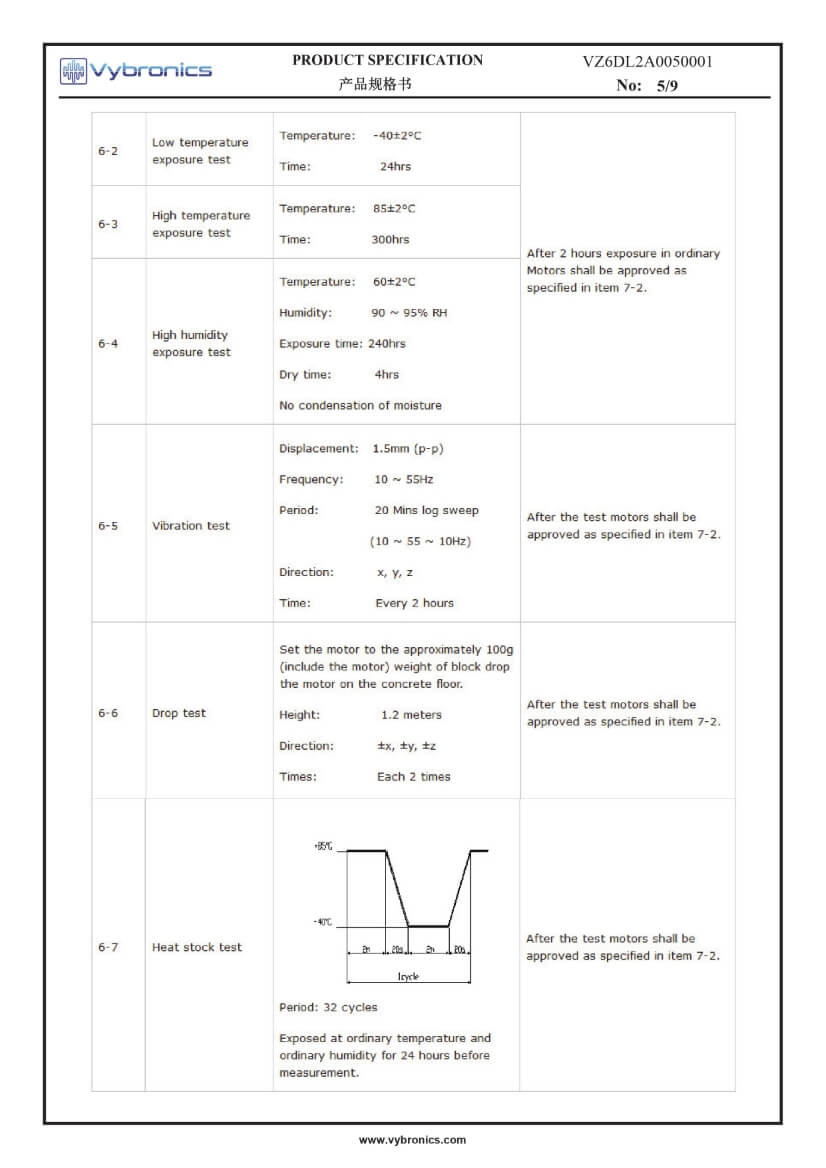

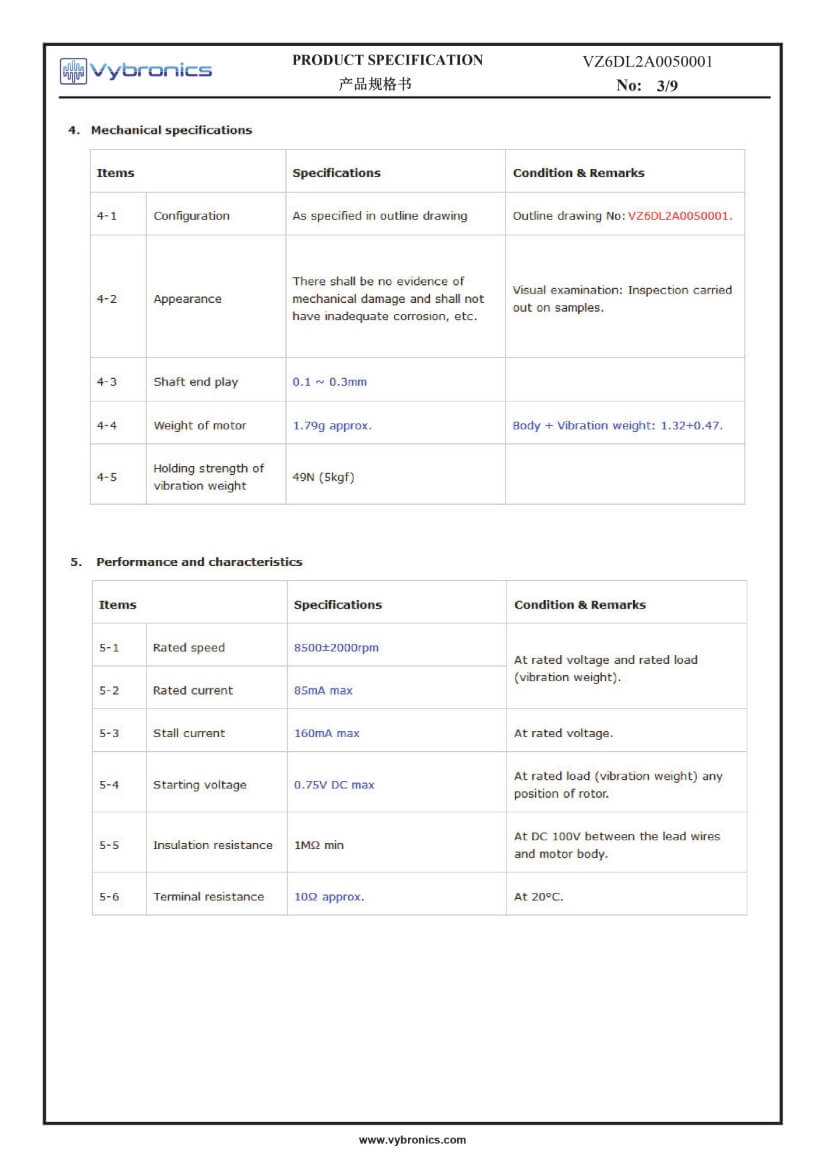

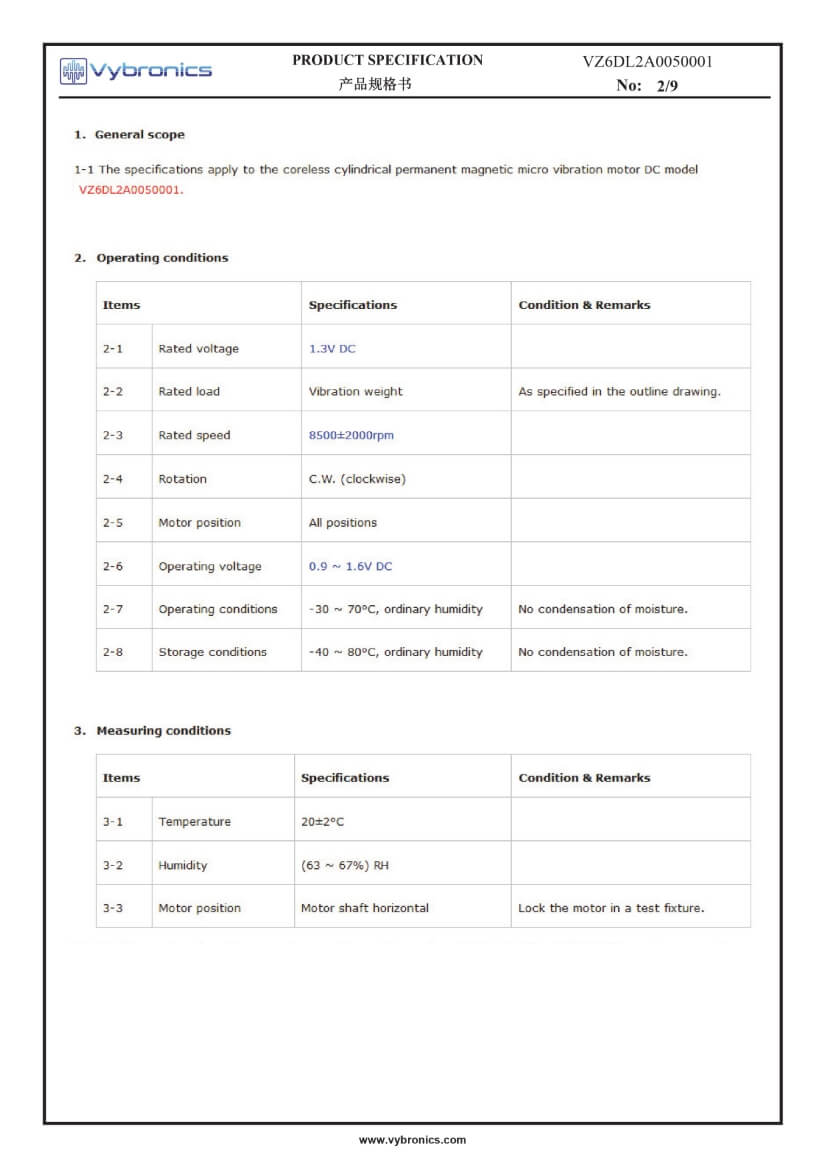

VZ6DL2A0050001 (old p/n Z6DL2A0050001) Wire Leads Cylindrical Vibration Motor data 02VZ6DL2A0050001 (old p/n Z6DL2A0050001) Wire Leads Cylindrical Vibration Motor data 03VZ6DL2A0050001 (old p/n Z6DL2A0050001) Wire Leads Cylindrical Vibration Motor data 04VZ6DL2A0050001 (old p/n Z6DL2A0050001) Wire Leads Cylindrical Vibration Motor Data 05VZ6DL2A0050001 (old p/n Z6DL2A0050001) Wire Leads Cylindrical Vibration Motor data 06
