KOTL JInlong L181206-120H
Model Number: VL181206-120H
(old p/n: L181206-120H)

18 x 12 x 6 mm | 2 Vrms | 120 hz | Low Frequency LRA

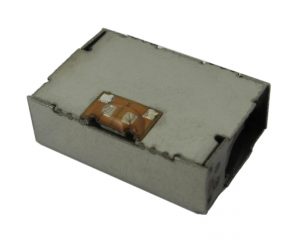

We developed the  VL181206-120H to support continued requests for low frequency linear resonant actuators LRAs.   While it is designed to generate the maximum G force at 120 hz,  it will also operate between 110 to  130 hertz  at a reduced G force output.    128 hz tuning forks are commonly used in the medical field  for neurologic and diagnostic purposes.   This LRA gives engineers the opportunity to design an electronic tuning fork that can generate 128 hz at various amplitudes, and could potentially be used to replace electromagnetically driven tuning forks.  We can supply this LRA as shown in the photo with FPC solder lands,  wire leads with a length as per your request, or a custom FPC.    Minimum quantities and tooling fees may apply.    An LRA driver IC is recommended to be used with this device.

Contact us if you need LRA's that operate below 100 hertz

Summary Of Specifications
Length (mm): 18.0
Width (mm): 12.0
Height (mm): 6.0
Rated Voltage (AC RMS): 2.0
Operating Voltage (AC RMS): 0.9 ~ 2.2
Rated Current MAX (mA): 230
Typical Current (mA): 191
Resonant Frequency: 120
Vibration Force (G): 2.00
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS Tarrif: 8501.10.4020
USA 25% Exemption: NONE


If you need samples,
please Contact Us.
Add To Favorite List

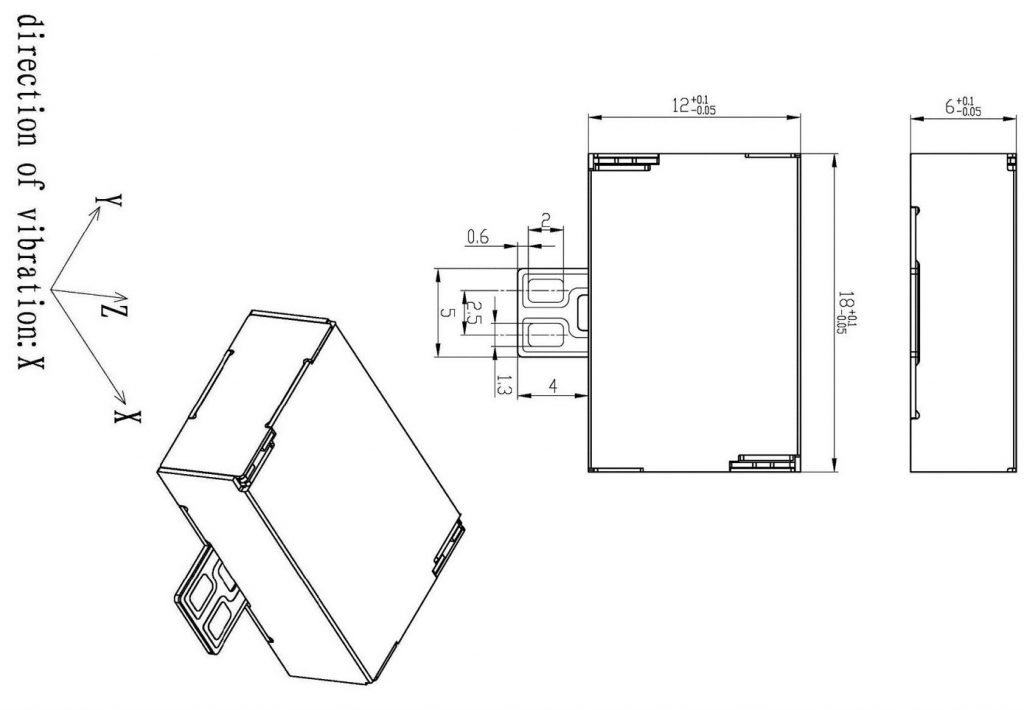

VL181206-120H LRA LINEAR VIBRATION MOTOR DRAWING

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

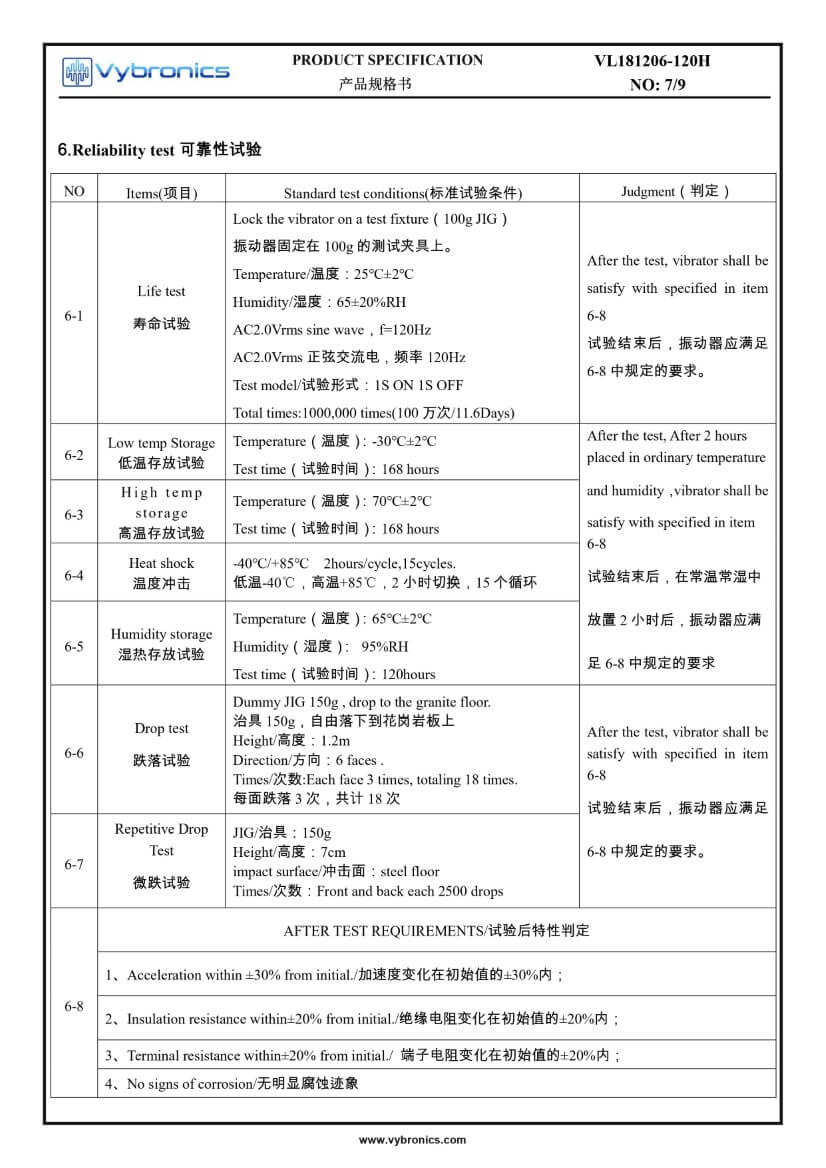

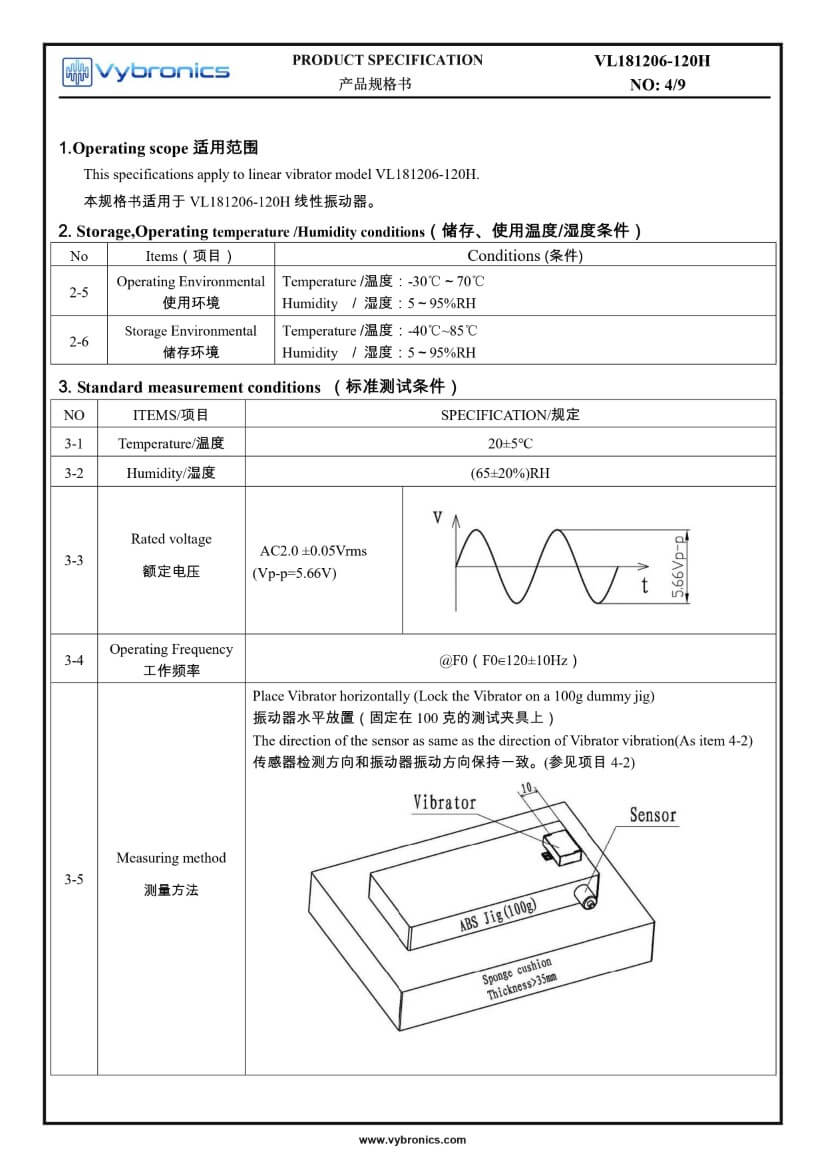

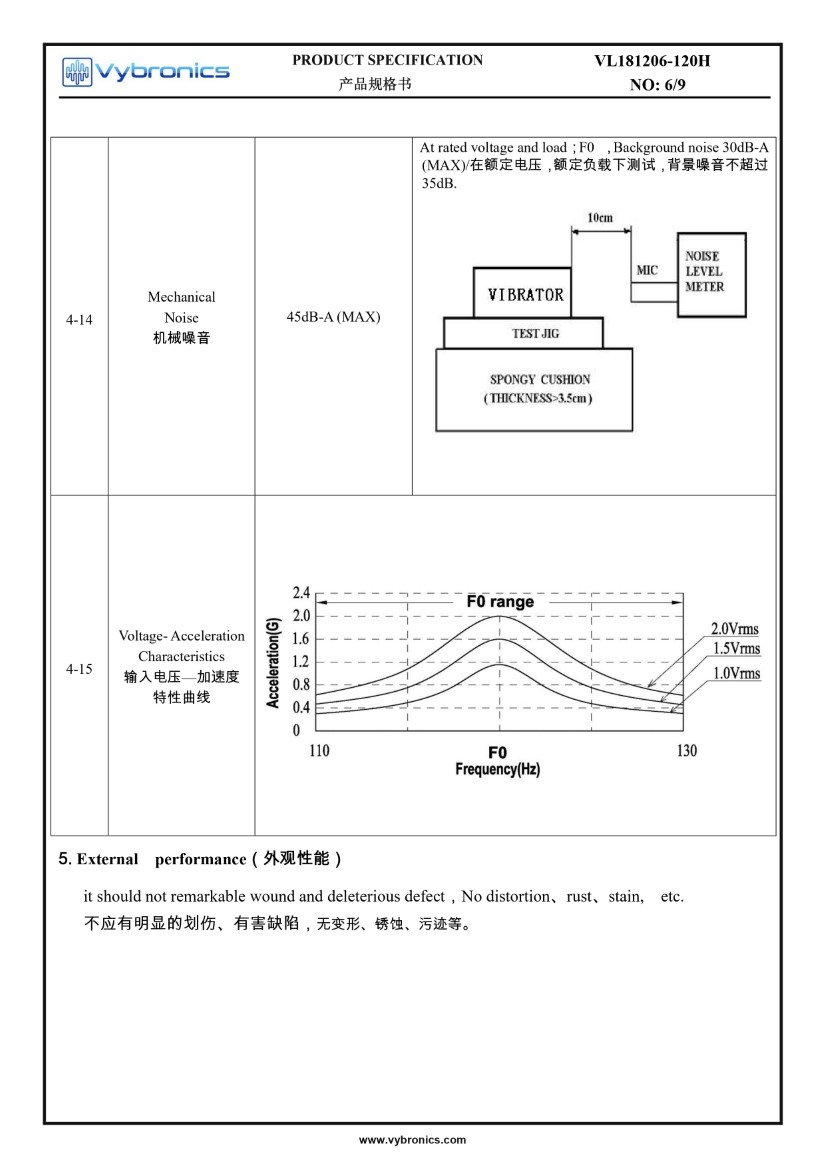

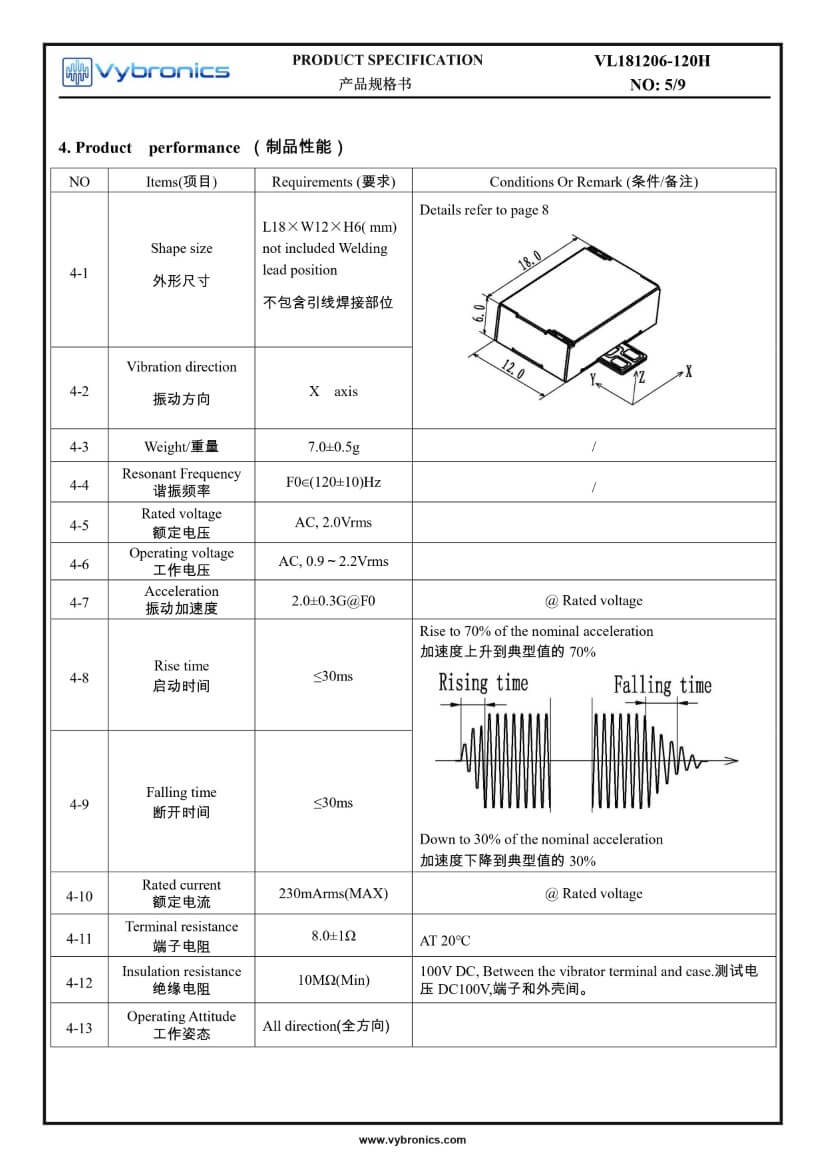

VL181206-120H LRA LINEAR VIBRATION MOTOR DATA 04VL181206-120H LRA LINEAR VIBRATION MOTOR DATA 05VL181206-120H LRA LINEAR VIBRATION MOTOR DATA 06VL181206-120H LRA LINEAR VIBRATION MOTOR DATA 07
