Vybronics VLV041235L-L20
Model Number: VLV041235L-L20

12 x 4 x 3.5 mm | 1.8 Vrms | 240hz | LRA Z-Axis

The  VLV041235L-L20 rectangular, Z-axis LRA can be used for a variety of haptic feedback applications.   This LRA is different than most rectangular LRA's which oscillate in the X plane, along the length of the device.  Like all LRA's this device is typically connected to a LRA  driver IC which produces the AC  drive signal for this device.  For orders of 2K pcs+, we can supply a custom wire length or add one of  connectors or one of your choosing.

Summary Of Specifications
Length (mm): 12.0
Width (mm): 4.0
Height (mm): 3.5
Rated Voltage (AC RMS): 1.8
Operating Voltage (AC RMS): 0.1 ~ 1.85
Rated Current MAX (mA): 60
Typical Current (mA): 47
Rise Time (ms) MAX *: 40
Fall Time (ms) MAX *: 60
Resonant Frequency: 240
Vibration Force (Grms): 1.60
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 50
Quantity - Master box: 2000
Size - Master Box: 25*21*11CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 551 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
Vybronics VLV041235L-L20 LRA LINEAR VIBRATION MOTOR Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

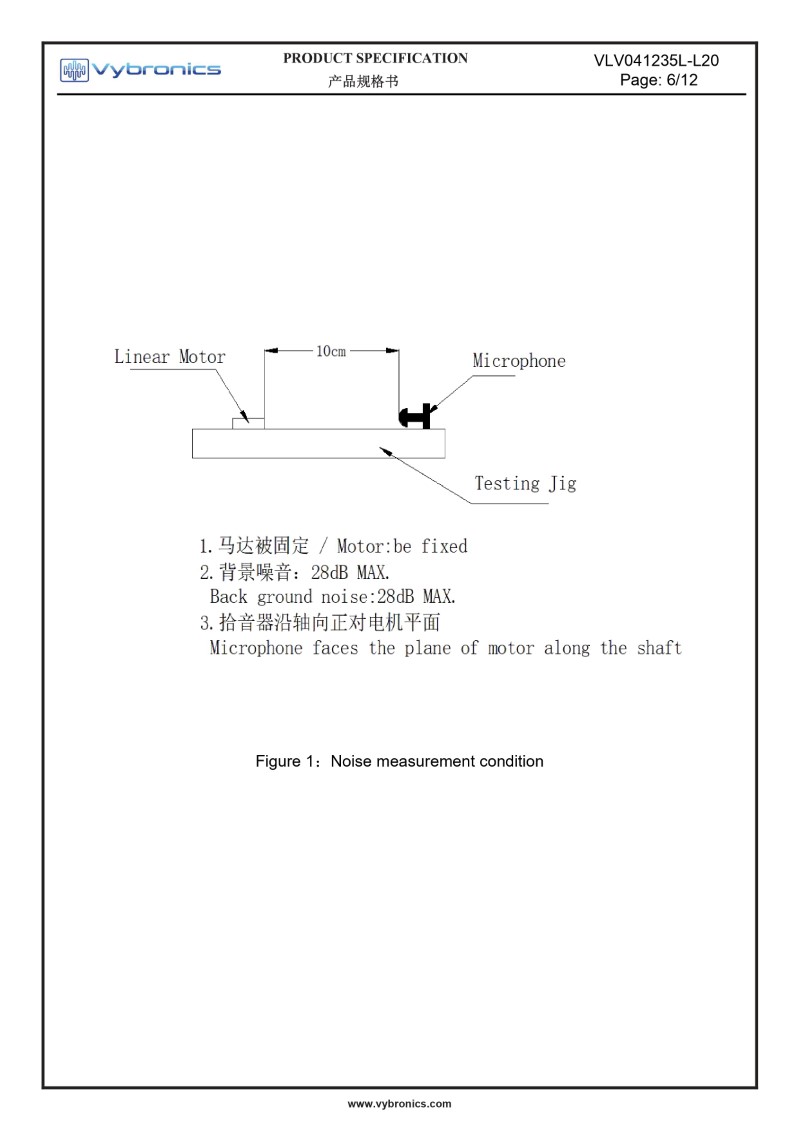

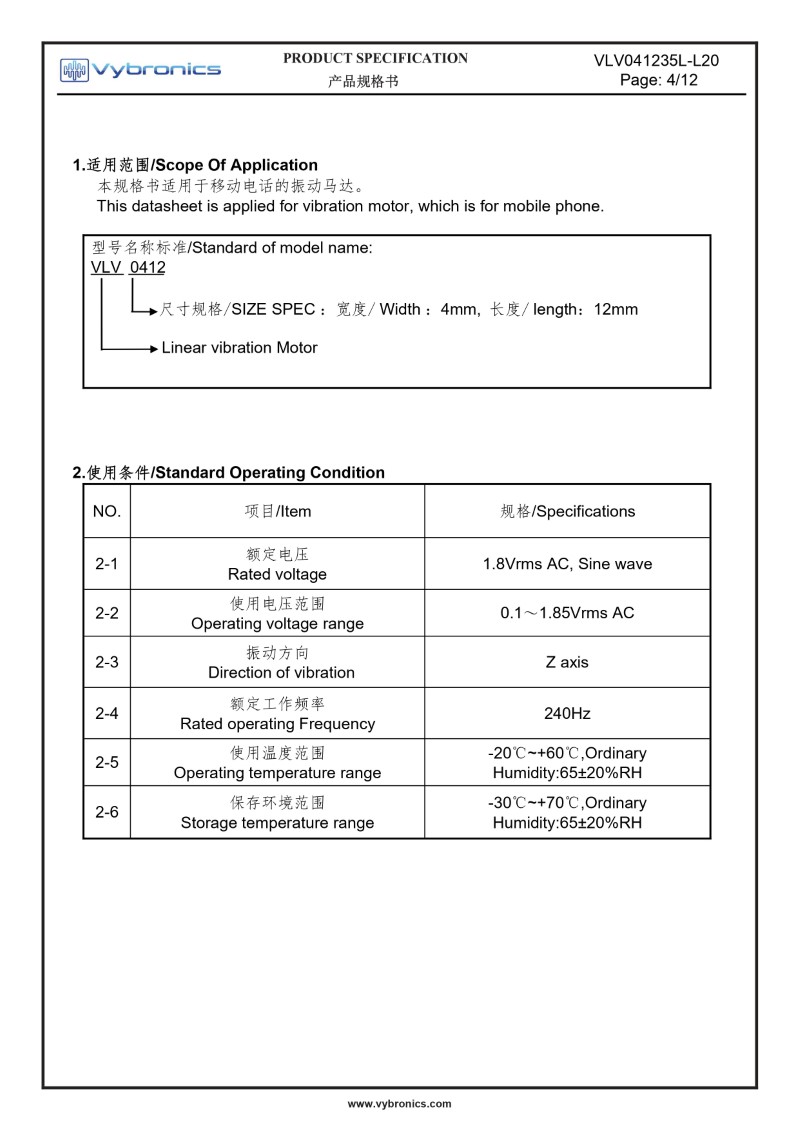

Vybronics VLV041235L-L20 LRA LINEAR VIBRATION MOTOR CURVEVybronics VLV041235L-L20 LRA LINEAR VIBRATION MOTOR Data 04Vybronics VLV041235L-L20 LRA LINEAR VIBRATION MOTOR Data 05Vybronics VLV041235L-L20 LRA LINEAR VIBRATION MOTOR Data 06Vybronics VLV041235L-L20 LRA LINEAR VIBRATION MOTOR Data 07Vybronics VLV041235L-L20 LRA LINEAR VIBRATION MOTOR Data 08
