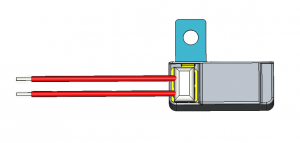

The VLV041035L-FP249-L15-TG3 has an Operating Temperature designed for Automotive use. These are produced on a production that is certified to IATF 16949. This LRA generates haptic feedback in the Z-axis and can be used for a variety of haptic feedback applications. Like all LRA's this device is typically connected to a LRA driver IC which produces the AC drive signal for this device.

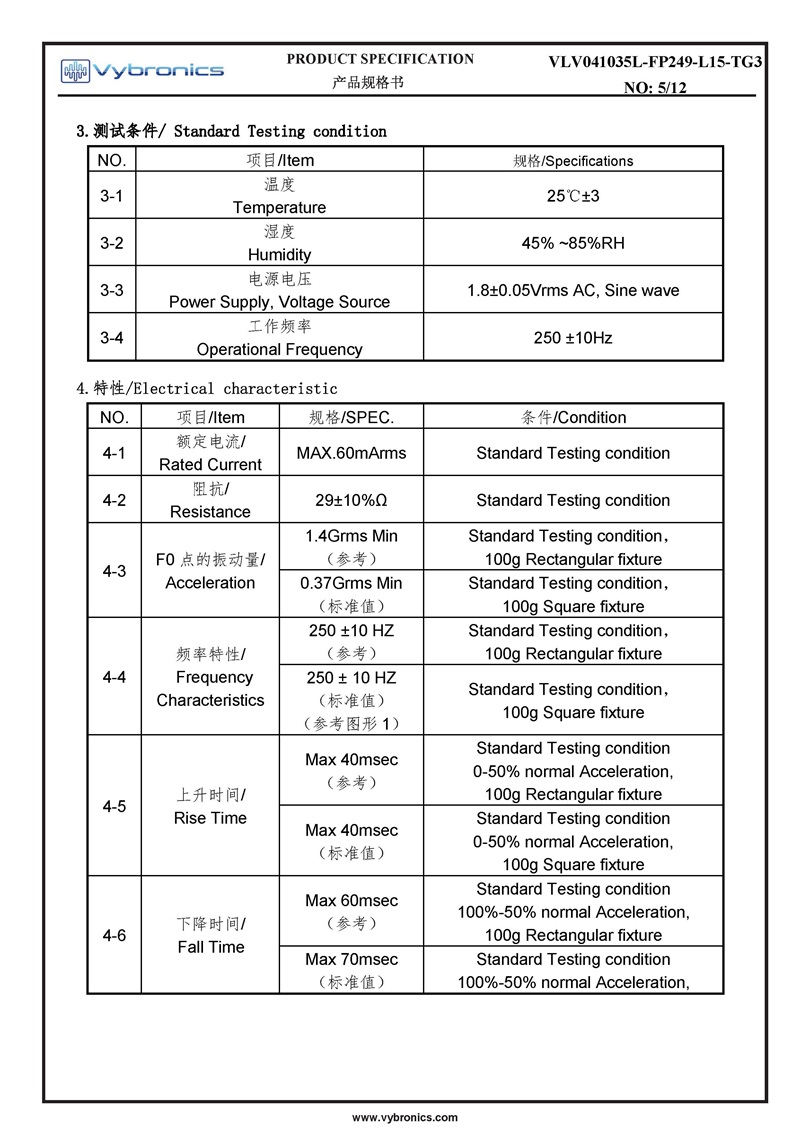

| Summary Of Specifications | |

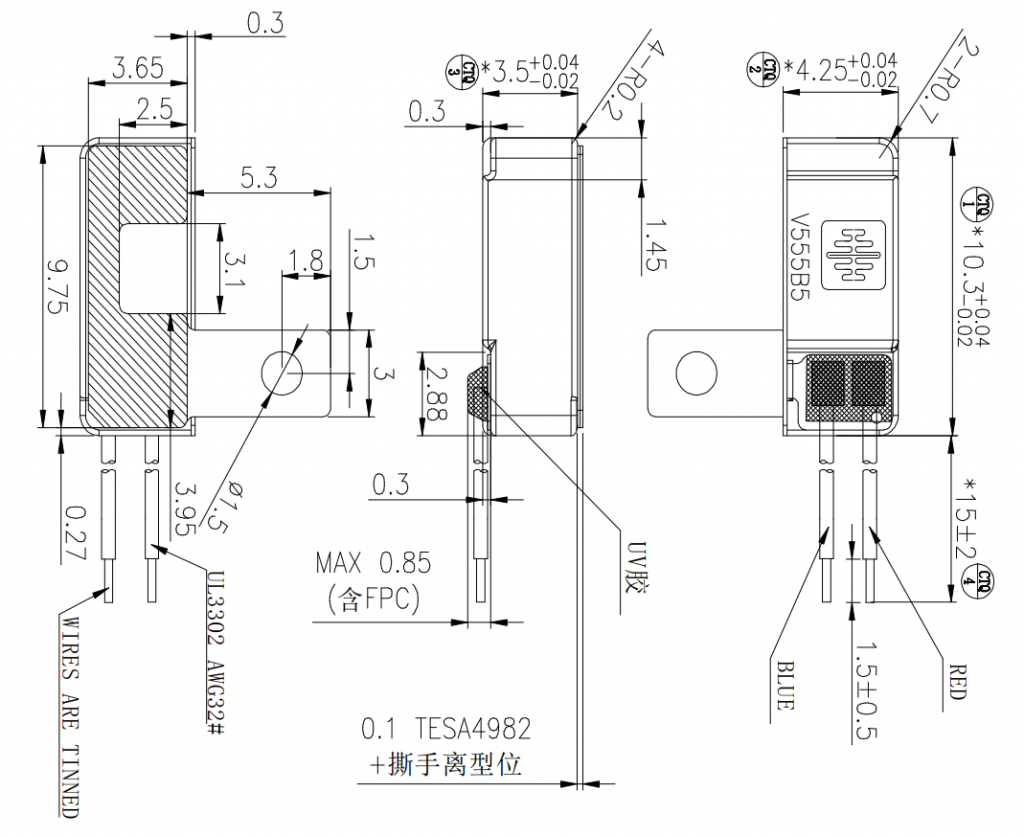

| Length (mm): | 10.0 |
| Width (mm): | 4.0 |
| Height (mm): | 3.5 |
| Rated Voltage (AC RMS): | 1.8 |
| Operating Voltage (AC RMS): | 0.1 ~ 1.85 |
| Rated Current MAX (mA): | 60 |
| Typical Current (mA): | 47 |
| Rise Time (ms) MAX *: | 40 |
| Fall Time (ms) MAX *: | 60 |
| Resonant Frequency: | 250 |
| Vibration Force (Grms): | 1.40 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | 45*28*18CM |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
