Vybronics VW0620AB001U
Model Number: VW0620AB001U

6 mm x 2.0 mm | 3 V | BLDC Coin Vibration Motor

The W0620AB001U BLDC coin vibrator motor is best suited for Hi-Rel applications or those with high duty cycles. A driver IC is built imbedded within the motor, so no external driver IC is required.  DC voltage maybe used like a normal brushed DC motor. This type of motor is approx.  twice the cost of comparably sized brush type counterpart.   If you do not require a Hi-Rel motor, consider using a standard brush type motor instead.    Voltage polarity must be observed or you will damage the internal IC driver.    This device operates on DC voltage only.   Do not use a PWM signal.  For MOQ: 2K pcs, we can supply custom lead lengths as well as connector.      Motor can be purchased without the Poron Foam pad, or with different thicknesses.   For MOQ: 5K pcs custom FPC's can be supplied.


CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BLDC
Diameter (mm): 6.0
Thickness (mm): 2.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 80
Typical Current (mA): 69
Rise Time (ms) MAX *: 70
Fall Time (ms) MAX *: 90
Rated Speed (rpm): 13000 MIN
Vibration Force (Grms): 0.35
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
USA HTS TARIFF: 8501.10.4040
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025

If you need samples,
please Contact Us.
Add To Favorite List

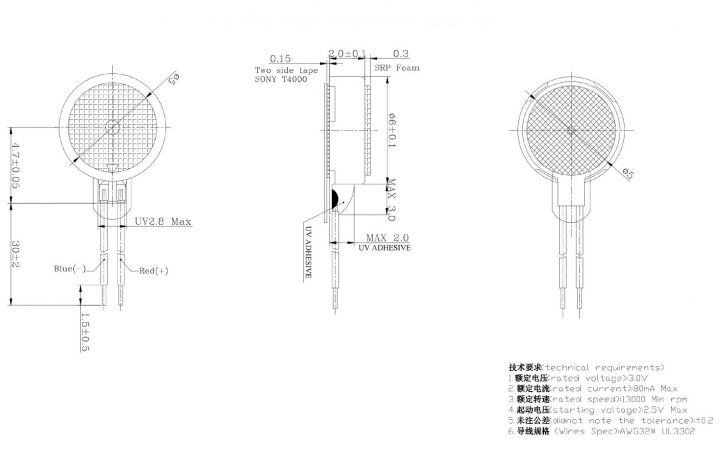

VW0620AB001U BLDC Brushless Coin Motor data 10

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.


VW0620AB001U BLDC Brushless Coin Motor data 03VW0620AB001U BLDC Brushless Coin Motor data 04VW0620AB001U BLDC Brushless Coin Motor data 05VW0620AB001U BLDC Brushless Coin Motor data 06VW0620AB001U BLDC Brushless Coin Motor data 07
