Vybronics VW0825AB001G
Model Number: VW0825AB001G
(old p/n: W0825AB001G)

8 mm x 2.5 mm | 3 V | BLDC Coin Vibration Motor

The VW0825AB001G brushless BLDC coin vibration motor is ideal for Hi-Rel applications or those with high duty cycles.  A driver IC is built imbedded within the motor, so no external driver IC is required. Apply DC voltage as you would a normal brushed DC motor. Voltage polarity must be observed or you will damage the internal driver IC. This device operates on DC voltage only. A PWM signal can not be used to drive BLDC motors. For MOQ: 2K pcs, we can supply custom lead lengths as well as connector. For MOQ: 5K pcs custom FPC's can be supplied.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BLDC
Diameter (mm): 8.0
Thickness (mm): 2.5
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.5~3.6
Rated Current MAX (mA): 90
Typical Current (mA): 80
Rise Time (ms) MAX *: 70
Fall Time (ms) MAX *: 90
Rated Speed (rpm): 14000
Vibration Force (Grms): 1.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 46*28.5*16CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4040
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 1,908 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VW0825AB001G (old p/n W0825AB001G) BLDC Bushless Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VW0825AB001G (old p/n W0825AB001G) BLDC Bushless Coin Vibration Motor Data 04VW0825AB001G (old p/n W0825AB001G) BLDC Bushless Coin Vibration Motor Data 05VW0825AB001G (old p/n W0825AB001G) BLDC Bushless Coin Vibration Motor Data 06VW0825AB001G (old p/n W0825AB001G) BLDC Bushless Coin Vibration Motor Data 07VW0825AB001G (old p/n W0825AB001G) BLDC Bushless Coin Vibration Motor Data 08

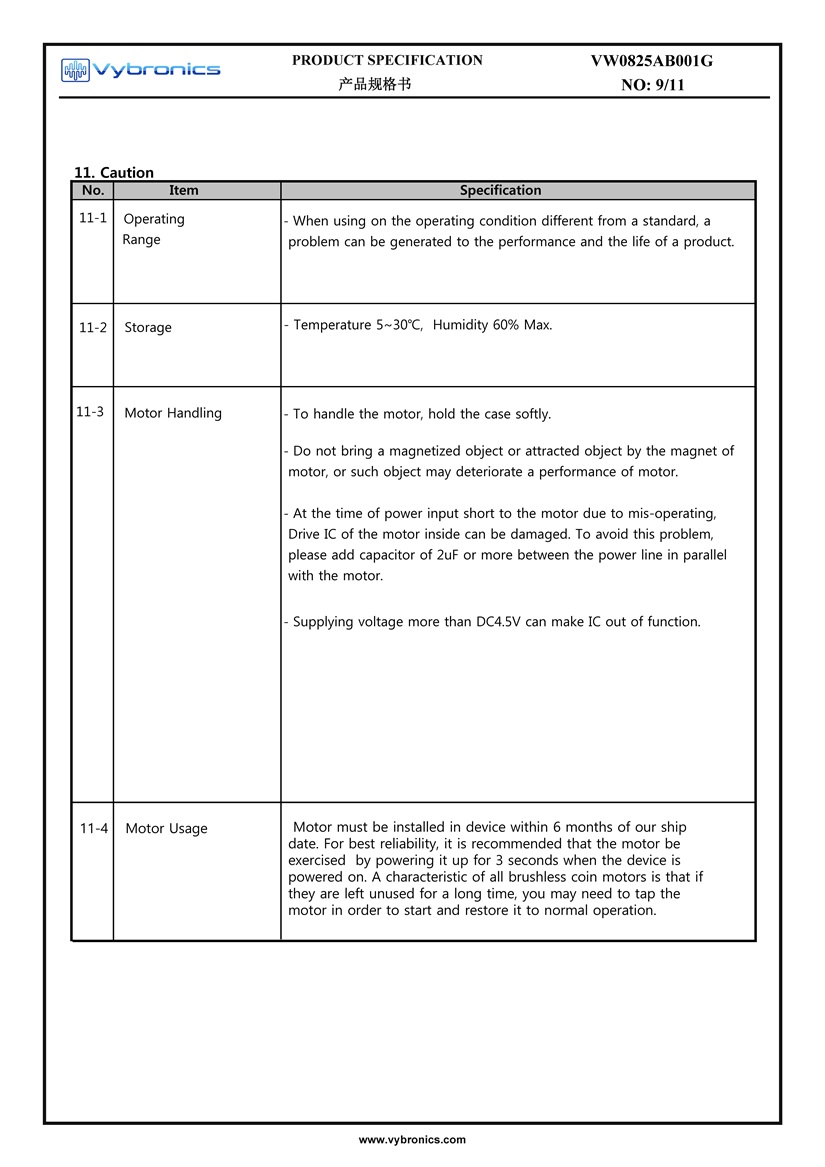

VW0825AB001G (old p/n W0825AB001G) BLDC Bushless Coin Vibration Motor Data 09
