Model Number: VW1234AB001U

12 mm x 3.4 mm | 3.7 V | BLDC Coin Vibration Motor

Our VW1234AB001U Brushless BLDC coin vibration motor produces 2.0 Grms (avg) and is our largest BLDC motor.   This motor is guaranteed for 1000 hours (MIN), see Sec. 6-1 of the data sheet for details.  Its an excellent choice for applications that have a high duty cycle as well as devices that require a very low MTBF / FIT.  A driver IC is integrated within the body of this BLDC vibration motor, allowing it to be powered by DC voltage, like a standard brush type motor.  Voltage polarity must be observed or you will risk damaging the driver IC.  This device operates on DC voltage only. A PWM signal can not be used to drive BLDC motors.  If desired, we can add connectors to the leads as well as supply custom lead lengths.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BLDC
Diameter (mm): 12.0
Thickness (mm): 3.4
Rated Voltage (Vdc): 3.7
Operating Voltage (Vdc): 3.0~4.5
Rated Current MAX (mA): 85
Typical Current (mA): 67
Rise Time (ms) MAX *: 70
Fall Time (ms) MAX *: 90
Rated Speed (rpm): 8500 MIN
Vibration Force (Grms): 2.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4040
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List
VW1234AB001U BLDC Brushless Coin Motor data 10

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

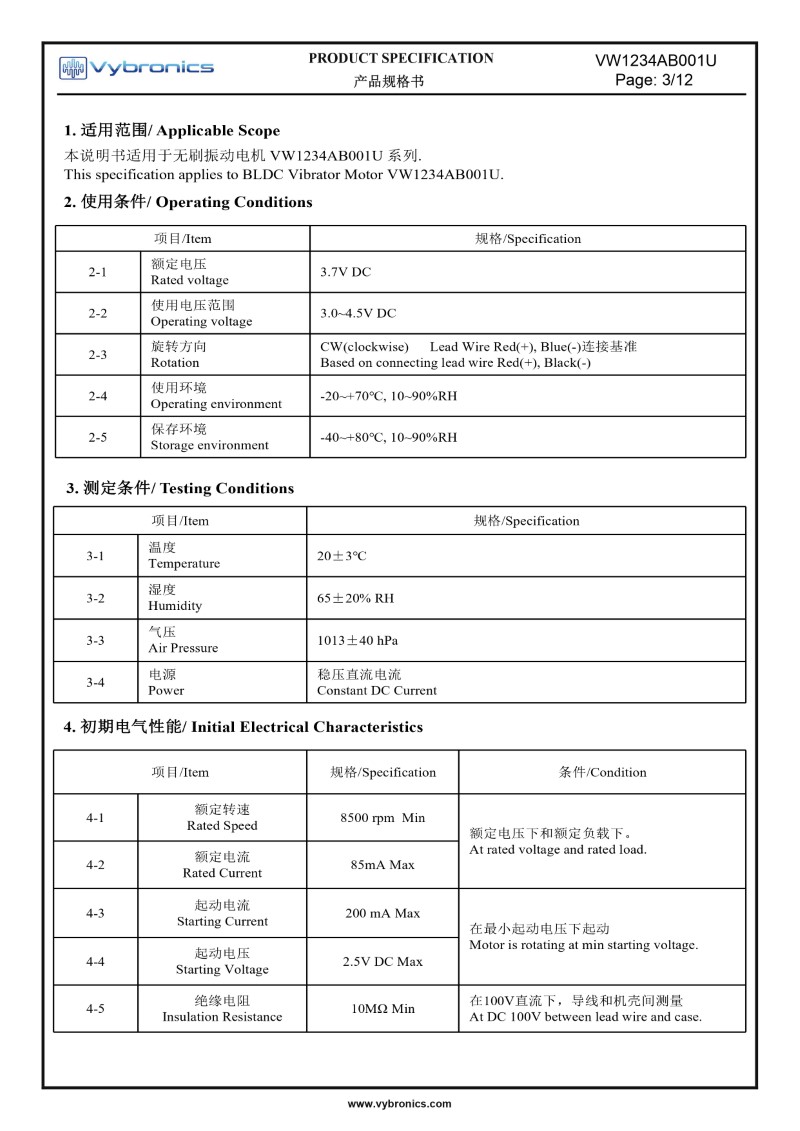

VW1234AB001U BLDC Brushless Coin Motor data 3VW1234AB001U BLDC Brushless Coin Motor data 4VW1234AB001U BLDC Brushless Coin Motor data 5VW1234AB001U BLDC Brushless Coin Motor data 6VW1234AB001U BLDC Brushless Coin Motor data 7VW1234AB001U BLDC Brushless Coin Motor data 9
