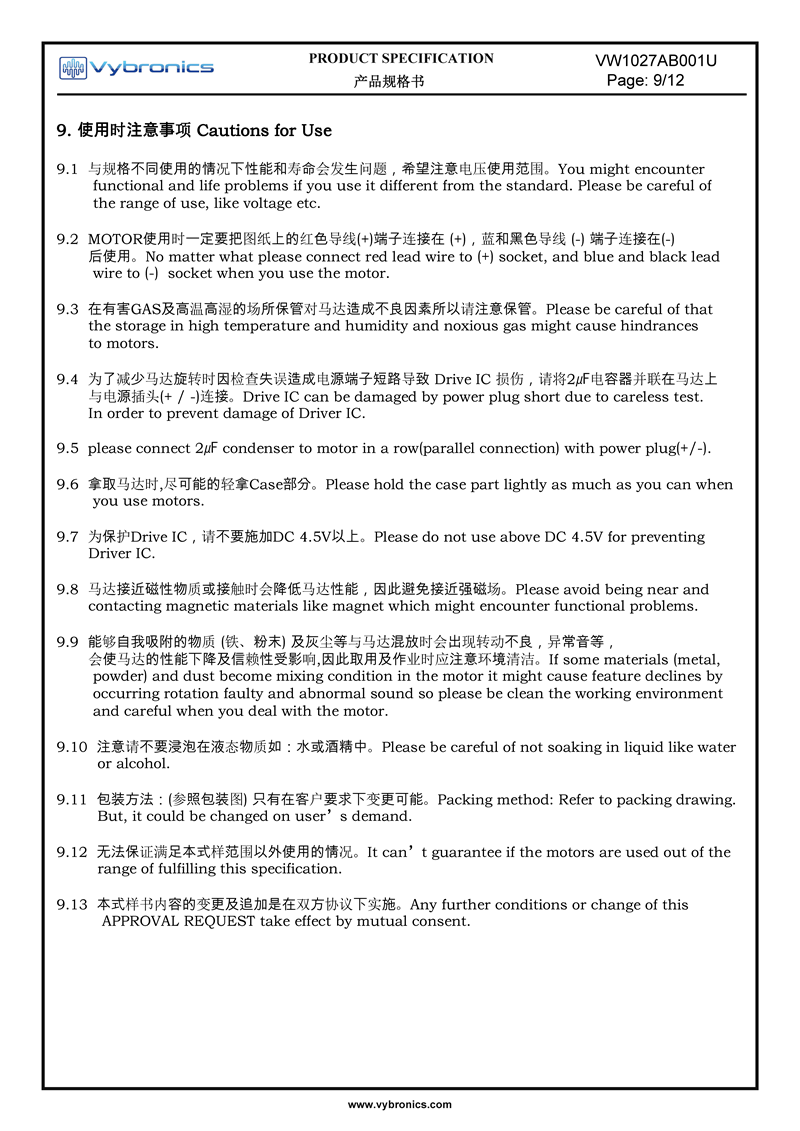

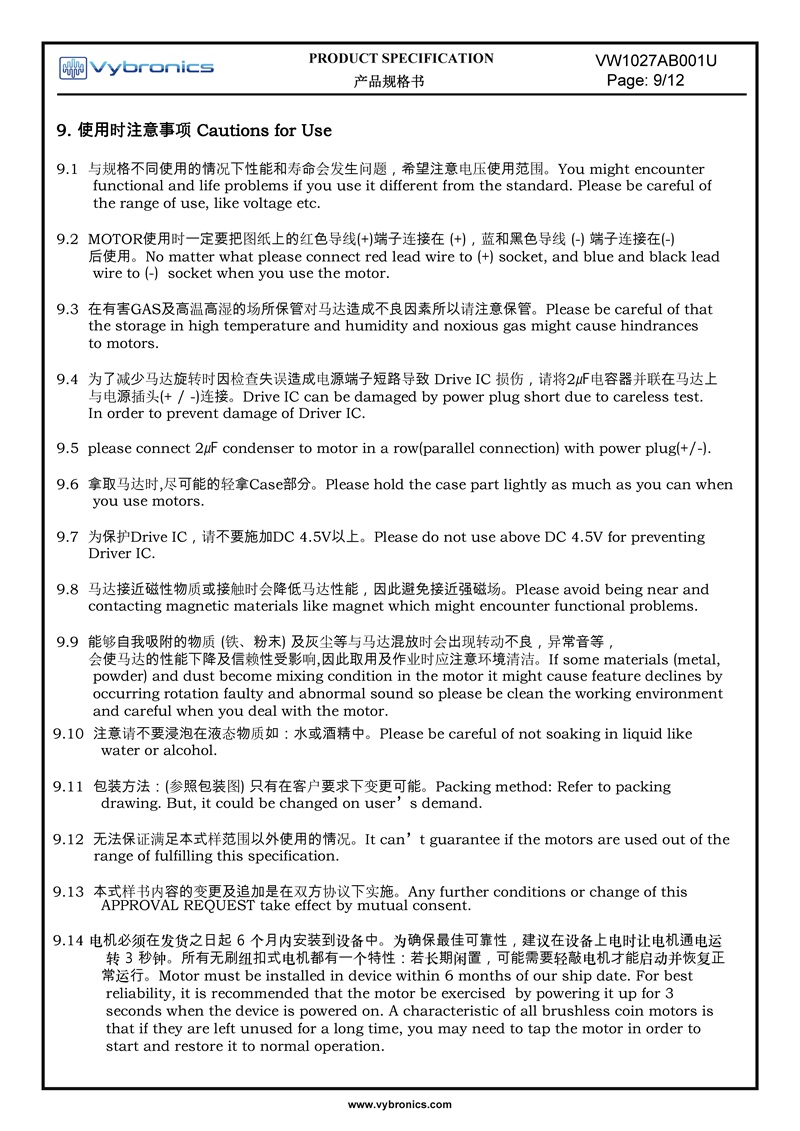

Our VW1027AB001U Brushless BLDC coin vibration motor produces 1.4 Grms (avg) and is our second largest BLDC motor. Its an excellent choice for applications that have a high duty cycle as well as devices that require a very low MTBF / FIT. A driver IC is integrated within the body of this BLDC vibration motor, allowing it to be powered by DC voltage, like a standard brush type motor. Voltage polarity must be observed or you will risk damaging the driver IC. This device operates on DC voltage only. A PWM signal can not be used to drive BLDC motors. If desired, we can add connectors to the leads as well as supply custom lead lengths.
CLICK HERE to see photos of how coin motors have been mounted in products.
| Summary Of Specifications | |
| Technology Type: | BLDC |
| Diameter (mm): | 10.0 |
| Thickness (mm): | 2.7 |
| Rated Voltage (Vdc): | 3.0 |
| Operating Voltage (Vdc): | 2.5~3.8 |
| Rated Current MAX (mA): | 80 |
| Typical Current (mA): | 50 |
| Rise Time (ms) MAX *: | 70 |
| Fall Time (ms) MAX *: | 90 |
| Rated Speed (rpm): | 13500 |
| Vibration Force (Grms): | 1.40 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 5000 |
| Size - Master Box: | 51*35*17.5 cm |
| Weight - Master Box: | 8.2KG |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4040 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
