KOTL JInlong G0832013D
Model Number: VG0832013D
(old p/n: G0832013D)

8mm x 3.2 mm | 1.8 Vrms | 235hz | LRA Z axis

The VG0832013D LRA coin vibration motor is identical to the VG0832012 except that is has double-stick tape added to facilitate mounting. It vibrates in the Z axis, which is perpendicular to the face of the vibration motor. As seen from the table below, it draws only 19 ma @ 0.6 V while producing a G force of 0.55, making it ideal for battery powered wearables. Rubber Poron foam pads, connectors and custom lead wire lengths are available. Custom FPC are also available for orders of 10K pcs+. If you need this motor, but with longer leads, please consider using the VG0832022D which has 100mm leads.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: LRA
Diameter (mm): 8.0
Thickness (mm): 3.25
Rated Voltage (Vac RMS): 1.8
Operating Voltage (Vac RMS): 0.1~1.85
Rated Current MAX (mA): 80
Typical Current (mA): 58
Rise Time (ms) MAX *: 50
Fall Time (ms) MAX *: 80
Resonant Frequency: 235
Vibration Force (G): 1.80
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: 7.0KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VG0832013D (old p/n G0832013D) LRA coin vibration motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

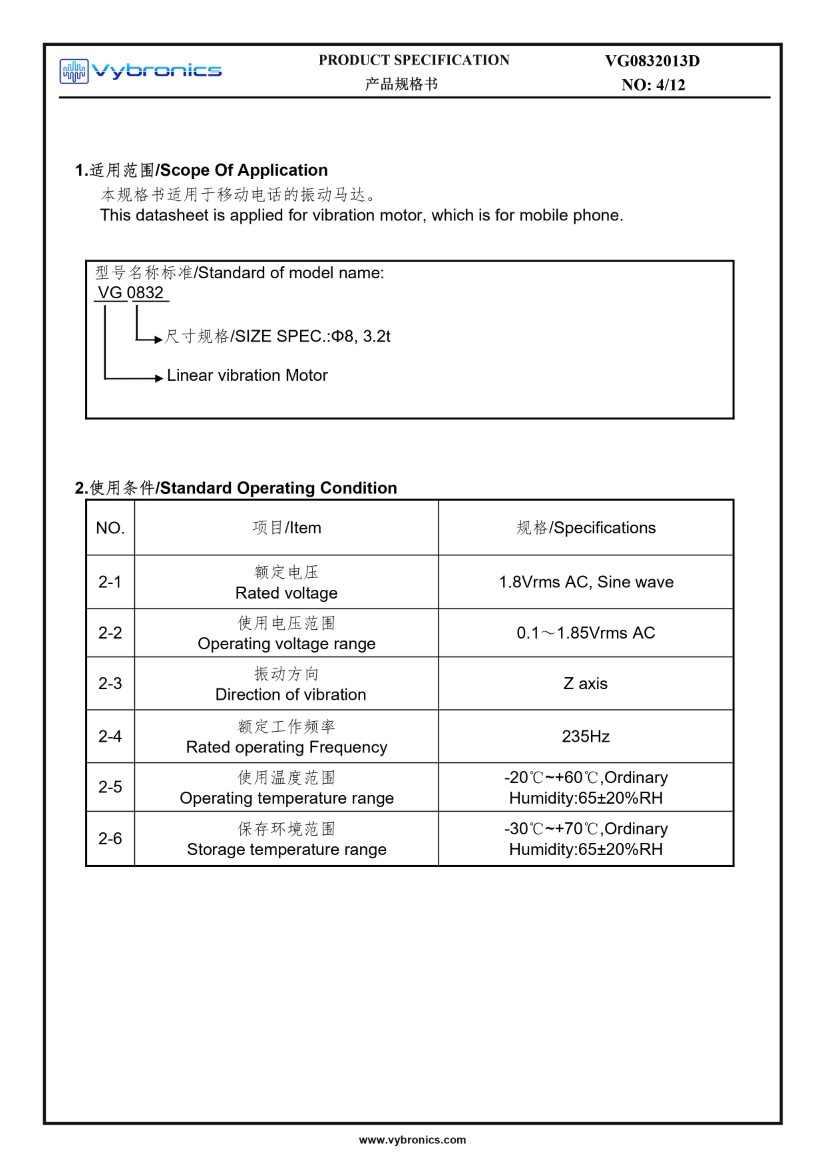

VG0832013D (old p/n G0832013D) LRA coin vibration motor Data 04VG0832013D (old p/n G0832013D) LRA coin vibration motor Data 05VG0832013D (old p/n G0832013D) LRA coin vibration motor Data 06VG0832013D (old p/n G0832013D) LRA coin vibration motor Data 07VG0832013D (old p/n G0832013D) LRA coin vibration motor Data 08
