Vybronics VG0832022D
Model Number: VG0832022D
(old p/n: G0832022D)

8 mm x 3.2 mm | 1.8 Vrms | 235hz | LRA Z axis

The VG0832022D LRA coin vibration motor is identical to the VG0832013D, except that is longer 100 mm wire leads. It vibrates in the Z axis, which is perpendicular to the face of the vibration motor. As seen from the table below, it draws only 19 ma @ 0.6 V while producing a G force of 0.55, making it ideal for battery powered wearables. Rubber Poron foam pads, connectors and custom lead wire lengths are available. Custom FPC are also available for minimum orders of 10K pcs. Tooling fees apply.


CLICK HERE to download the configuration file for RENESAS DA728x-EVAL-KIT.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: LRA
Diameter (mm): 8.0
Thickness (mm): 3.25
Rated Voltage (Vac RMS): 1.8
Operating Voltage (Vac RMS): 0.1~1.85
Rated Current MAX (mA): 80
Typical Current (mA): 58
Rise Time (ms) MAX *: 50
Fall Time (ms) MAX *: 80
Resonant Frequency: 235
Vibration Force (Grms): 1.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 25
Quantity - Master box: 1000
Size - Master Box: 45*28*19CM
Weight - Master Box: 3.6KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4020
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 0 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VG0832022D (old p/n G0832022D) LRA coin vibration motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

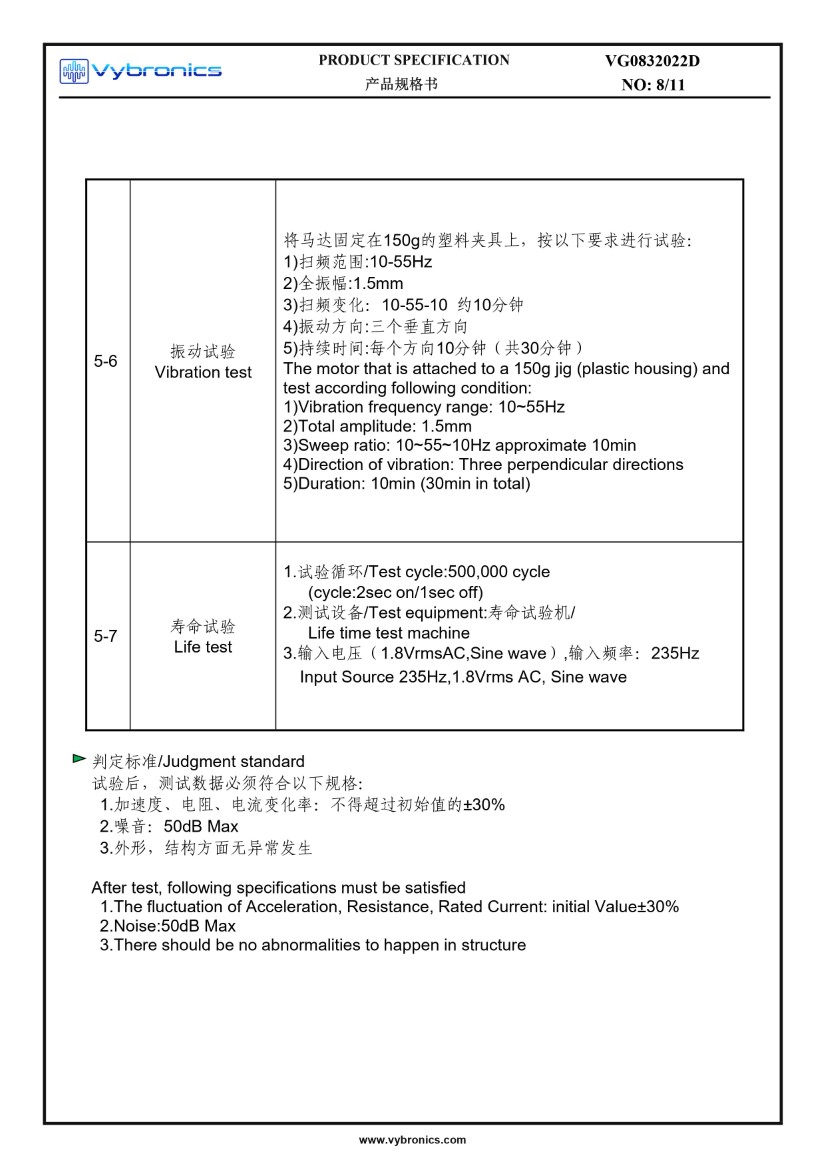

VG0832022D (old p/n G0832022D) LRA coin vibration motor data 04VG0832022D (old p/n G0832022D) LRA coin vibration motor data 05VG0832022D (old p/n G0832022D) LRA coin vibration motor data 06VG0832022D (old p/n G0832022D) LRA coin vibration motor data 07VG0832022D (old p/n G0832022D) LRA coin vibration motor data 08
