Vybronics VC0625B002L
Model Number: VC0625B002L
(old p/n: C0625B002L)

6 mm x 2.5 mm | 2.5 V | Coin Vibration Motor

At  6mm, the VC0625B002L is the smallest diameter, brush type, coin vibration motor on the market. Its ideal for light weight wearable devices such as fitness trackers and smart watches. As this coin ERM vibration motor is relatively expensive, we recommend you use this motor only if your design cannot utilize one of our lower priced 8mm or 10mm diameter coin vibration motors.   Please note that this part has double stick (PSA) adhesive tape on the bottom of the motor case.  If you do not need this, please order  VC0625B001L .  If you require a longer lead wire length, or connectors to be added, after sample approval, we require a 2000 pcs minimum order.


CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 6.0
Thickness (mm): 2.5
Rated Voltage (Vdc): 2.5
Operating Voltage (Vdc): 2.0~3.5
Rated Current MAX (mA): 100
Typical Current (mA): 42
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 10000 MIN
Vibration Force (Grms): 0.20
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 0 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VC0625B002L (old p/n C0625B002L) Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

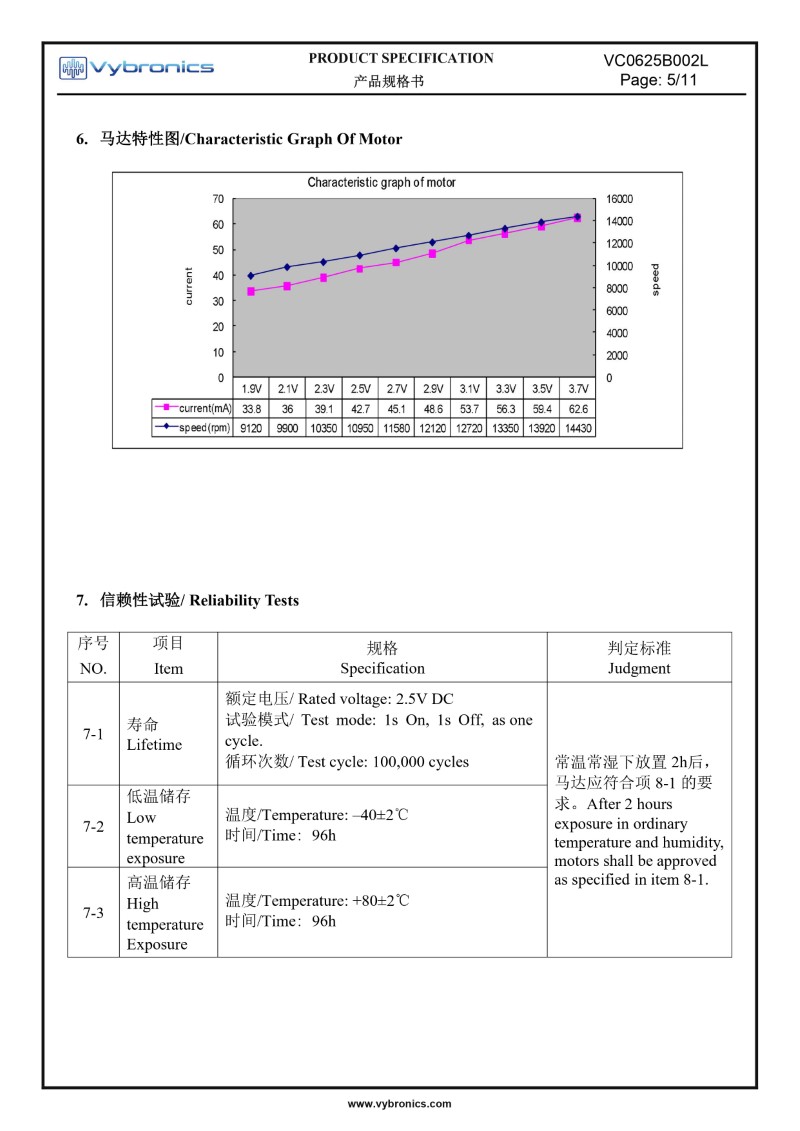

VC0625B002L (old p/n C0625B002L) Coin Vibration Motor Data 03VC0625B002L (old p/n C0625B002L) Coin Vibration Motor Data 04VC0625B002L (old p/n C0625B002L) Coin Vibration Motor Data 05VC0625B002L (old p/n C0625B002L) Coin Vibration Motor Data 06VC0625B002L (old p/n C0625B002L) Coin Vibration Motor Data 07
