Vybronics VC0720B001F
Model Number: VC0720B001F
(old p/n: C0720B001F)

7 mm x 2 mm | 3 V | Coin Vibration Motor

Measuring only 7 mm x 2 mm the C0720B001 is one of the smallest flat coin vibration motors available.  It is designed for ease of connection to the PCB.   Its uses a "double sided"   FPC  with contact pads facing the PCB  that allow it to be soldered directly to the PCB.    In mass production, a "hot bar soldering" machine may be used to efficiently solder the FPC to the PCB.   Contact us if you would like to use this unique FPC with another one of our coin vibration motors.   It was specifically designed for wearable devices and has won wide acceptance by major industry players in the fitness tracker and medical device markets. As this motor is relatively expensive, we recommend you use this motor only if your design cannot utilize one of our lower priced 8mm or 10mm diameter flat vibration motors. If purchased in minimum lots of 10K pcs we can supply it with a custom FPC (flexible printed circuit). If you require adhesive on the rear of this flat vibration motor, we can supply it with 3M 467 which will add 0.05 mm to the overall thickness of the motor. Order part number VC0720B013F if you need this motor with double stick tape adhesive.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 7.0
Thickness (mm): 2.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 85
Typical Current (mA): 53
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 10000
Vibration Force (Grms): 0.80
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: 3.9KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List

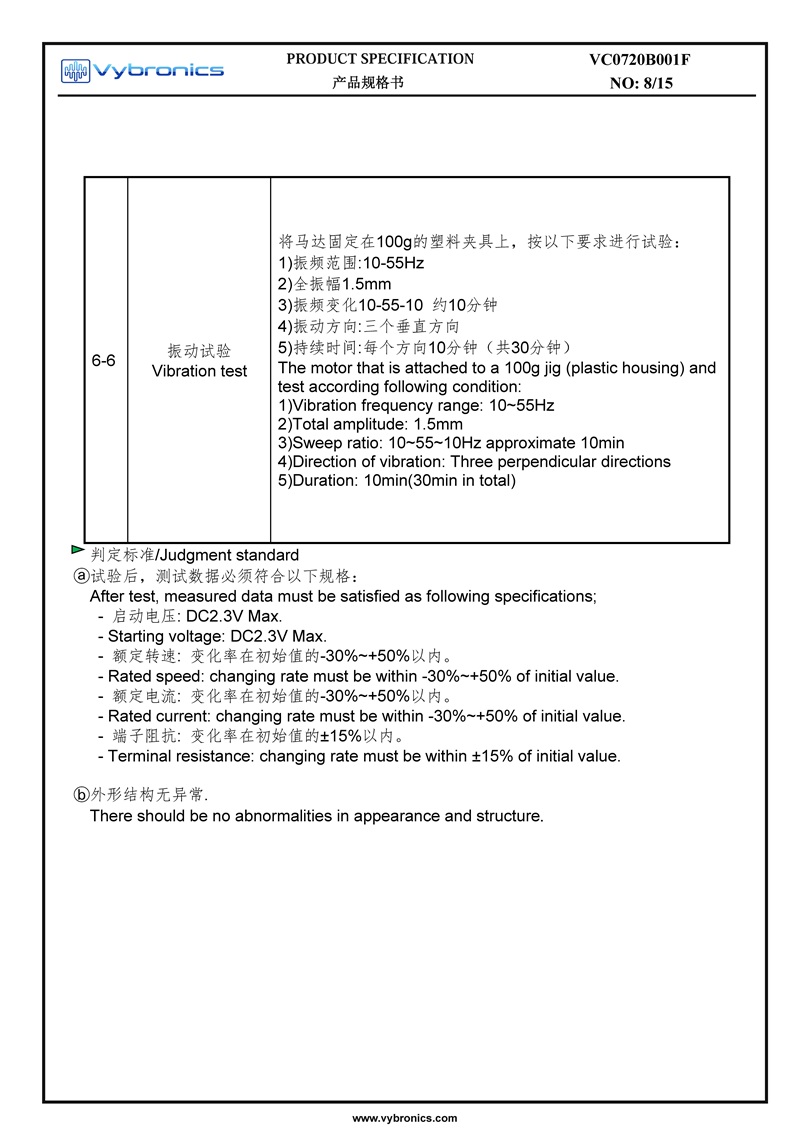

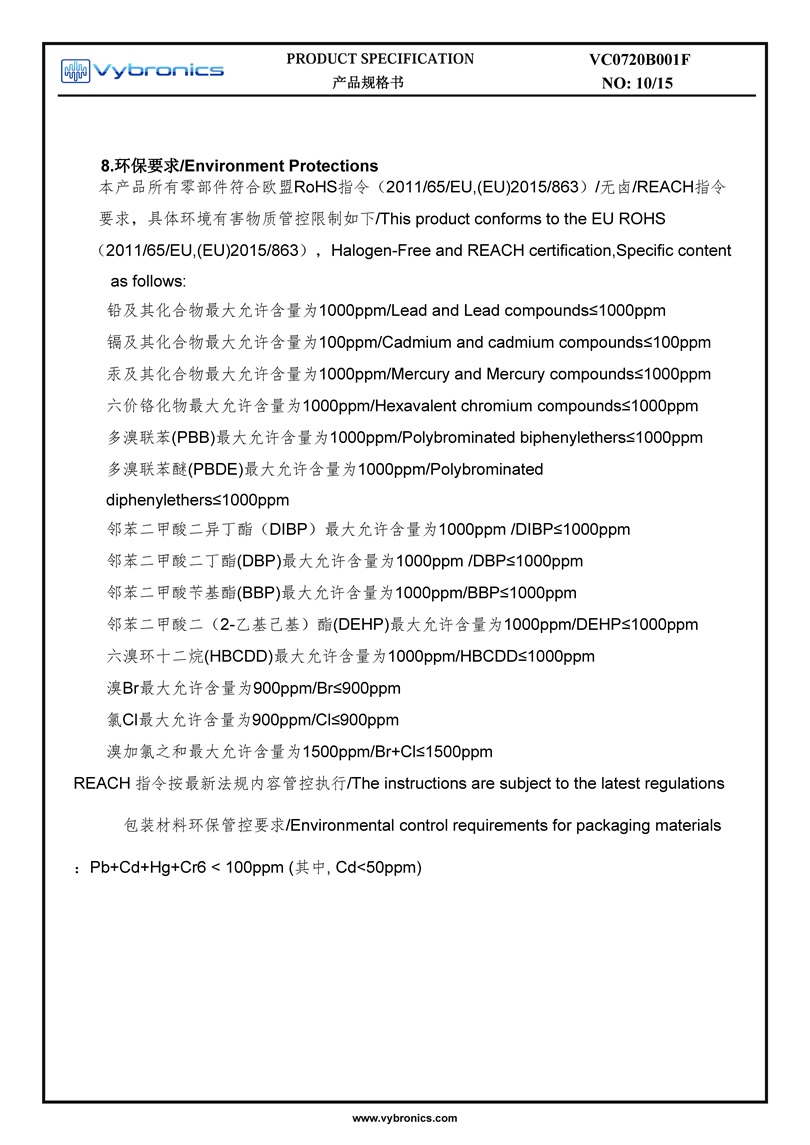

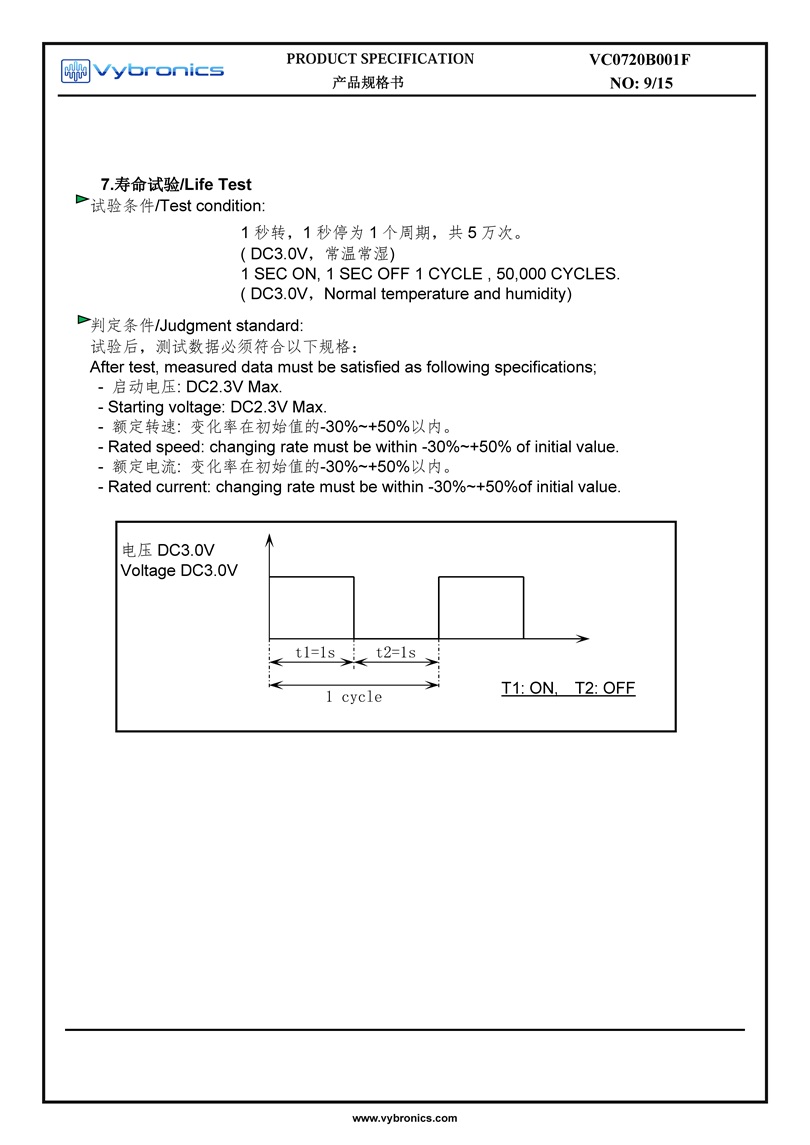

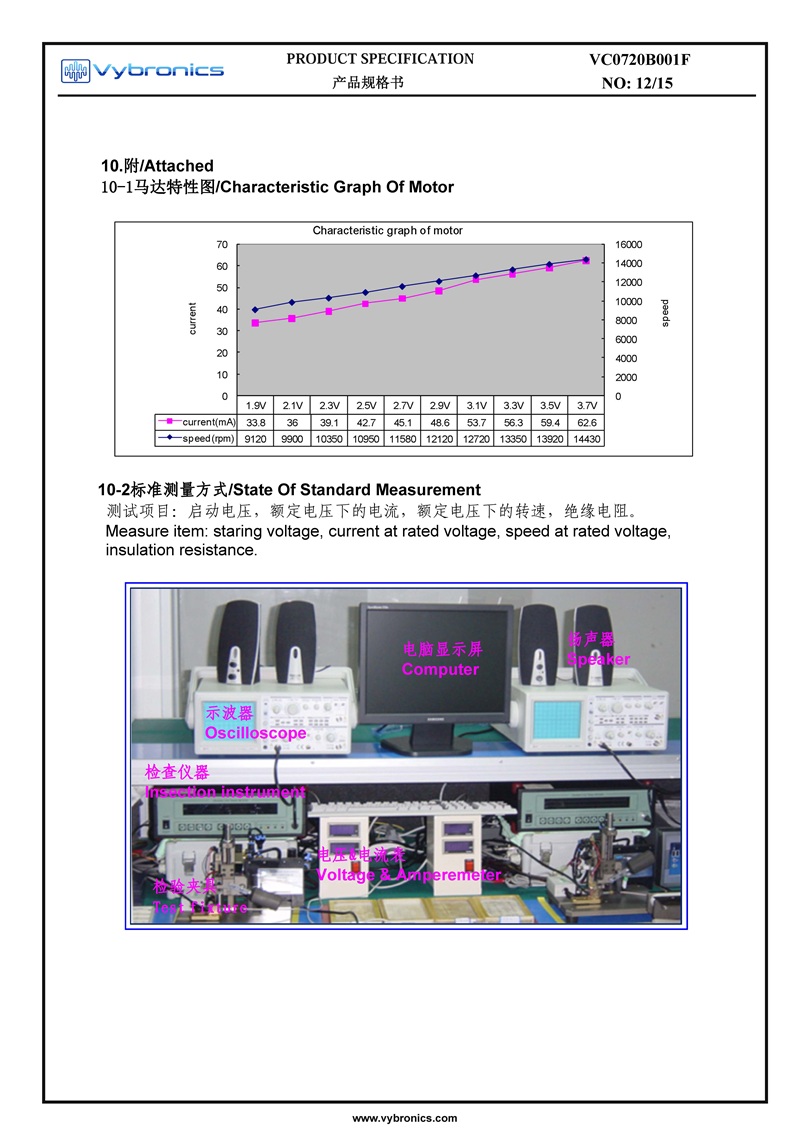

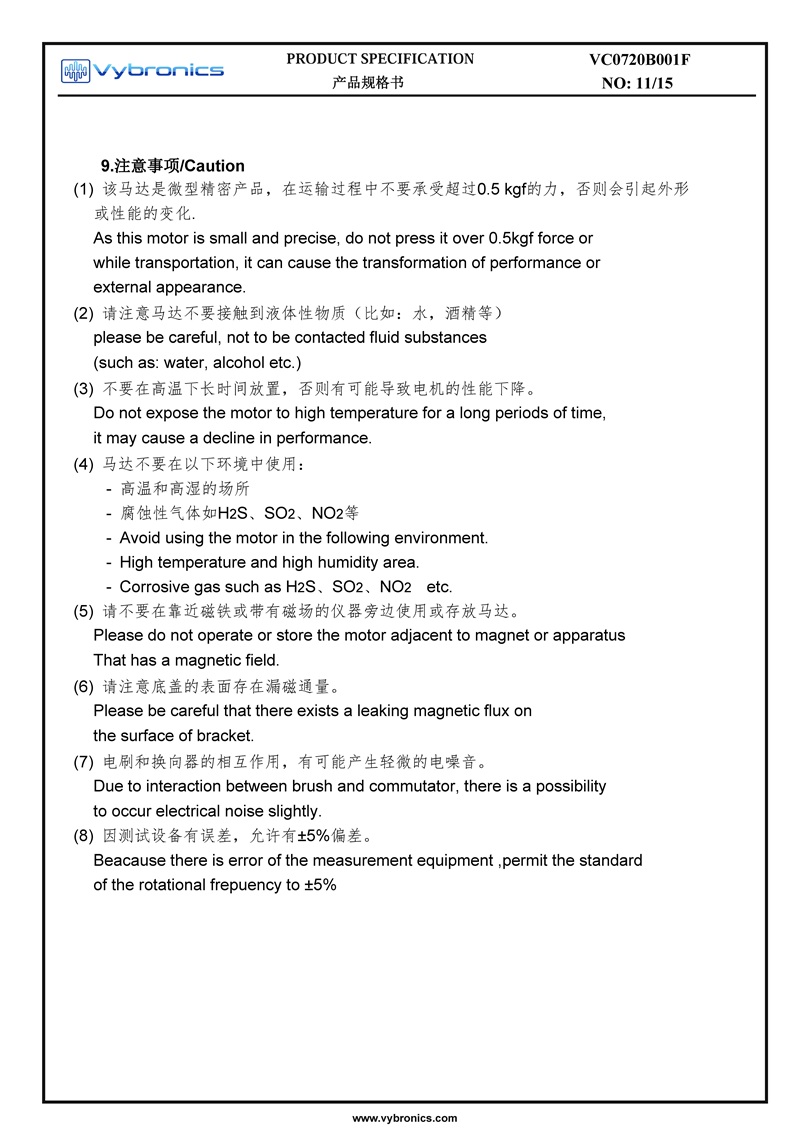

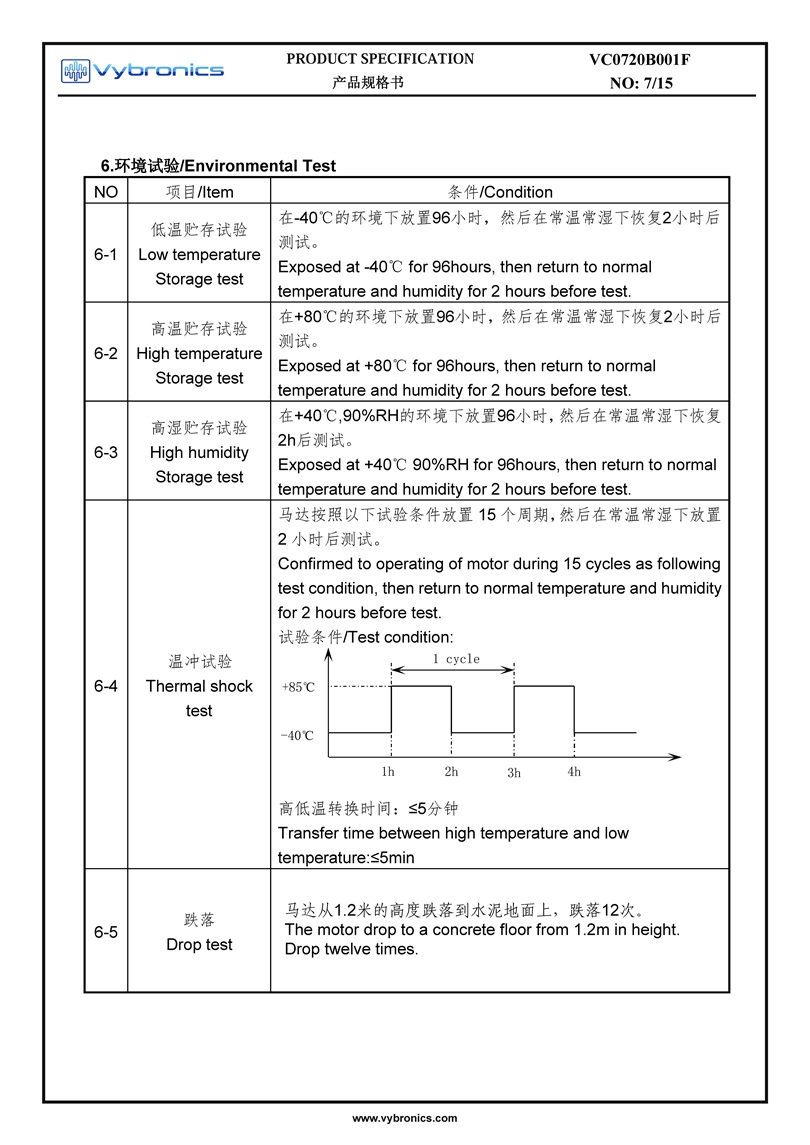

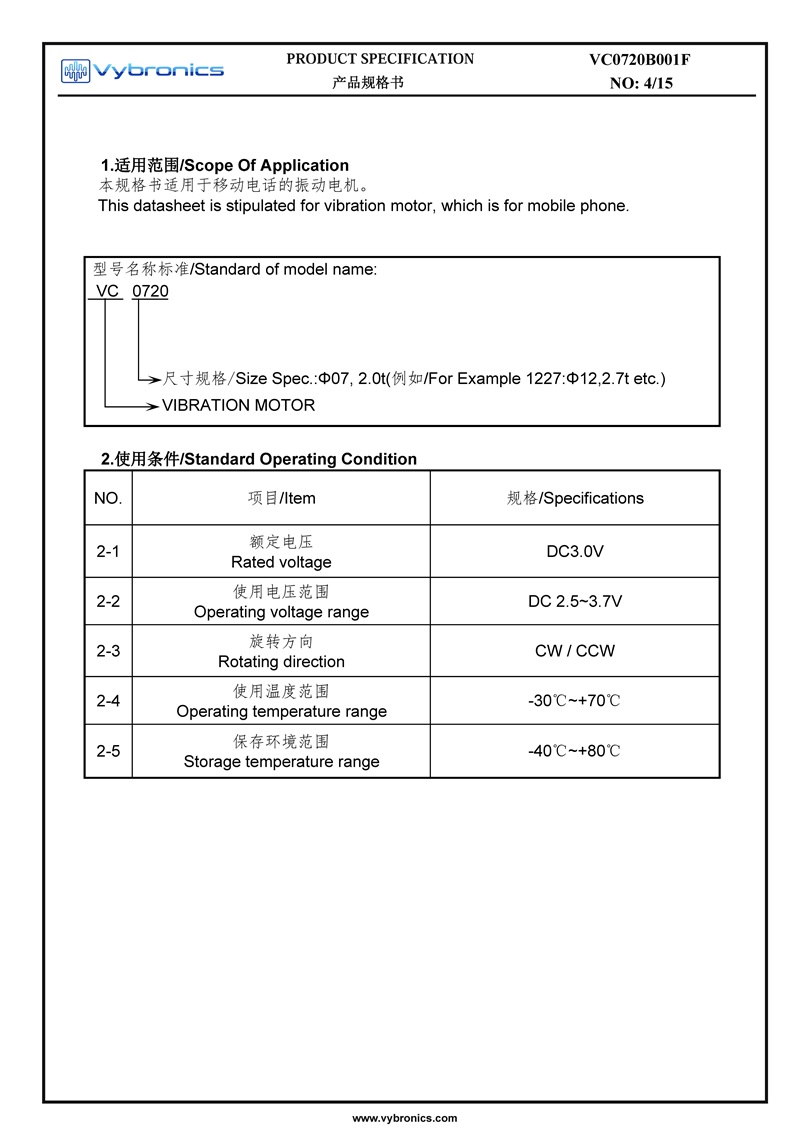

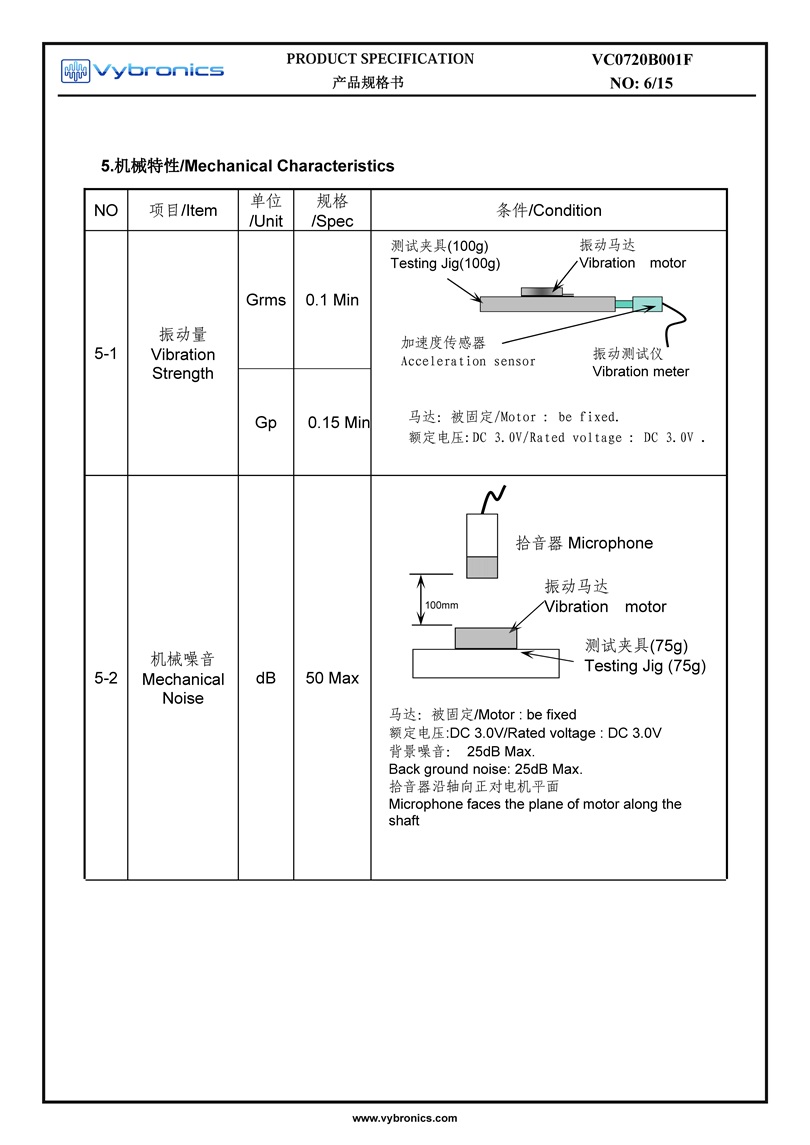

VC0720B001F (old P/N C0720B001F) Smallest Coin Vibration Motor with Brushes drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

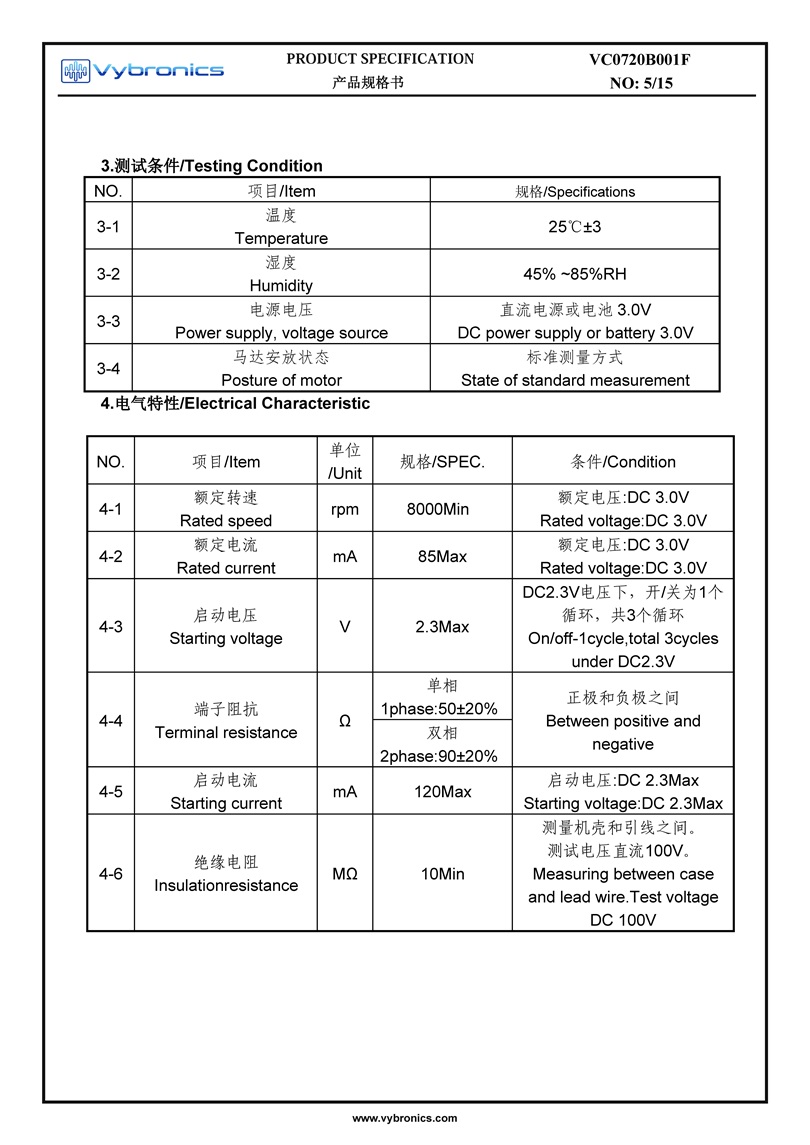

VC0720B001F (old P/N C0720B001F) Smallest Coin Vibration Motor with Brushes data 04VC0720B001F (old P/N C0720B001F) Smallest Coin Vibration Motor with Brushes data 05VC0720B001F (old P/N C0720B001F) Smallest Coin Vibration Motor with Brushes data 06
