Vybronics VC0720B003D
Model Number: VC0720B003D
(old p/n: C0720B003D)

7 mm x 2 mm | 3 V | Coin Vibration Motor

The VC0720B003D coin vibration motor is similar to our VC0720B001F, but has no wires leads. Only the bare pads of the flex circuit are exposed. This will allow for connecting a custom FPC or a cable assembly at a vendor of your choosing. We can also perform these services as well. The size of these pads are too small to mate with PCB mounted springs / pogo pins.  We can also customize this with an FPC of your design.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 7.0
Thickness (mm): 2.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 80
Typical Current (mA): 49
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 10000 MIN
Vibration Force (Grms): 0.30
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: Call us
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025

If you need samples,
please Contact Us.
Add To Favorite List
VC0720B003D (old p/n C0720B003D) coin vibration motor drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

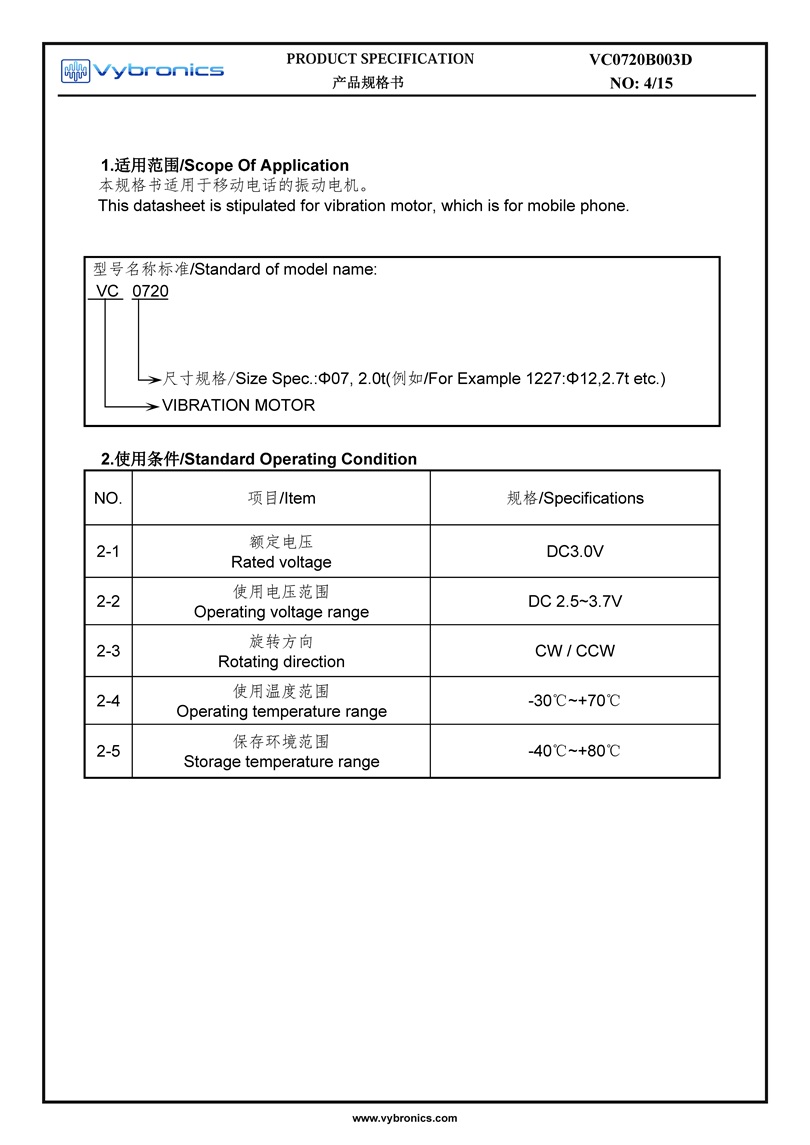

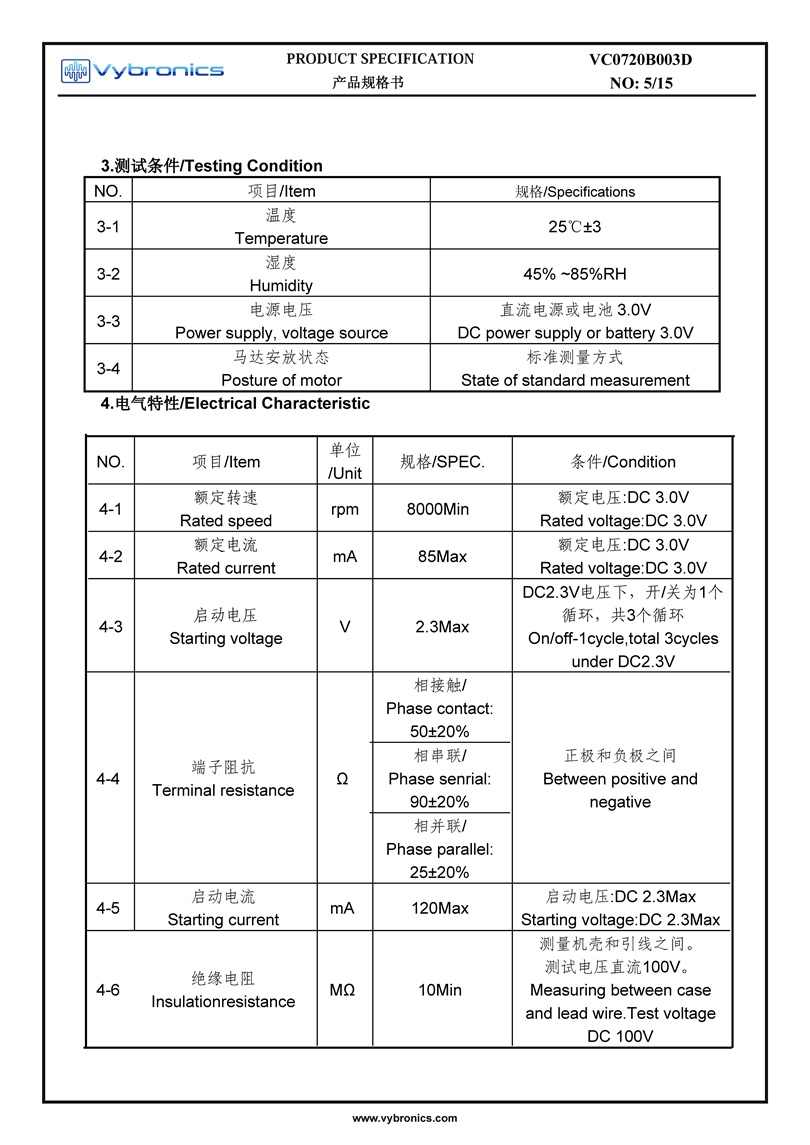

VC0720B003D (old p/n C0720B003D) coin vibration motor data 04VC0720B003D (old p/n C0720B003D) coin vibration motor data 05VC0720B003D (old p/n C0720B003D) coin vibration motor data 06
