Vybronics VC0820B006F
Model Number: VC0820B006F
(old p/n: C0820B006F)

8 mm x 2.1 mm | 3 V | Coin Vibration Motor

Measuring only 8 mm x 2 mm the VC0820B006F is our smallest diameter 8mm, brush type,  flat vibration motor. This motor is supplied with a self adhesive tape which can be used to secure the motor to your PCB or the inner wall of your products housing. It can be ordered without it if not needed for your application. This motor is available with wire leads, however, we can add on our standard connectors to the wire leads. If purchased in minimum lots of 10K pcs we can supply it with a custom FPC (flexible printed circuit). The FPC can be connected to your PCB by “hot bar soldering” or it can mate with pogo pins placed on your PCB.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 8.0
Thickness (mm): 2.1
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 85
Typical Current (mA): 61
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 10000 MIN
Vibration Force (Grms): 0.30
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: 5.9KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025
Available from
DigiKey Logo
QTY In Stock: 960 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
VC0820B006F (old p/n C0820B006F) Coin Vibration Motor drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

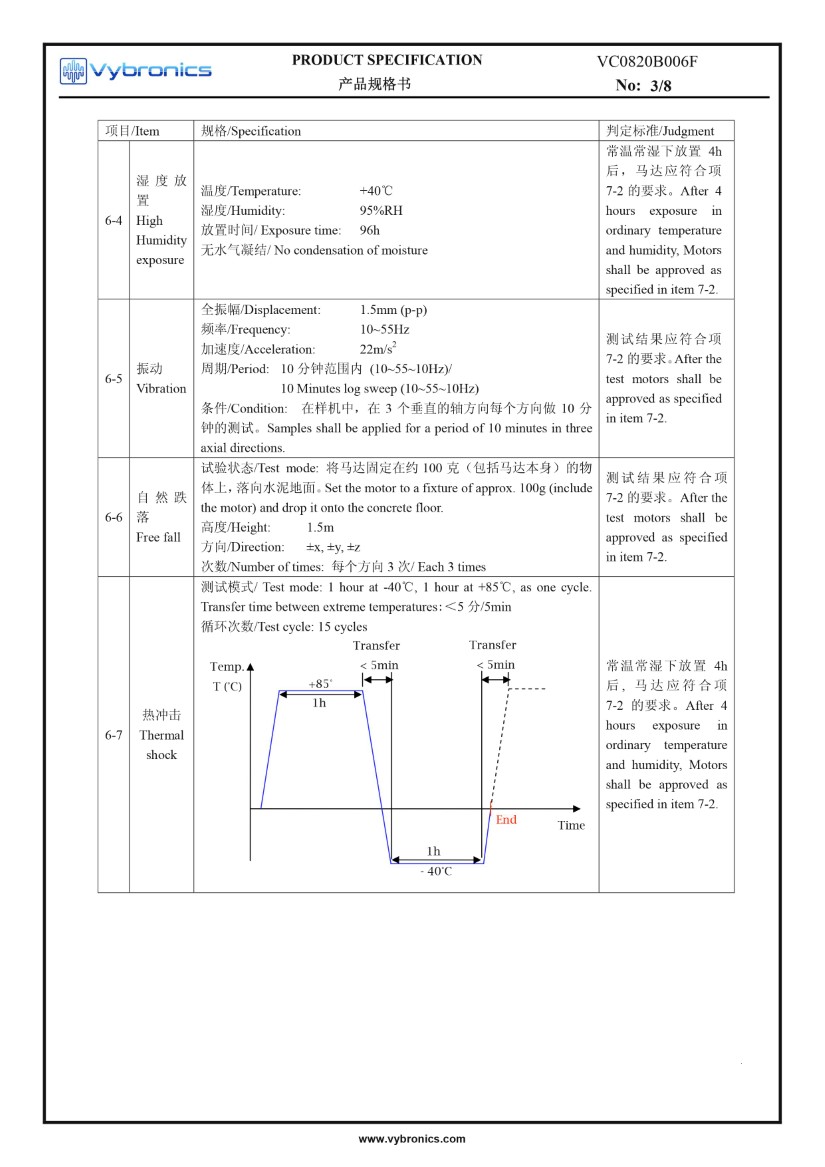

VC0820B006F (old p/n C0820B006F) Coin Vibration Motor Data 03VC0820B006F (old p/n C0820B006F) Coin Vibration Motor Data 04VC0820B006F (old p/n C0820B006F) Coin Vibration Motor Data 05VC0820B006F (old p/n C0820B006F) Coin Vibration Motor Data 06
