The VC0820B029L is a pancake vibration motor with FPC contact pads, and is based on the popular leaded version of the same motor, the VC0820B006F. This device is designed to be mounted in a molded recessed pocket in the products housing. PCB mounted contact springs or pogo pings mate with coin LRA's contacts pads. PCBA contact springs are made by TE as well as other companies.
CLICK HERE to see photos of how coin motors have been mounted in products.
| Summary Of Specifications | |
| Technology Type: | BRUSH |
| Diameter (mm): | 8.0 |
| Thickness (mm): | 2.1 |
| Rated Voltage (Vdc): | 3.0 |
| Operating Voltage (Vdc): | 2.5~3.5 |
| Rated Current MAX (mA): | 85 |
| Typical Current (mA): | 63 |
| Rise Time (ms) MAX *: | 90 |
| Fall Time (ms) MAX *: | 50 |
| Rated Speed (rpm): | 10000 MIN |
| Vibration Force (Grms): | 0.30 |
| * at 50% of Maximum G force | |
| Packaging Spec | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | 45*28*19CM |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4060 |
| 25% Exclusion Code: | 9903.88.67 |
| 25% Ex. Code Valid: | thru May 31 2024 |
|

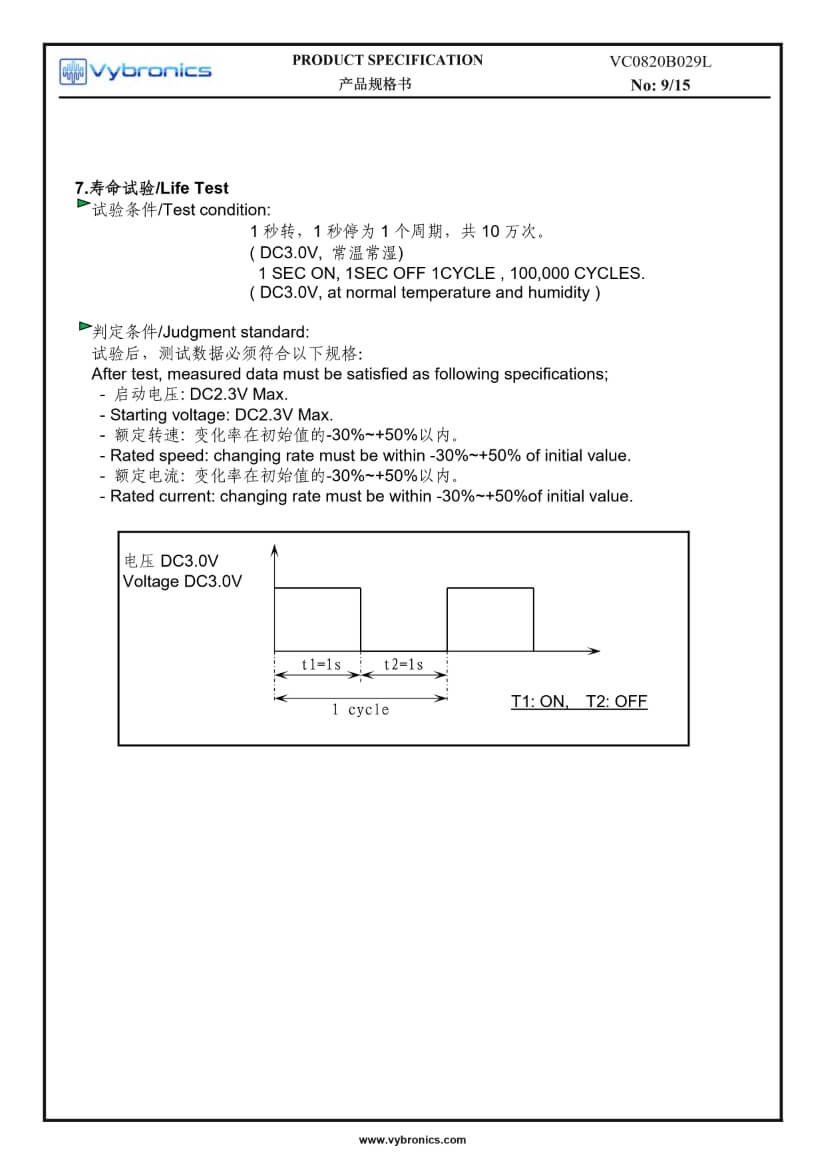

If you need samples, please Contact Us. |
|||
|
