KOTL Jinlong C0834B011F
Model Number: VC0834B011F
(old p/n: C0834B011F)

8 mm x 3.4 mm | 3 V | Coin Vibration Motor

Our VC0834B011F coin vibrator motor is more costly than our 10 and 12mm diameter motors. We recommend using this coin vibration motor only if your design can not accommodate our lower cost larger diameter motors. This motor is only available with wire leads. At your request, we can add either a Molex or AVX ELCO connector to the end of the leads. Click here for details. Other connectors are available upon request. This motor is supplied with a self adhesive tape which can be used to secure the motor to your PCB or the inner wall of your products housing.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 8.0
Thickness (mm): 3.4
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 85
Typical Current (mA): 61
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 13500
Vibration Force (G): 1.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: 5.8KG
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
USA 25% Exemption: NONE
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List

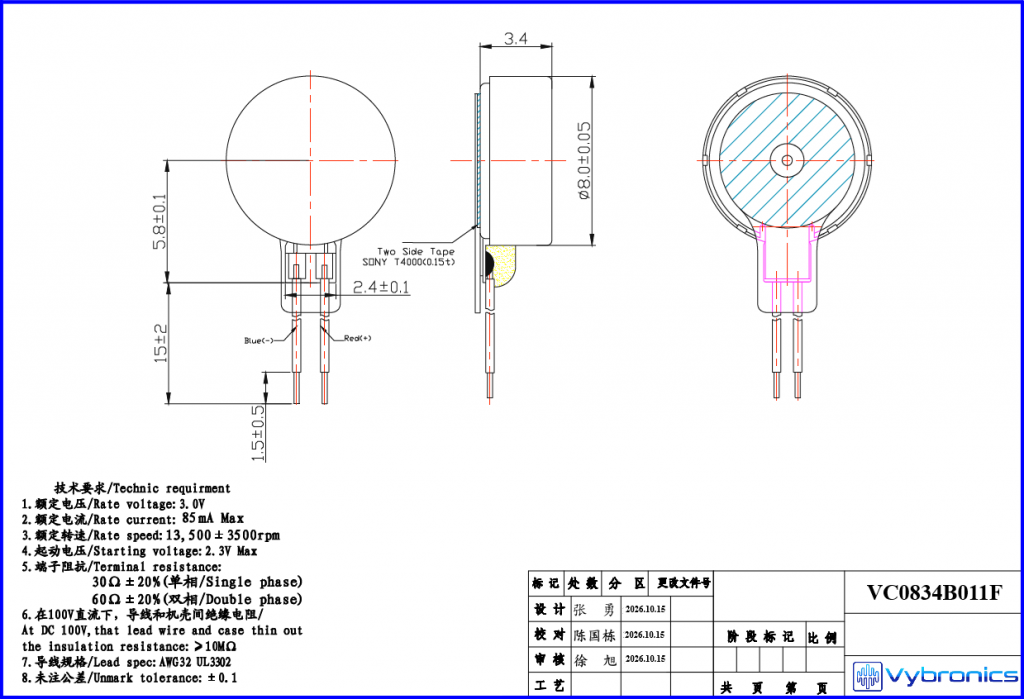

VC0834B011F (old p/n C0834B011F) Coin Vibration Motor drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VC0834B011F (old p/n C0834B011F) Coin Vibration Motor Data 03VC0834B011F (old p/n C0834B011F) Coin Vibration Motor Data 04VC0834B011F (old p/n C0834B011F) Coin Vibration Motor Data 05VC0834B011F (old p/n C0834B011F) Coin Vibration Motor Data 06
