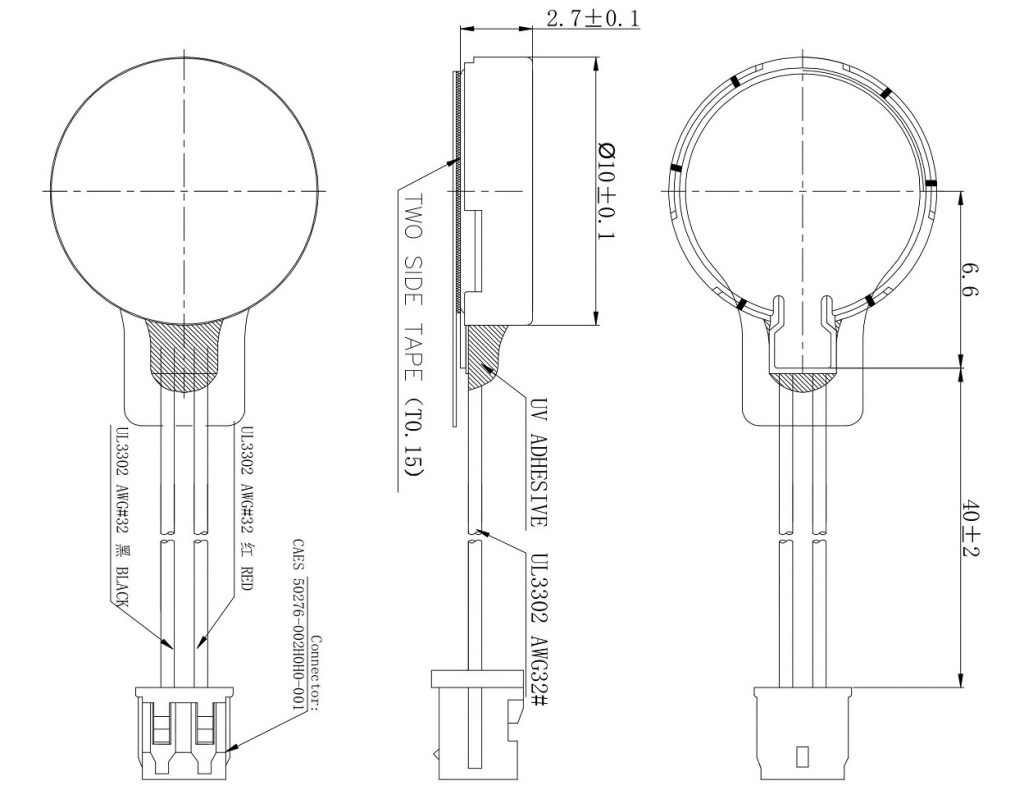

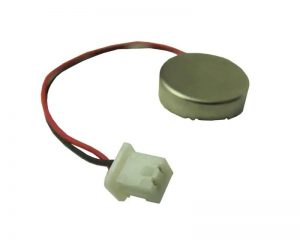

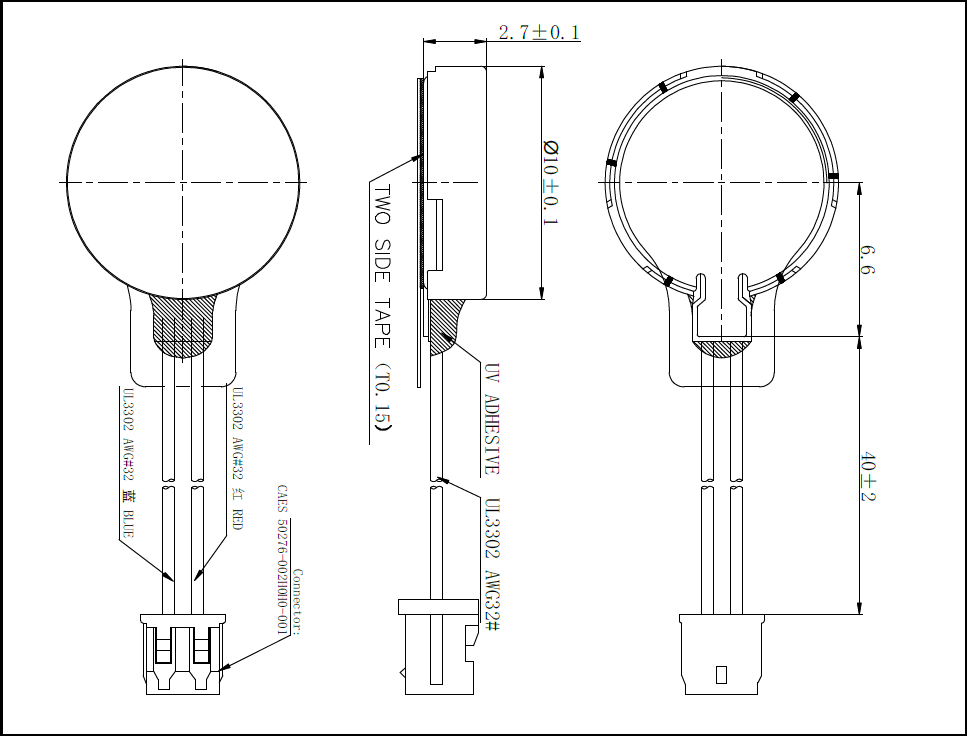

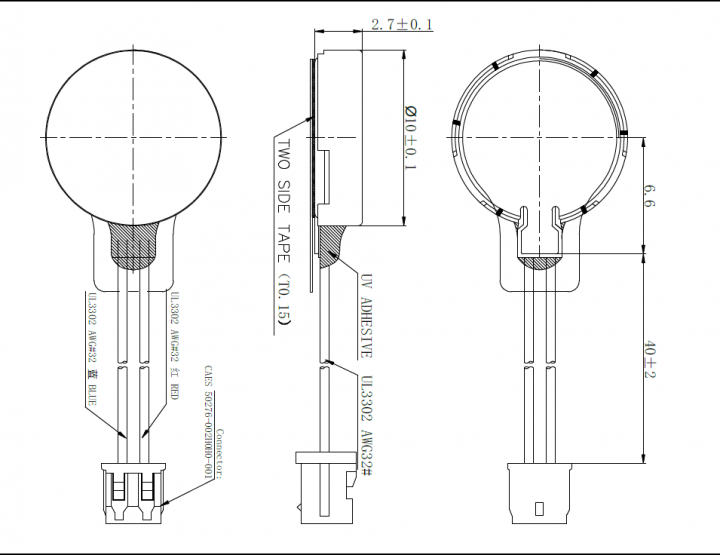

Our VC1027B923F coin vibration motor is the connectorized version of our popular VC1026B002F. It uses of the ACES 50276-002H0H0-001 which is based on the popular Molex 51021-0200 series connector. We favor ACES brand connectors due to their short lead times, quality and price. Contact them directly, or one of their distributors, for the mating PCB side of this connector. If required, Poron rubber pads of varying thicknesses be be added on request. Supplied with a self adhesive tape which can be used to secure the motor to your PCB or the inner wall of your products housing. available. Other connectors or special lead lengths are available upon request. Click here for details.
CLICK HERE to see photos of how coin motors have been mounted in products.
| Summary Of Specifications | |
| Technology Type: | BRUSH |
| Diameter (mm): | 10.0 |
| Thickness (mm): | 2.7 |
| Rated Voltage (Vdc): | 3.0 |
| Operating Voltage (Vdc): | 2.5~3.5 |
| Rated Current MAX (mA): | 85 |
| Typical Current (mA): | 61 |
| Rise Time (ms) MAX *: | 90 |
| Fall Time (ms) MAX *: | 50 |
| Rated Speed (rpm): | 13500 |
| Vibration Force (Grms): | 0.80 |
| * at 50% of Maximum G force | |
| Packaging Spec | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4060 |
| 25% Exclusion Code: | 9903.88.67 |
| 25% Ex. Code Valid: | thru May 31 2024 |
Available from
QTY In Stock: 851 pcs Contact Us for quotes on 2K+ pcs |
|||
|
This part is not authorized for Life Supporting Devices
