KOTL JInlong C1030B295L
Model Number: VC1030B295L
(old p/n: C1030B295L)

10 mm x 3 mm | 3 V | transparent | Coin Vibration Motor

The VC1030B295L is housed in a transparent housing to show off its internal workings.  This motor is used as the central design element of the popular Doppel wearable.   It is available in various lead length and connectors may be added to its  wire leads if required.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 10.0
Thickness (mm): 3.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.5~3.5
Rated Current MAX (mA): 85
Typical Current (mA): 61
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm): 10000
Vibration Force (G): 1.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: 45*28*19CM
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22


If you need samples,
please Contact Us.
Add To Favorite List
VC1030B295L (old p/n C1030B295L) Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

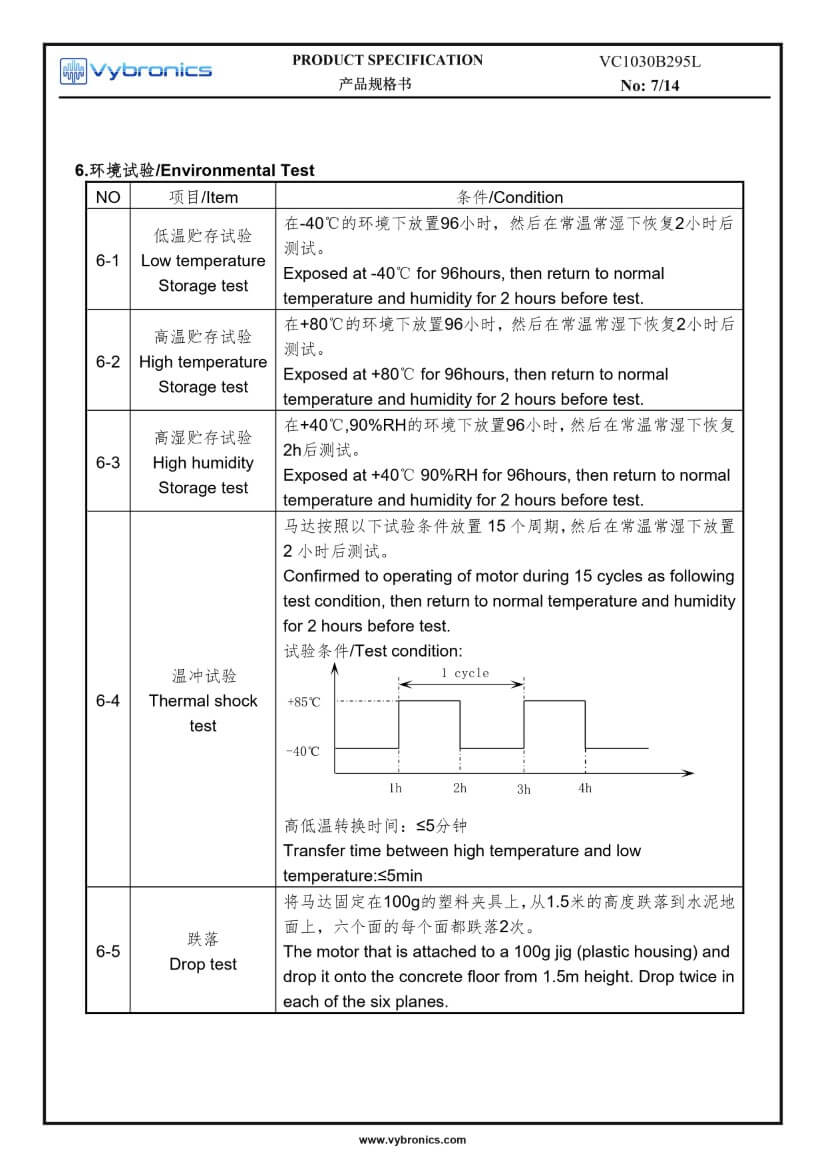

VC1030B295L (old p/n C1030B295L) Coin Vibration Motor Data 04VC1030B295L (old p/n C1030B295L) Coin Vibration Motor Data 05VC1030B295L (old p/n C1030B295L) Coin Vibration Motor Data 06VC1030B295L (old p/n C1030B295L) Coin Vibration Motor Data 07VC1030B295L (old p/n C1030B295L) Coin Vibration Motor Data 08VC1030B295L (old p/n C1030B295L) Coin Vibration Motor Data 09
