Vybronics VC1234B016F
Model Number: VC1234B016F
(old p/n: C1234B016F)

12 mm x 3.4 mm | 3 V | Coin Vibration Motor

Having the largest diameter and thickness, the Vybronics VC1234B016F is our most power coin vibration motor. We can add a wide range of connectors to its wire leads. Custom lead lengths are also possible. Click here for details. If you require a different connector to be used, send us the data and we will advise you if we can connect it. This coin vibrator motor is supplied with a self adhesive double stick tape which can be used to permanently secure the coin motor to the PCB or wall of your devices housing.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 12.0
Thickness (mm): 3.4
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 80
Typical Current (mA): 48
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm, MIN): 9000
Vibration Force (Grms): 2.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024
Available from
DigiKey Logo
QTY In Stock: 0 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List

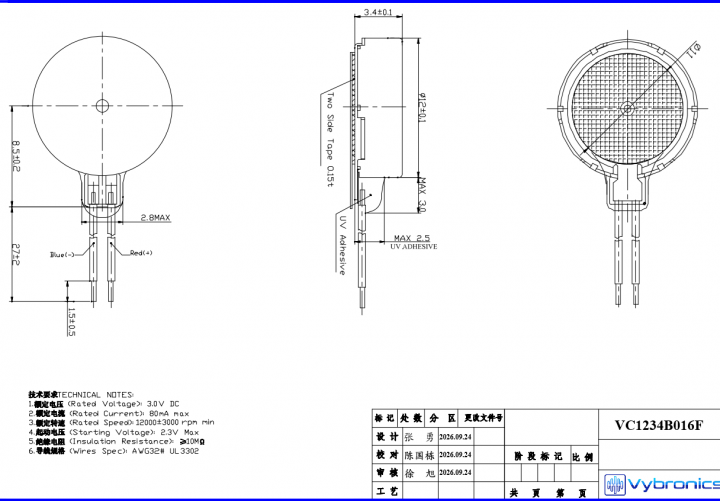

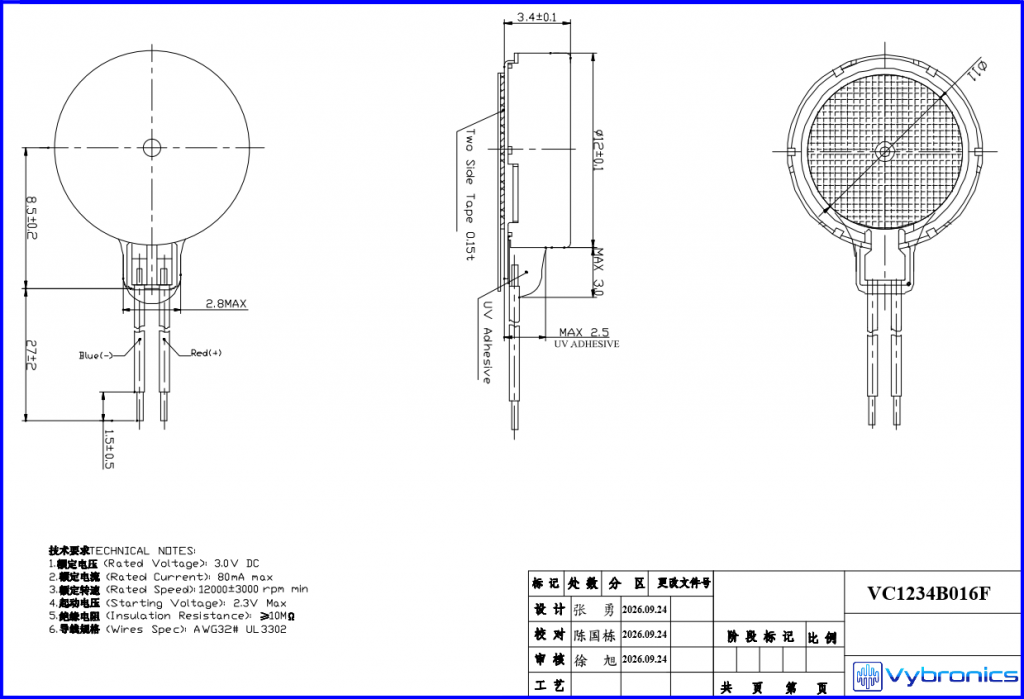

VC1234B016F (old p/n C1234B016F) 12mm Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

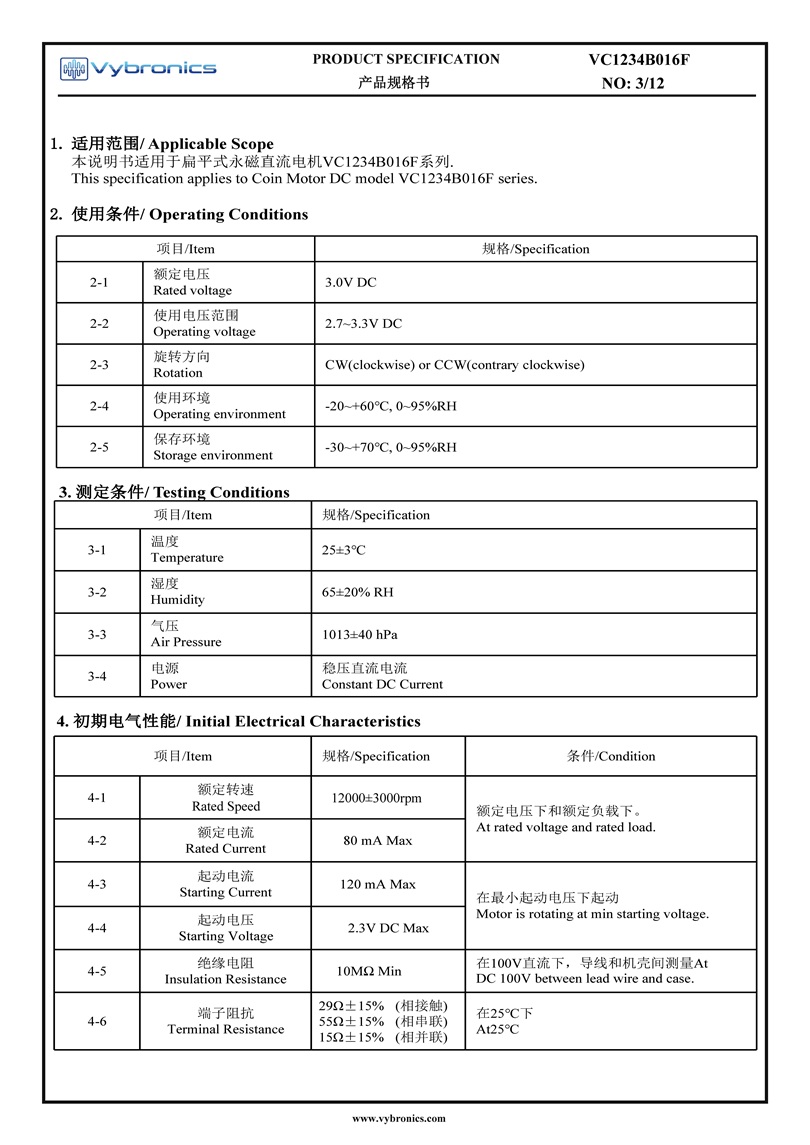

VC1234B016F (old p/n C1234B016F) 12mm Coin Vibration Motor data 03

VC1234B016F (old p/n C1234B016F) 12mm Coin Vibration Motor data 04VC1234B016F (old p/n C1234B016F) 12mm Coin Vibration Motor data 05VC1234B016F (old p/n C1234B016F) 12mm Coin Vibration Motor data 06
