Vybronics VC1434B002U
Model Number: VC1434B002U

14 mm x 3.4 mm | 3.7 V | Coin Vibration Motor

The VC1434B002U measures 14 mm in diameter,  generates 3 Grms of vibration force, and is our most powerful brush type coin vibration motor.    We can add a wide range of connectors to its wire leads. Custom wire lead lengths are also possible.   Click here for details.  If you need a different connector to be used, send us the data sheet / part # and we will advise you if we can supply it.   This motor is supplied with a  PSA / self adhesive double stick tape pad which can be used to secure the coin motor to the PCB or wall of your devices housing.

CLICK HERE to see photos of how coin motors have been mounted in products.

Summary Of Specifications
Technology Type: BRUSH
Diameter (mm): 14.0
Thickness (mm): 3.4
Rated Voltage (Vdc): 3.7
Operating Voltage (Vdc): 2.5~4.3
Rated Current MAX (mA): 120
Typical Current (mA): 75
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Rated Speed (rpm, MIN): 9000
Vibration Force (Grms): 3.00
* at 50% of Maximum G force
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 50
Quantity - Master box: 4000
Size - Master Box: 36 x 24 x 14 cm
Weight - Master Box: Call us
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: thru May 31 2024
Available from
DigiKey Logo
QTY In Stock: 51 pcs

Contact Us for
quotes on 2K+ pcs
Add To Favorite List
No report is available. Contact us for info

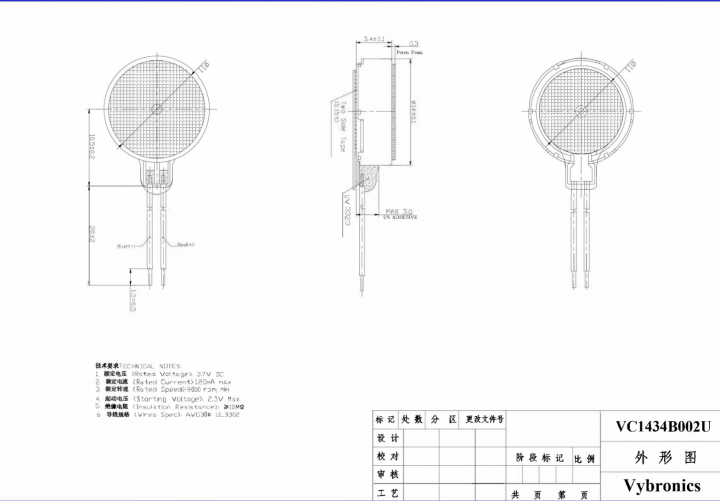

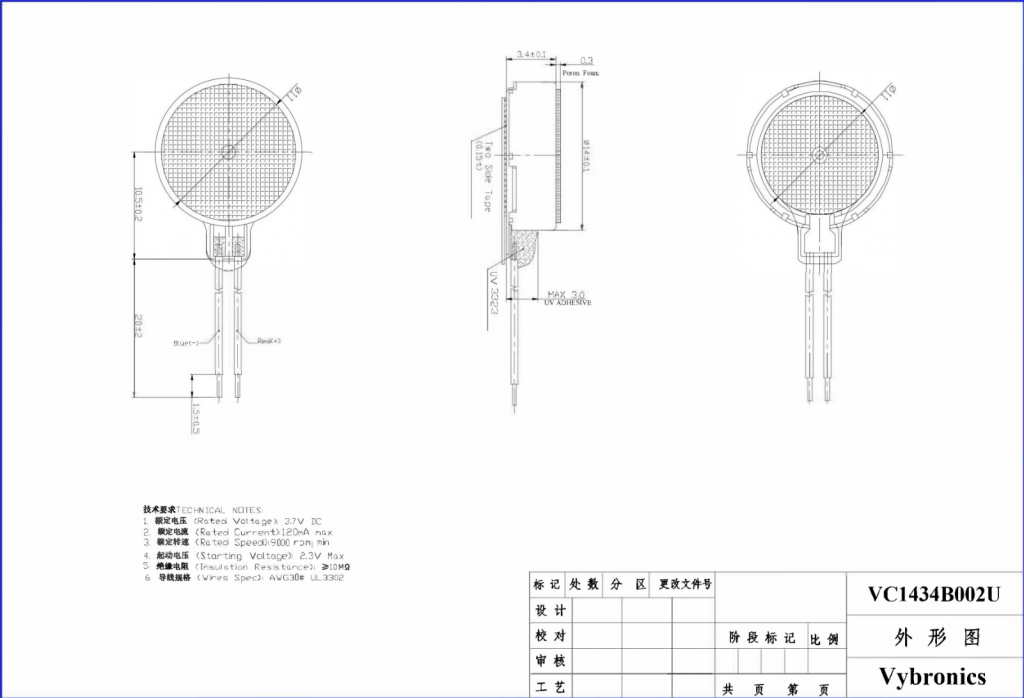

Vybronics VC1434B002U, 14mm Coin Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.
