KOTL Jinlong Z4TC2B0640001P
Model Number: VZ4TC2B0640001P
(old p/n: Z4TC2B0640001P)

4mm Diameter | 3 V | Low Current | Vibration Motor

At less than 10mm in overall length, the VZ4TC2B0640001P is the smallest vibration motor is our low current series.  It draws 17 ma (typical) @  3 Vdc, consuming a low  51 milliwatts of electrical energy.  If you require this motor with a  rubber boot order VZ4TC2B0640002P.   This boot is highly recommended when mounting this low current vibration motor in a cavity in the  products housing.  Custom lead wire lengths are available as are connectors.    This series of  low power consuming vibration motors are relatively high priced.  After sample approval, the minimum order is 3 master cartons, which total  4800 pcs @  USD  2.15 ea

Summary Of Specifications
Diameter/Height (mm): 4.0 / 4.0
Body (mm): 5.5
Overall (mm): 9.3
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.4~3.6
Rated Current MAX (mA):  22
Typical Current (mA): 17
Rated Speed (rpm): 8000
Vibration Force (G): 0.65
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22


If you need samples,
please Contact Us.
Add To Favorite List

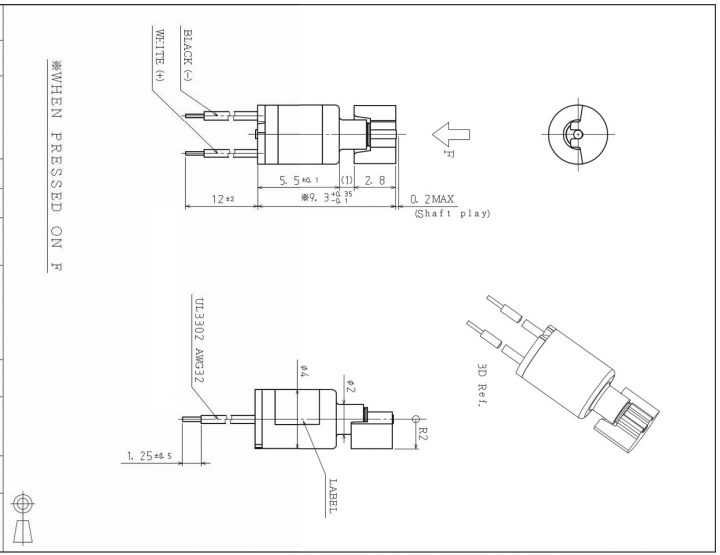

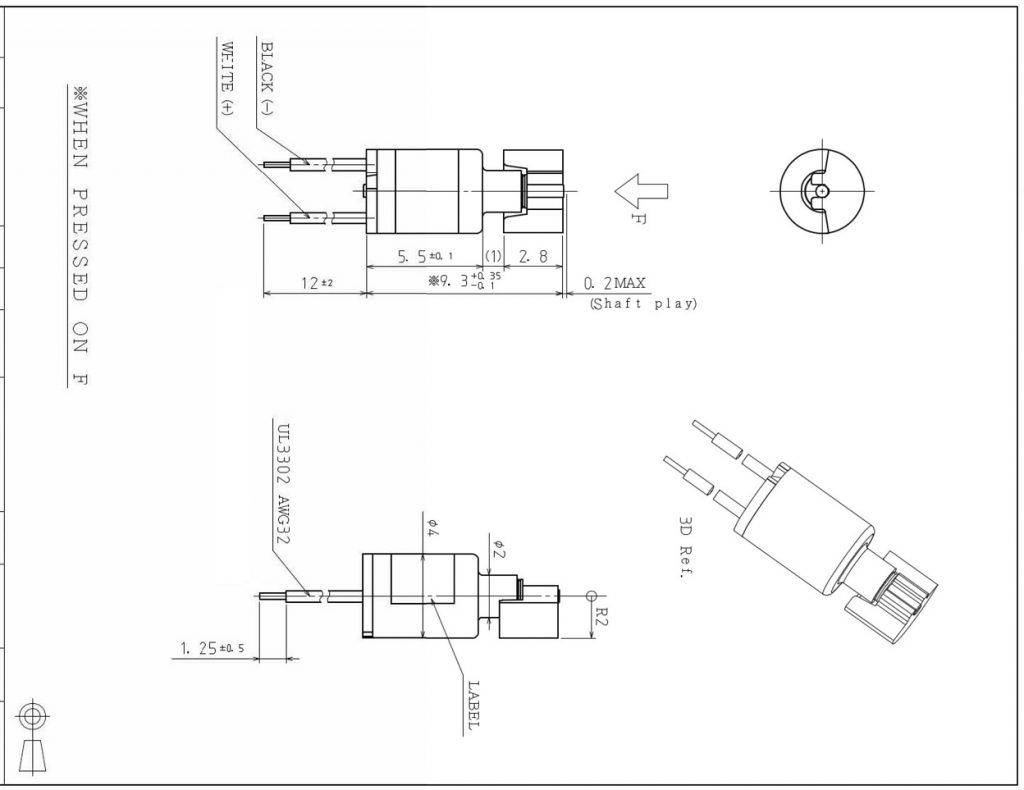

VZ4TC2B0640001P (old p/n Z4TC2B0640001P) Low Current Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

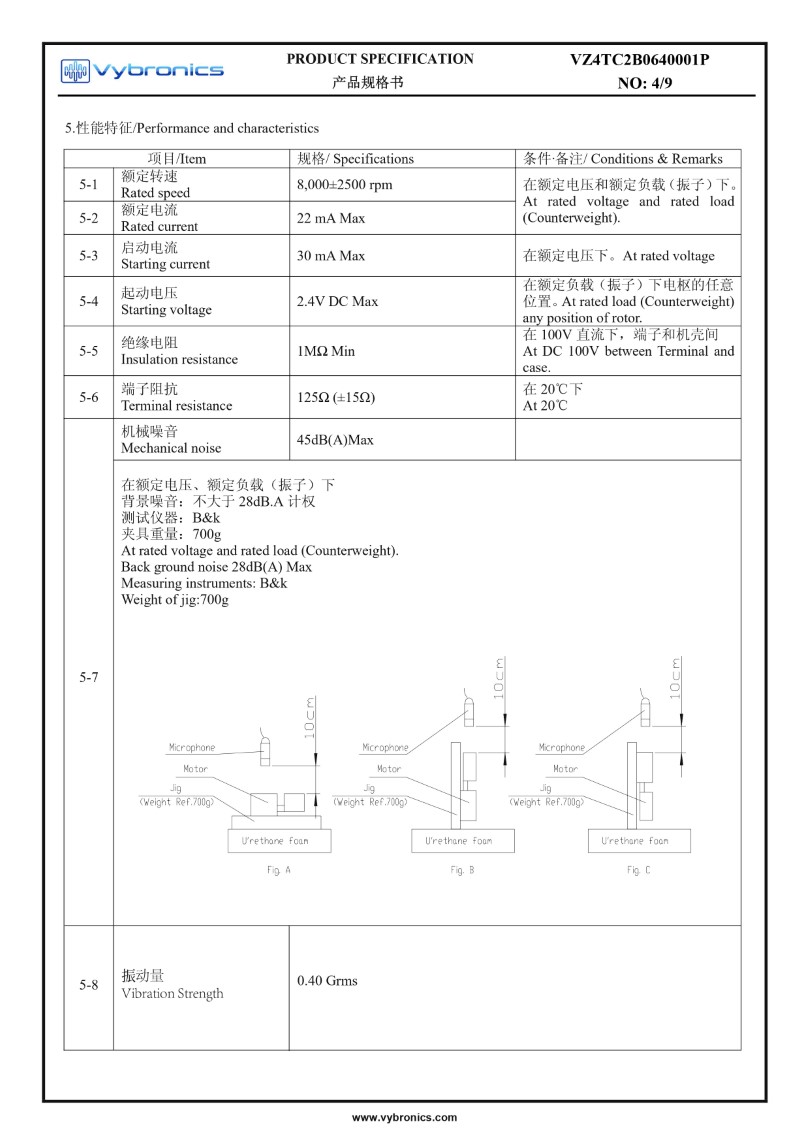

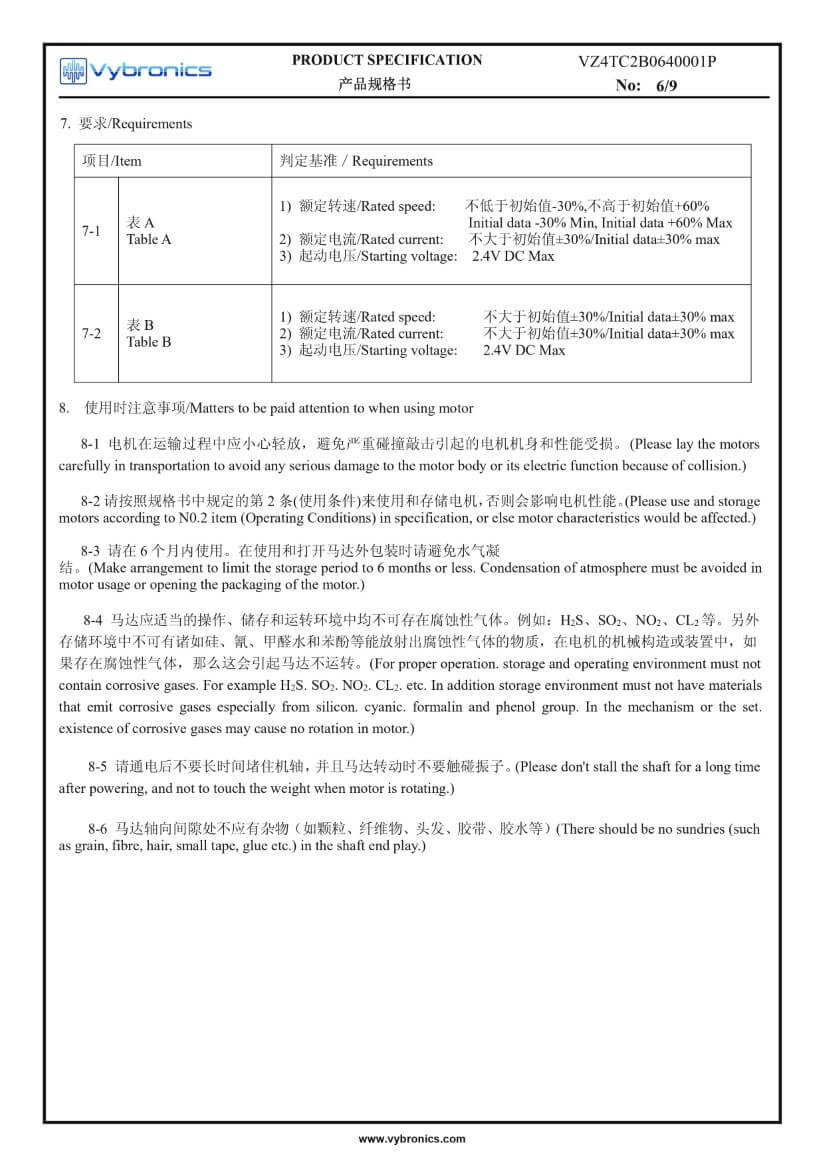

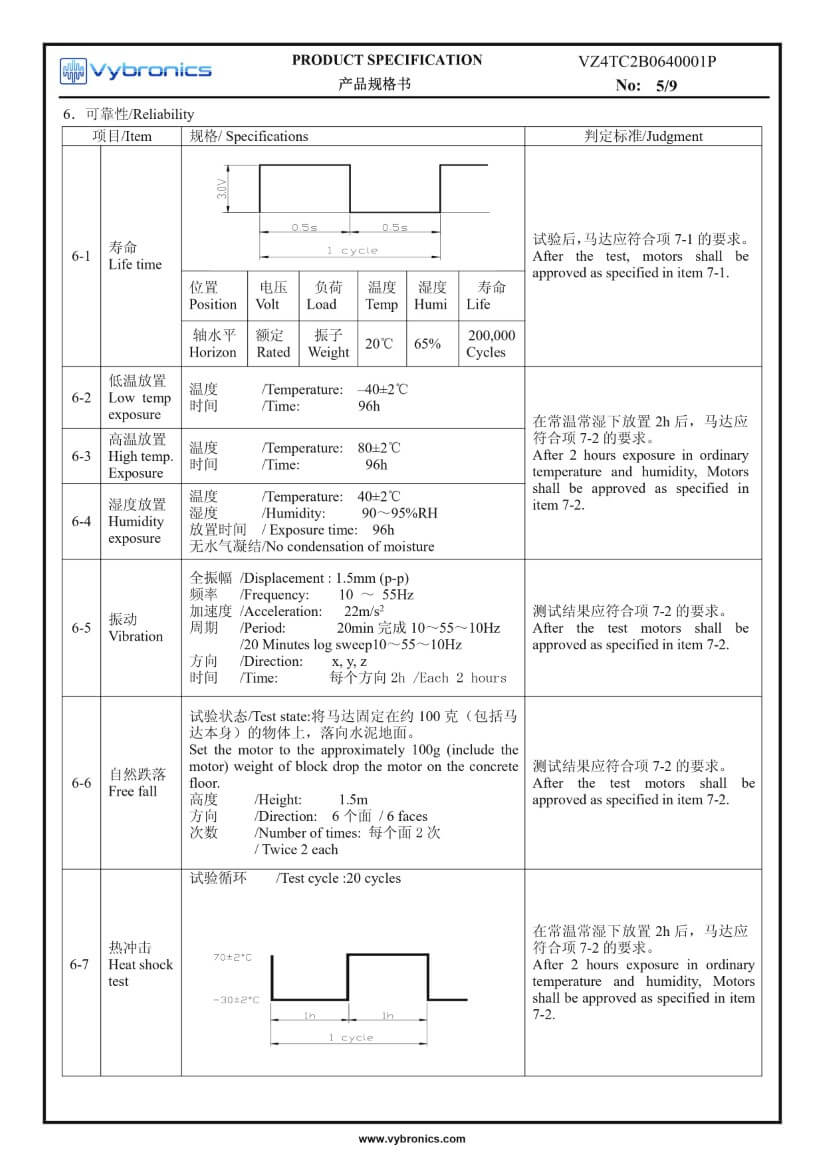

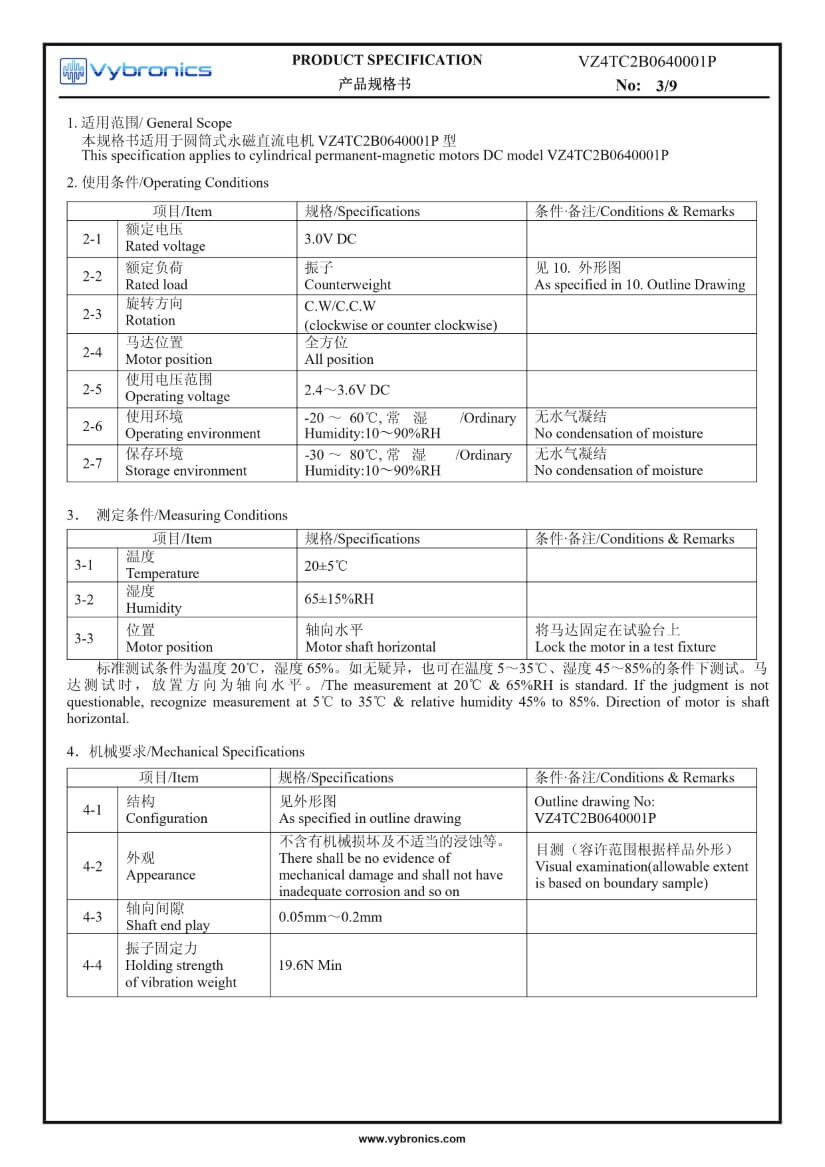

VZ4TC2B0640001P (old p/n Z4TC2B0640001P) Low Current Cylindrical Vibration Motor data 03VZ4TC2B0640001P (old p/n Z4TC2B0640001P) Low Current Cylindrical Vibration Motor data 04VZ4TC2B0640001P (old p/n Z4TC2B0640001P) Low Current Cylindrical Vibration Motor data 05VZ4TC2B0640001P (old p/n Z4TC2B0640001P) Low Current Cylindrical Vibration Motor data 06
