KOTL Jinlong Z4TL2B0620043P
Model Number: VZ4TL2B0620043P
(old p/n: Z4TL2B0620043P)

4mm Diameter | 3 V | Low Current | Vibration Motor

The VZ4TL2B0620043P is the most efficient vibration motor we offer.  It draws a remarkably low current of 9 ma (typical) @  3 Vdc while generating a vibration force of 0.75 Gpk.   Energy consumption is a mere 27 mw.  If you require this motor with the rubber boot order VZ4TL2B0620044P.  This rubber gasket is recommended when mounting this motor within a recessed cavity in the device and will minimize unwanted mechanical noise and ensure maximum transfer of vibration energy to the products housing.   Custom lead wire lengths are available as are connectors.    This series of  low current vibration motors are relatively high priced.  After sample approval, the minimum order is 1 master carton of 4800 pcs @  USD  2.15 ea

Summary Of Specifications
Diameter/Height (mm): 4.0 / 4.0
Body (mm): 8.2
Overall (mm): 12.8
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.4~3.6
Rated Current MAX (mA):  12
Typical Current (mA): 9
Rated Speed (rpm): 8000
Vibration Force (G): 0.75
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22


If you need samples,
please Contact Us.
Add To Favorite List

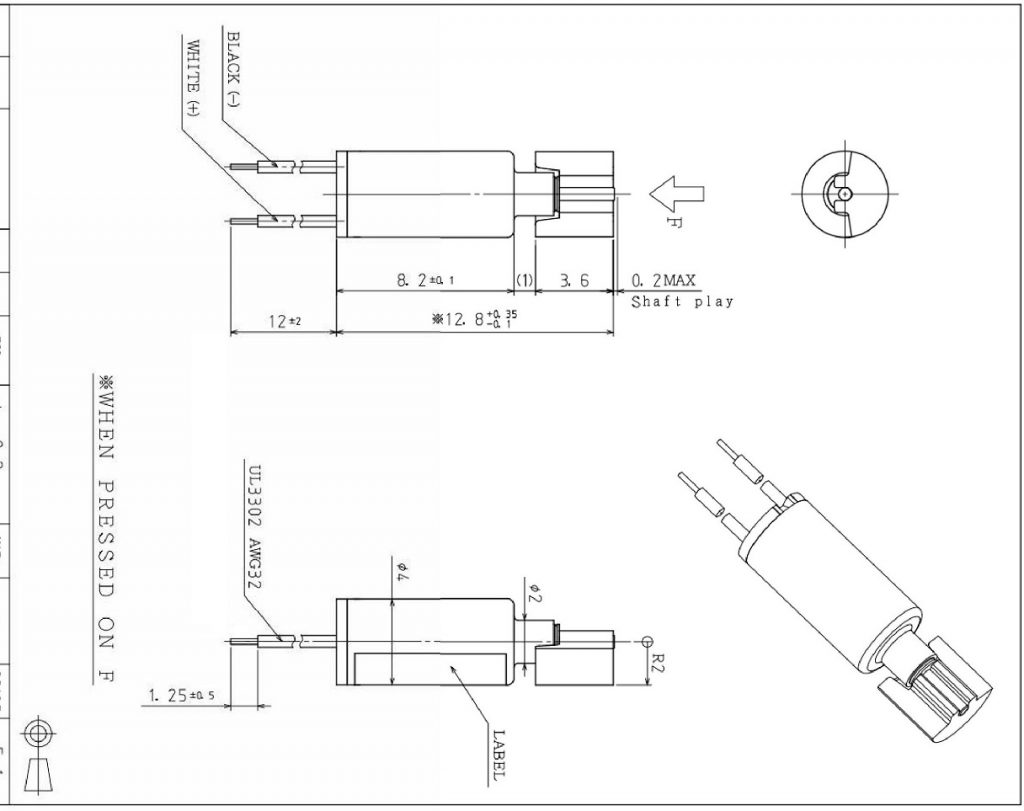

VZ4TL2B0620043P (old p/n Z4TL2B0620043P) Low Current Cylindrical Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

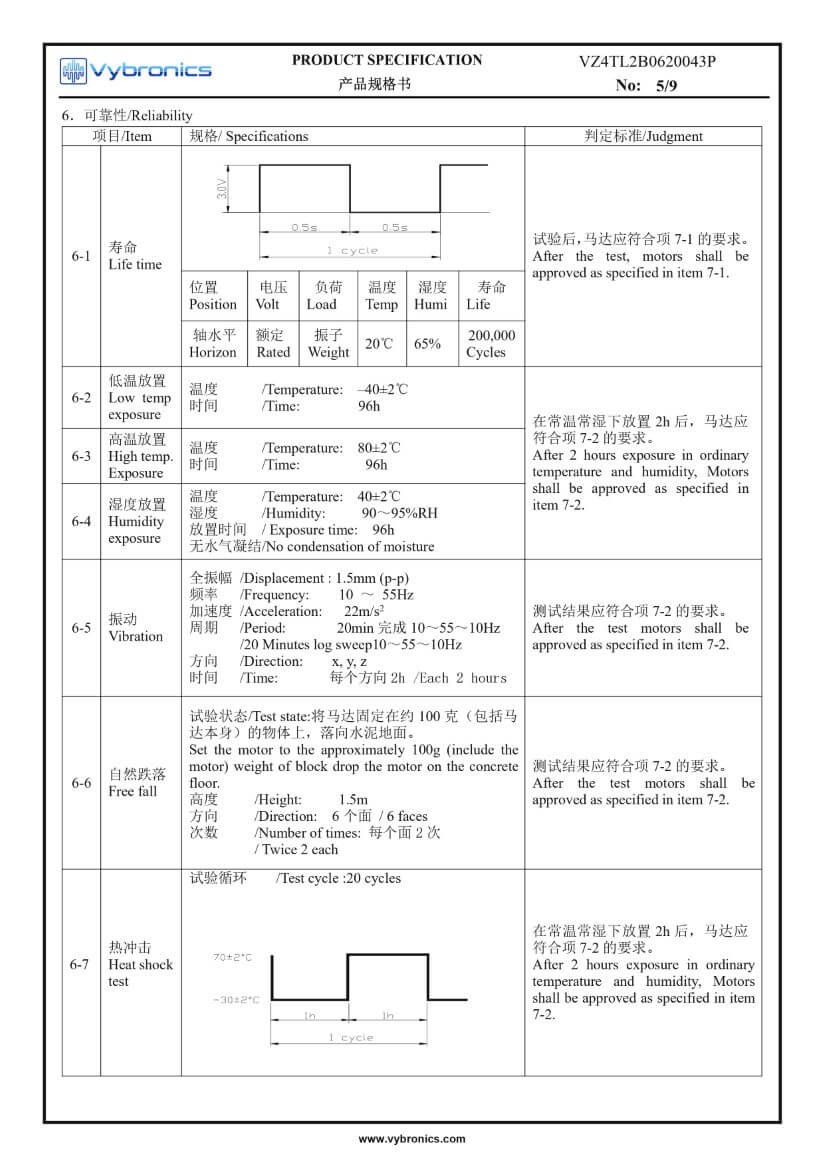

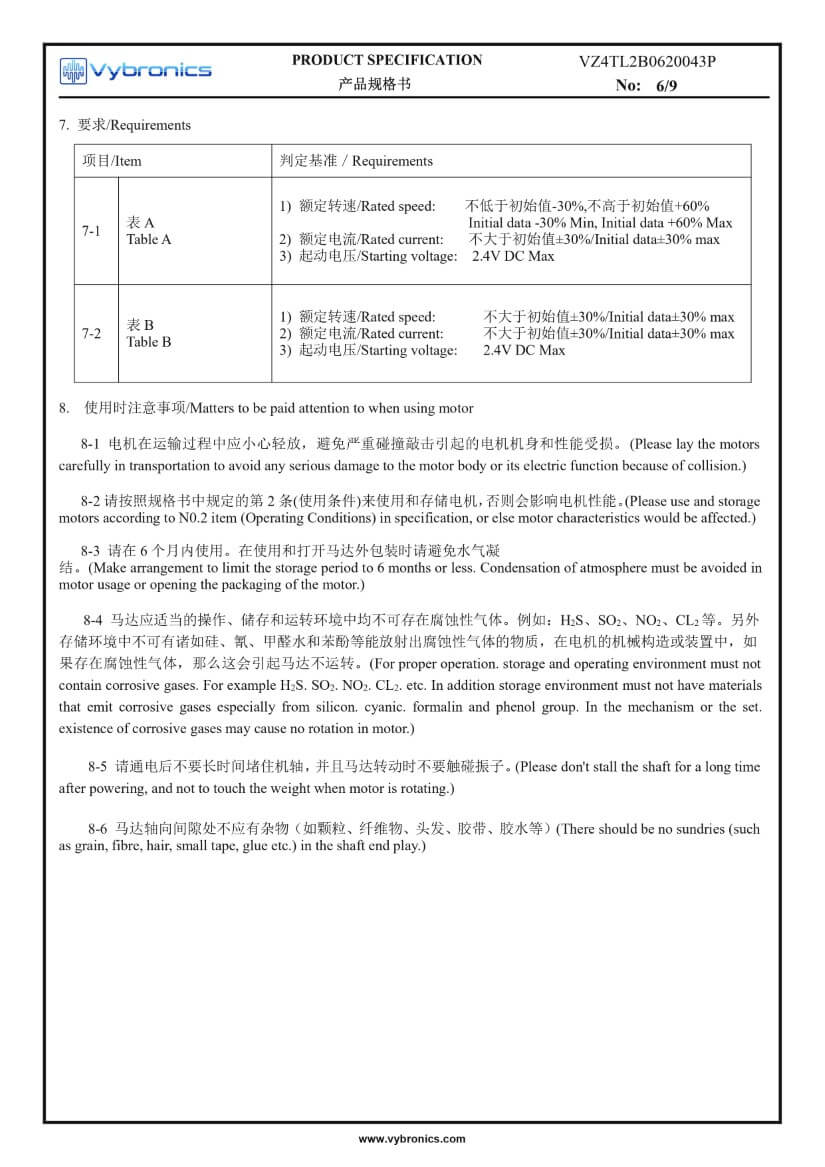

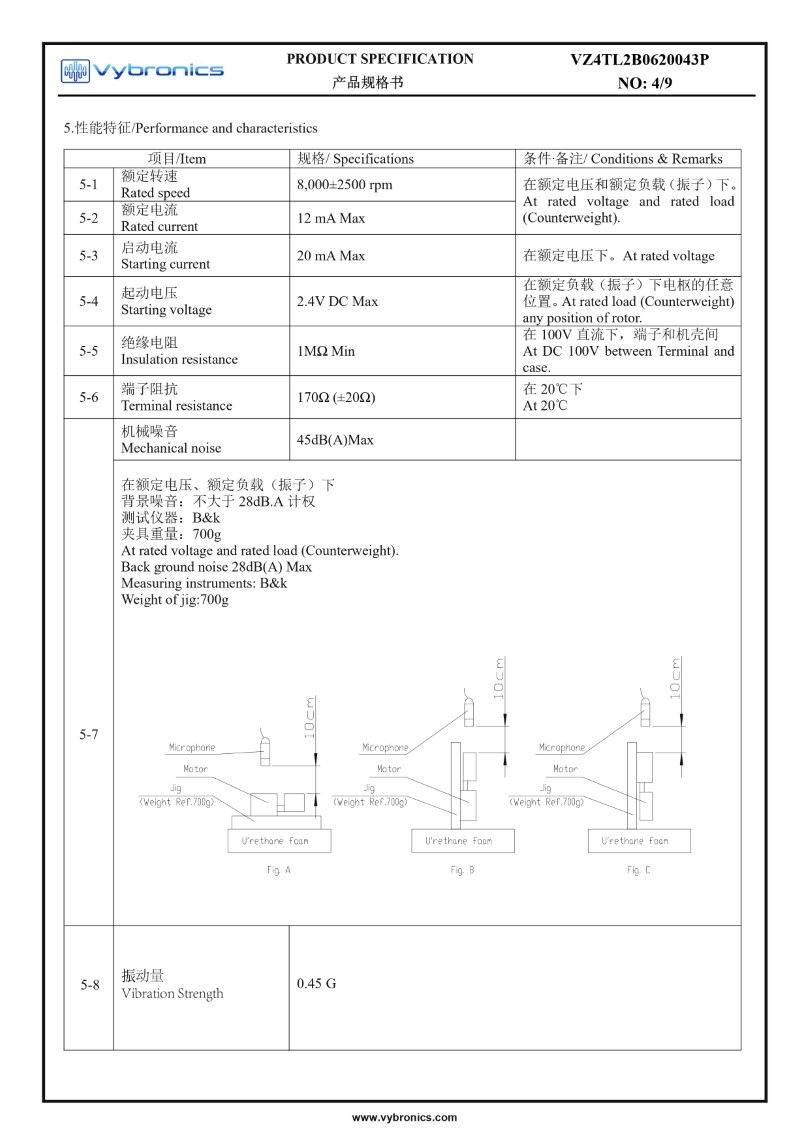

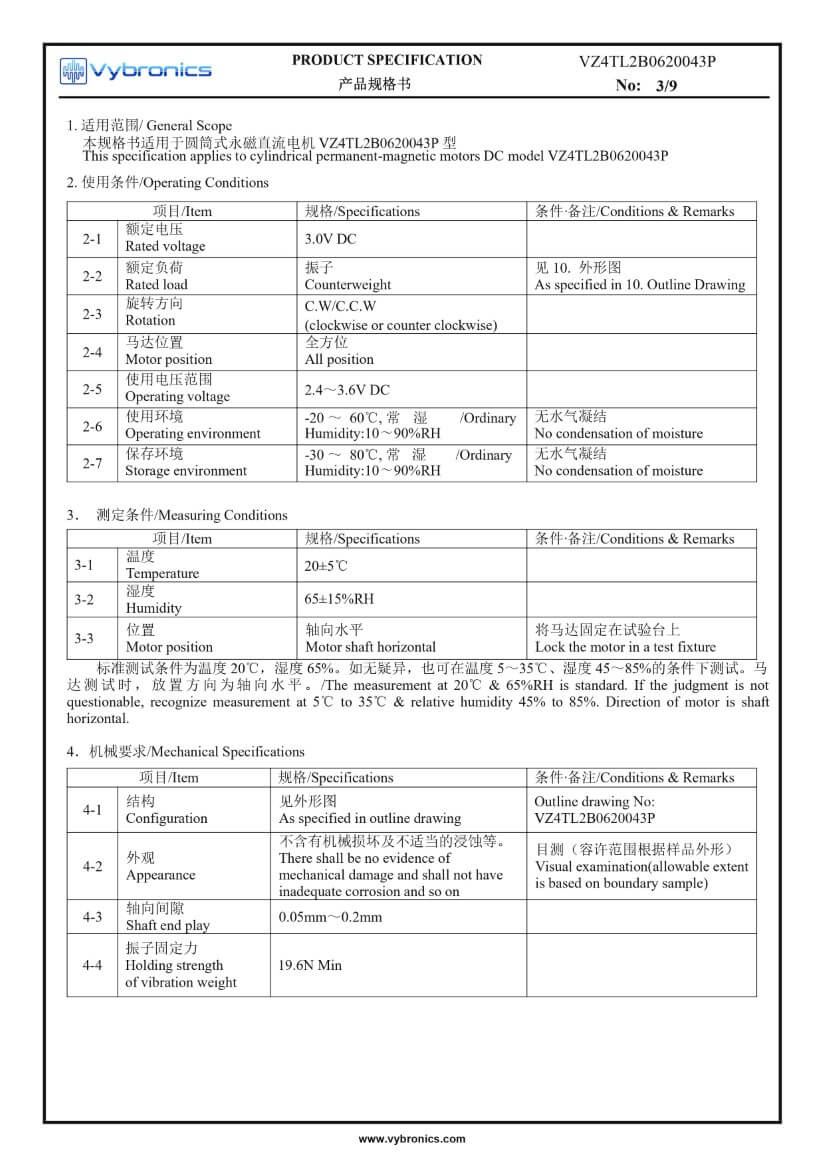

VZ4TL2B0620043P (old p/n Z4TL2B0620043P) Low Current Cylindrical Vibration Motor data 03VZ4TL2B0620043P (old p/n Z4TL2B0620043P) Low Current Cylindrical Vibration Motor data 04VZ4TL2B0620043P (old p/n Z4TL2B0620043P) Low Current Cylindrical Vibration Motor data 05VZ4TL2B0620043P (old p/n Z4TL2B0620043P) Low Current Cylindrical Vibration Motor data 06
