Vybronics VZ30C1B839981A
360view
Model Number: VZ30C1B839981A
(old p/n: Z30C1B839981A)

3.35mm | 3.0V | Mid-Mount Vibration Motor - SMD Reflow

At a height of only 1.7 mm above the PCB, this unique mid-mount vibration motor design allows for space saving, low profile designs. It is mounted in a rectangular cut out in the PCB and is reflow soldered. While coin vibration motor are available in thicknesses as small as 2.0 mm, this mid-mount vibration motor offers the distinct advantage of generating a vibration force that is perpendicular to its body, which in most cases, will also be perpendicular to the end users skin. This is desirable for the user to have the best haptic feedback experience. Coin type motors generate a vibration force that is parallel to its largest surface. These are packaged on tape / reels of 1000 pieces per reel and are designed to be pick-and-placed directly from the reel. They are an excellent choice for high volume mass production. They have a “core” which allows them to withstand the high temperatures associated with the reflow soldering process. These mid-mountable vibrator motors can be damaged by excessive heat. Please be sure to follow the reflow oven temperature profile found in the motors data sheet. If these motors will be hand soldered ( ie. making prototypes) , do not use flux and use a low wattage iron for as short a time period as possible. Please note that these mid-mount vibration motors CAN NOT be washed.

Summary Of Specifications
Height (mm): 3.35
Body (mm): 6.95
Overall (mm): 12.5
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.3~3.6
Rated Current MAX (mA): 85
Typical Current (mA): 76
Rated Speed (rpm): 12000
Vibration Force (Grms): 0.45
Packaging Spec
Part Packaging: Tape / Reel
Qty per reel / tray: 1000
Quantity - Master box: 5000
Size - Master Box: 38*38*23CM
Weight - Master Box: 7KG
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22
Samples
Available from
DigiKey Logo
Contact Us for
quotes on 2K+ pcs
Add To Favorite List

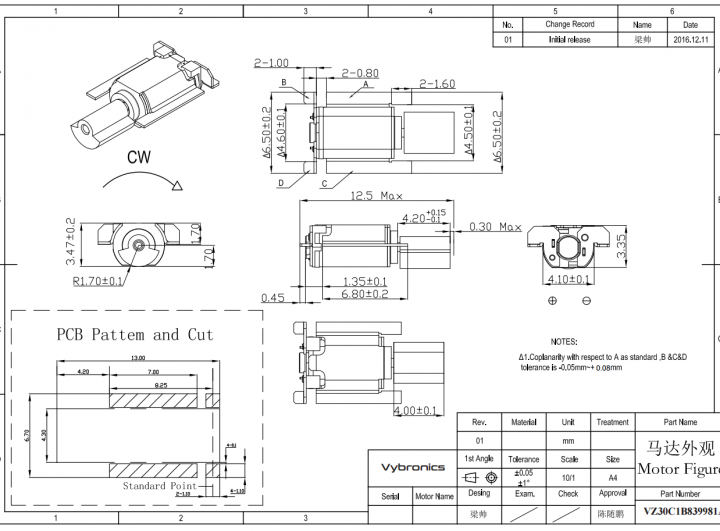

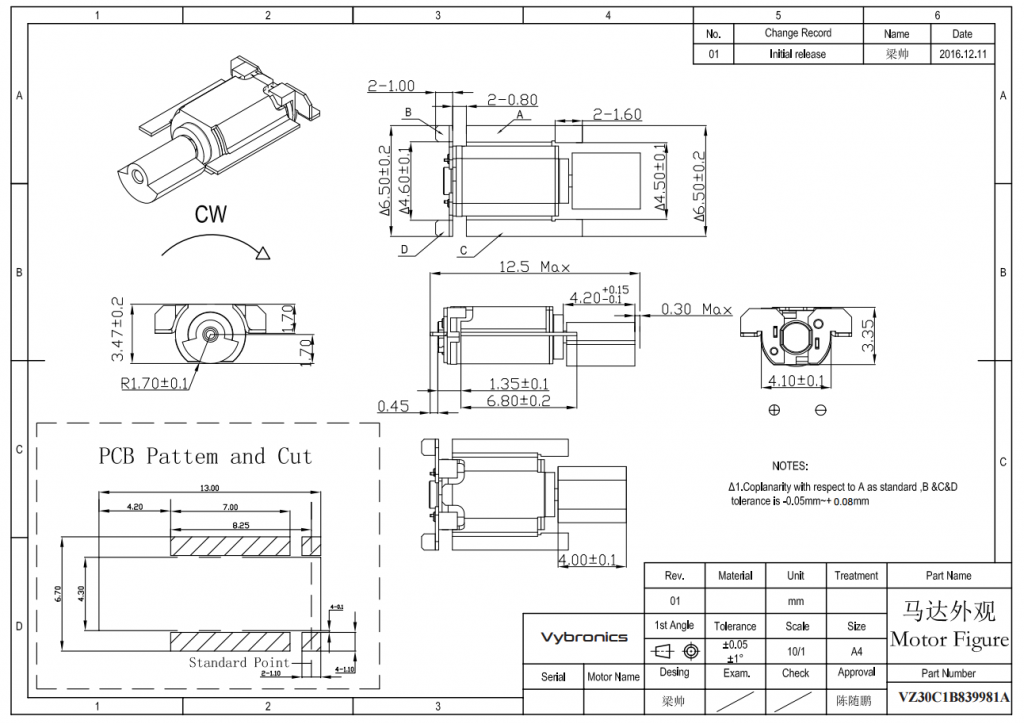

VZ30C1B839981A (old p/n Z30C1B839981A) PCB Mid-Mount Vibration Motor - SMD Reflow Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

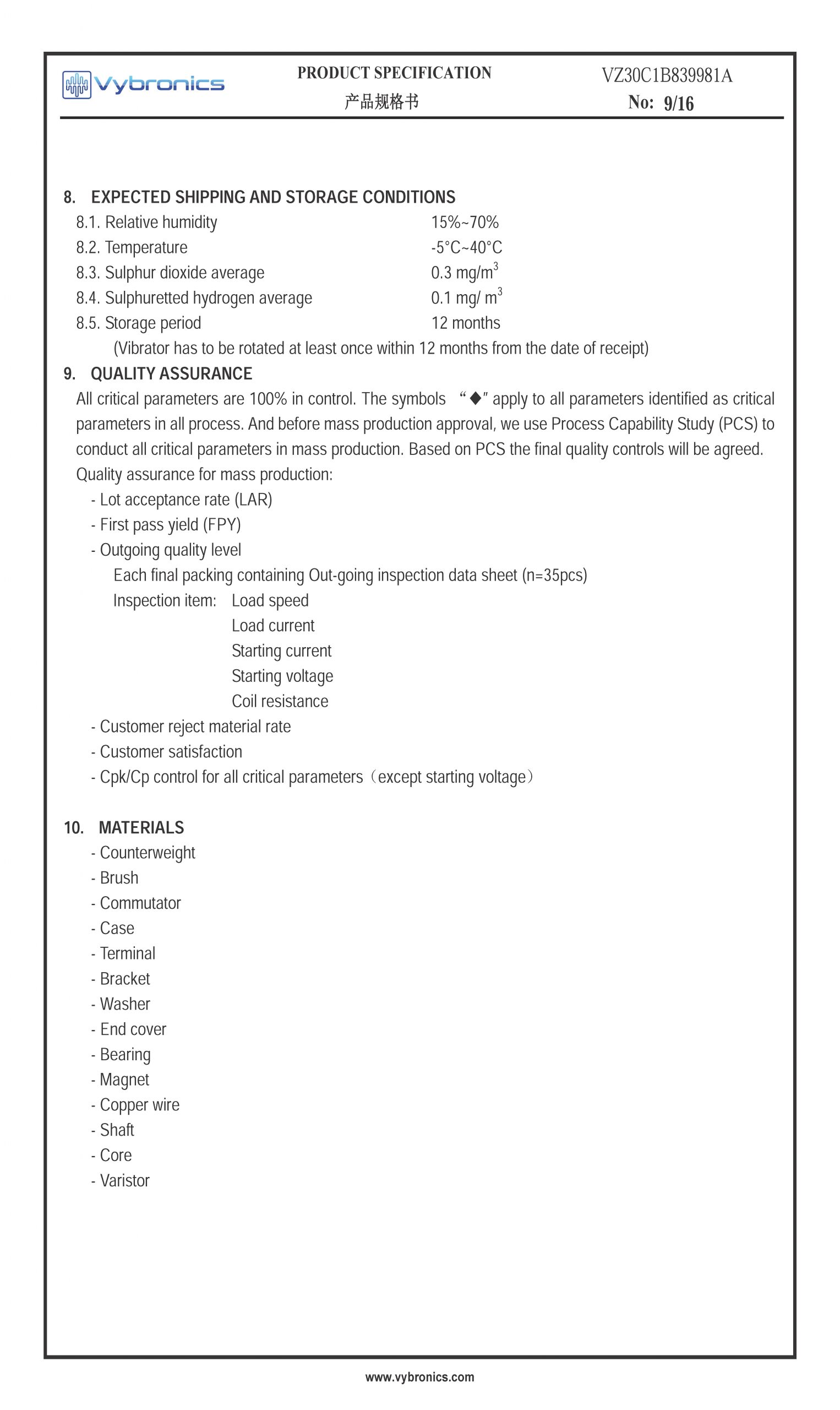

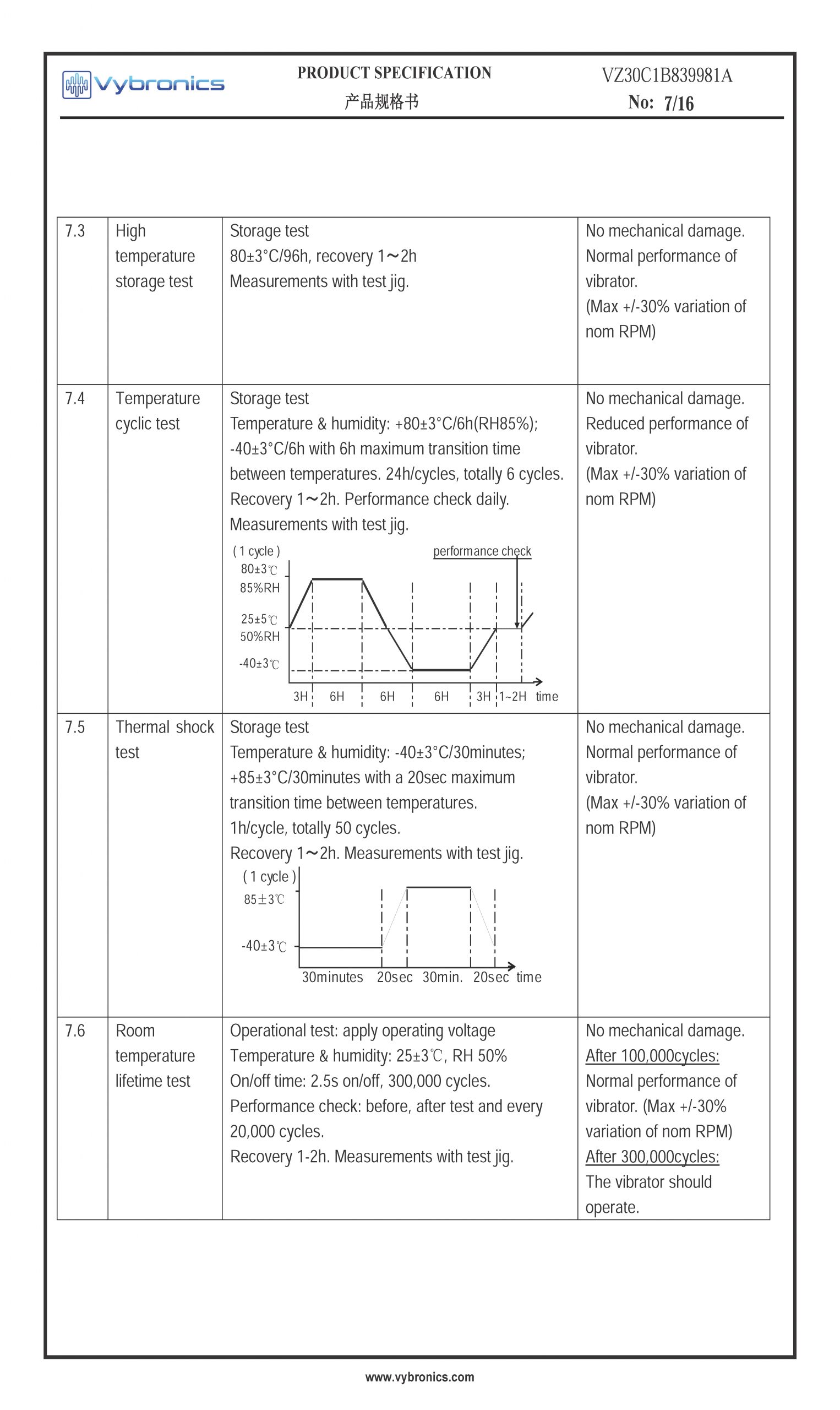

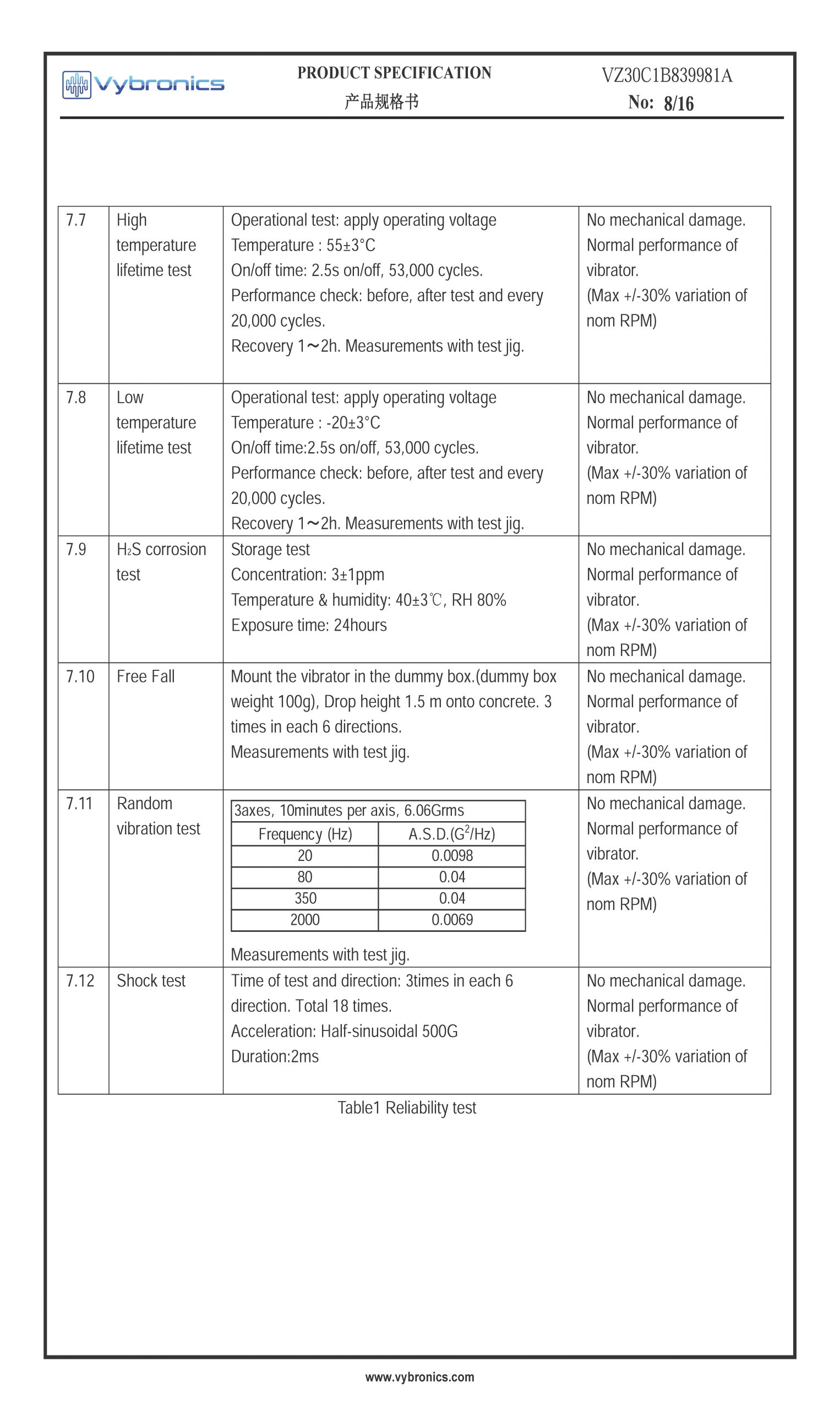

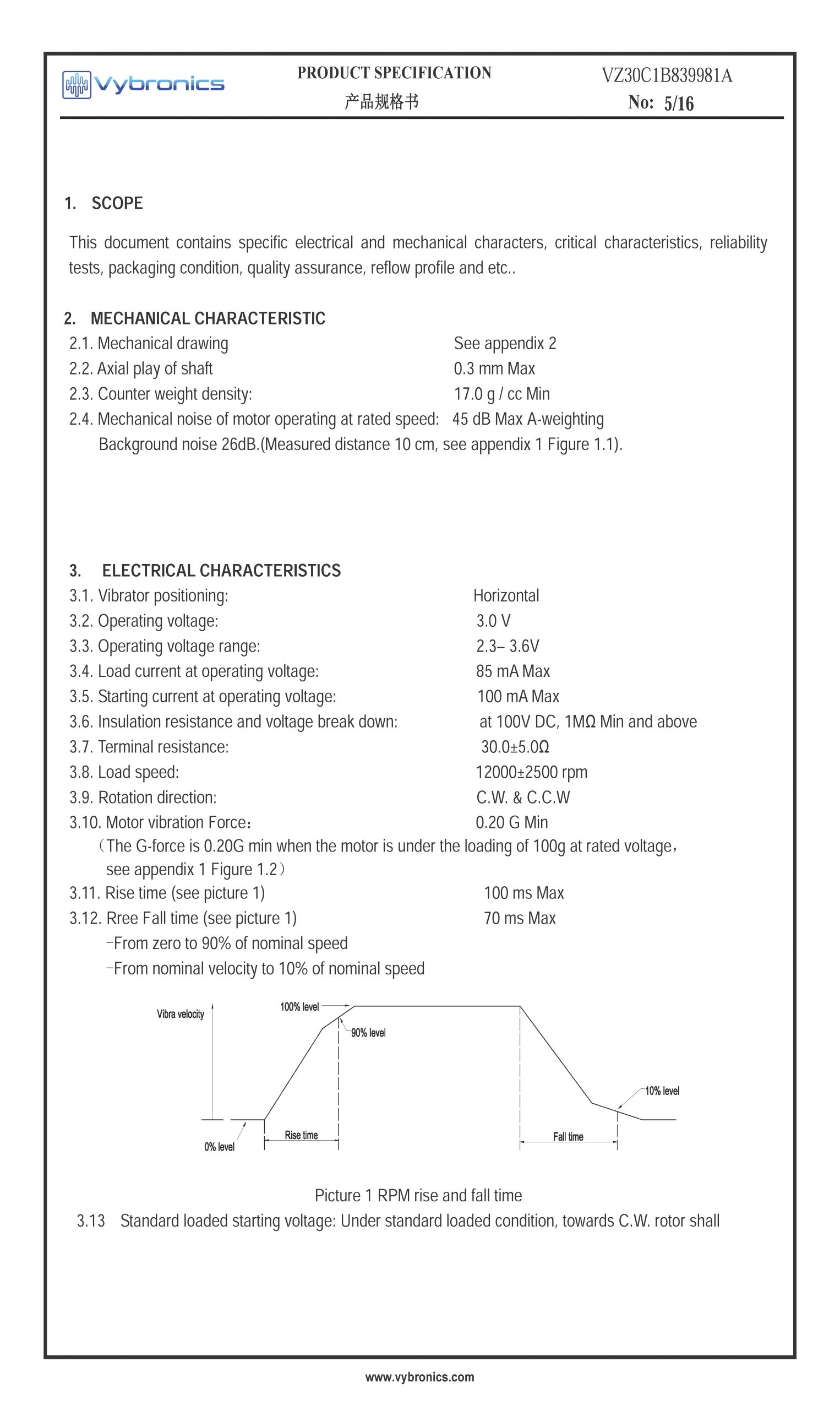

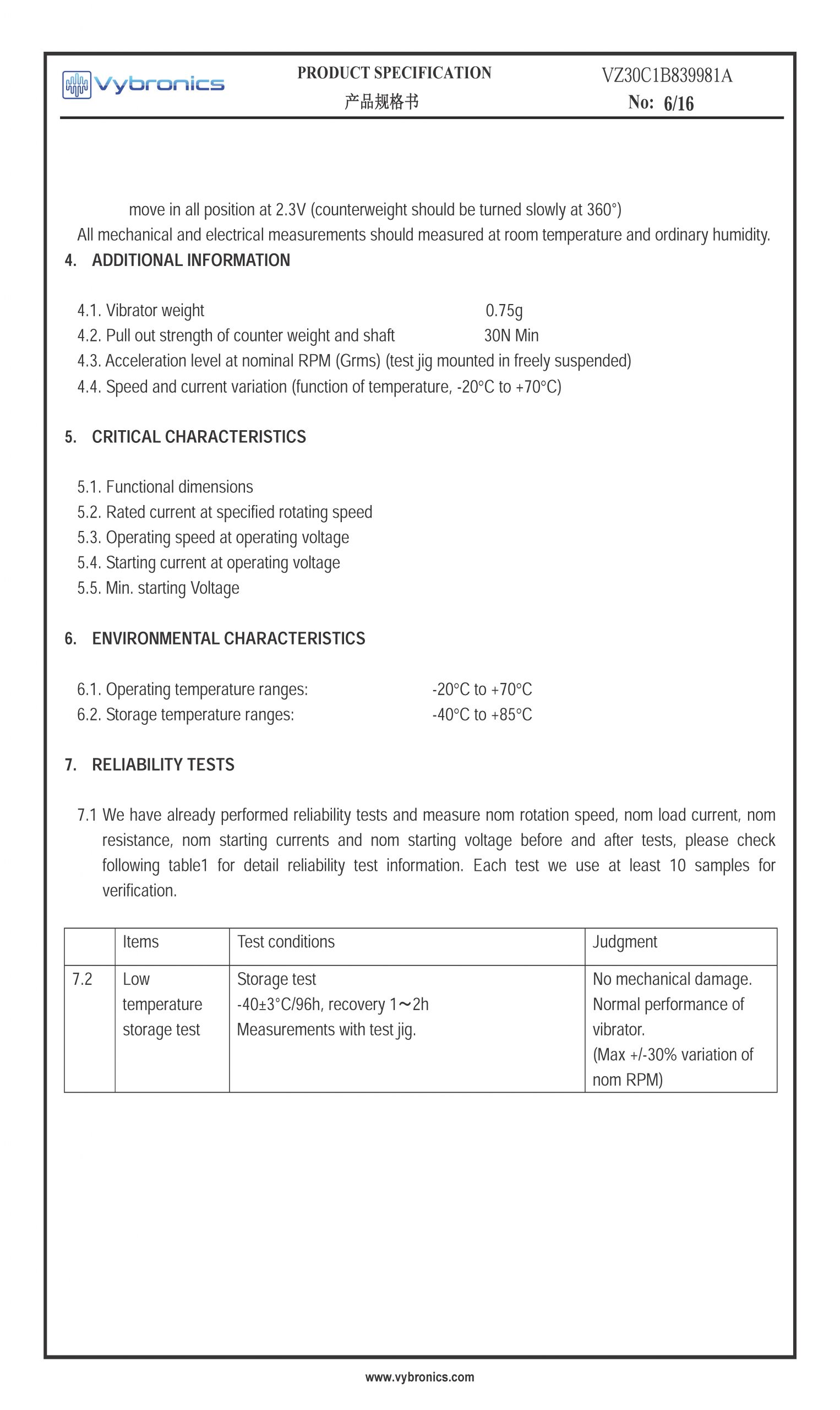

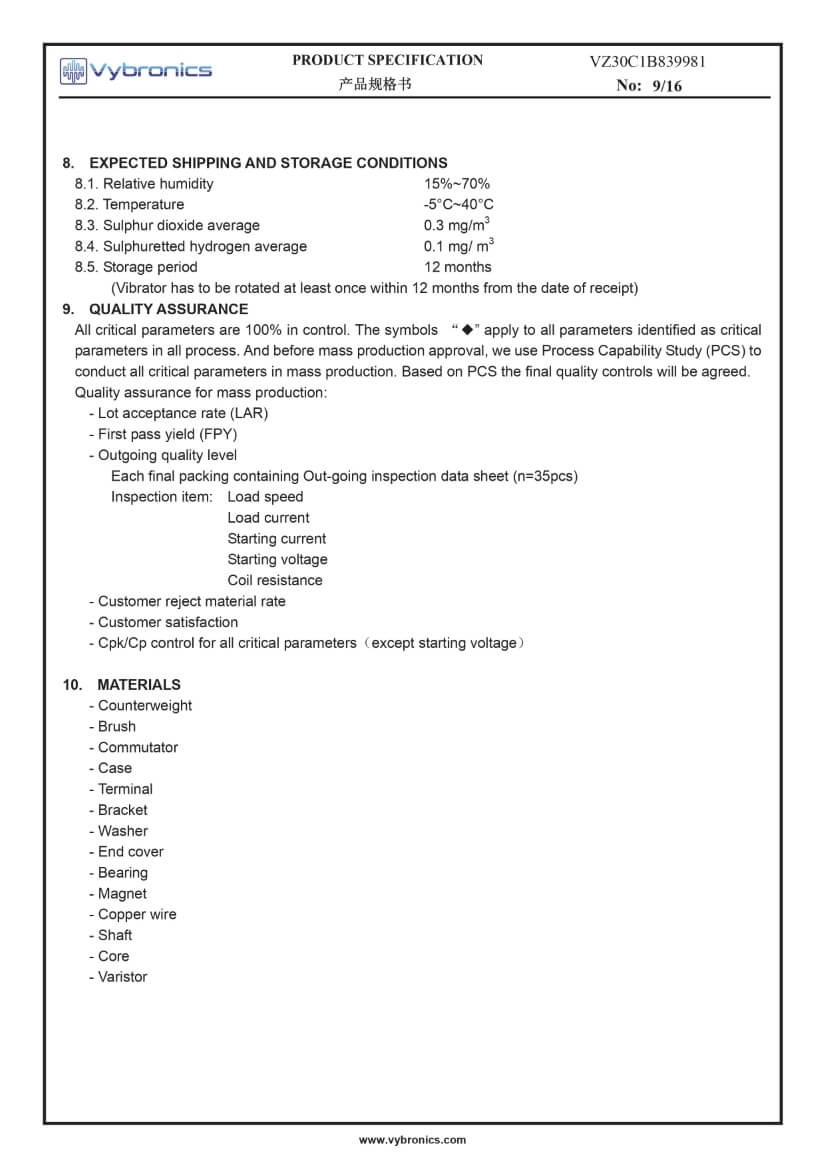

VZ30C1B839981A (old p/n Z30C1B839981A) PCB Mid-Mount Vibration Motor - SMD Reflow data 05VZ30C1B839981A (old p/n Z30C1B839981A) PCB Mid-Mount Vibration Motor - SMD Reflow data 06VZ30C1B839981A (old p/n Z30C1B839981A) PCB Mid-Mount Vibration Motor - SMD Reflow data 07VZ30C1B839981A (old p/n Z30C1B839981A) PCB Mid-Mount Vibration Motor - SMD Reflow data 08VZ30C1B839981A (old p/n Z30C1B839981A) PCB Mid-Mount Vibration Motor - SMD Reflow data 09

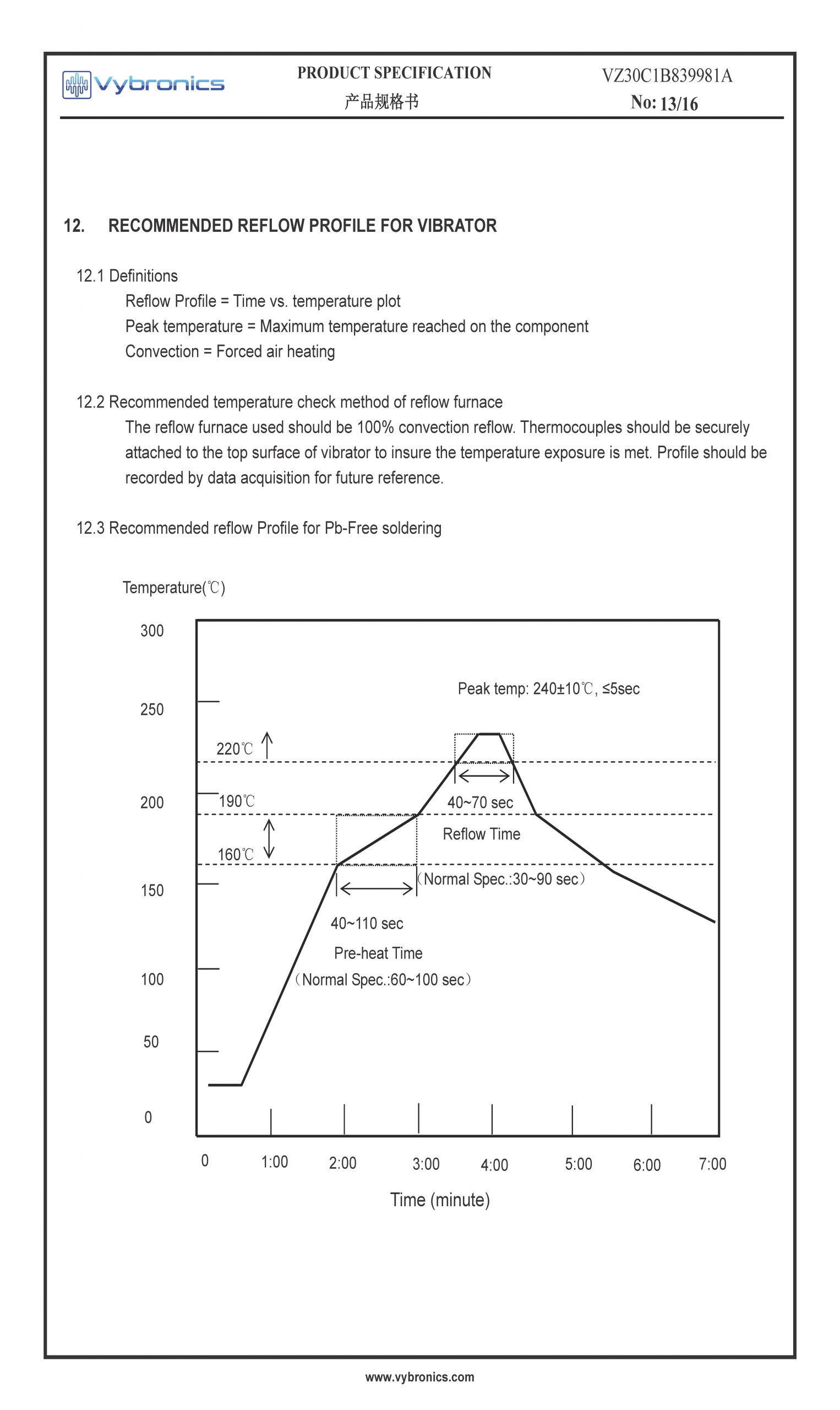

VZ30C1B839981A (old p/n Z30C1B839981A) PCB Mid-Mount Vibration Motor - SMD Reflow data 13
