Model Number: VZ4TH5B1462252
(old p/n: Z4TH5B1462252)

4.9mm Hgt | 3 V | Low Current | Spring | Vibration Motor

The Vybronics  VZ4TH5B1462252 is designed for application where low power consumption is the primary design consideration. The price point of this motor is much higher than our standard vibration motors making it impractical for toys and other low cost consumer applications. The motor is surrounded by a rubber boot that allows it to be press fit into the desired location in your devices housing.  After sample approval, MOQ for this part is 10K pcs.   If this is too high, please consider using our "drop-in" compatible"  VZ4TH5B1462253L, which has  MOQ:  2K pcs.    This motor part is more widely used and has shorter lead times.

CLICK  HERE to see photos of how this motor is typically mounted in the products housing.

Summary Of Specifications
Diameter/Height (mm): 4.0 / 4.9
Body (mm): 8.7
Overall (mm): 12.7
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Rated Current MAX (mA):  30
Typical Current (mA): 21
Rated Speed (rpm): 13000
Vibration Force (Grms): 0.40
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.67
25% Ex. Code Valid: 12 OCT 21 to
31 DEC 22


If you need samples,
please Contact Us.
Add To Favorite List
VZ4TH5B1462252 (old p/n Z4TH5B1462252) Low Current Surface Mount Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

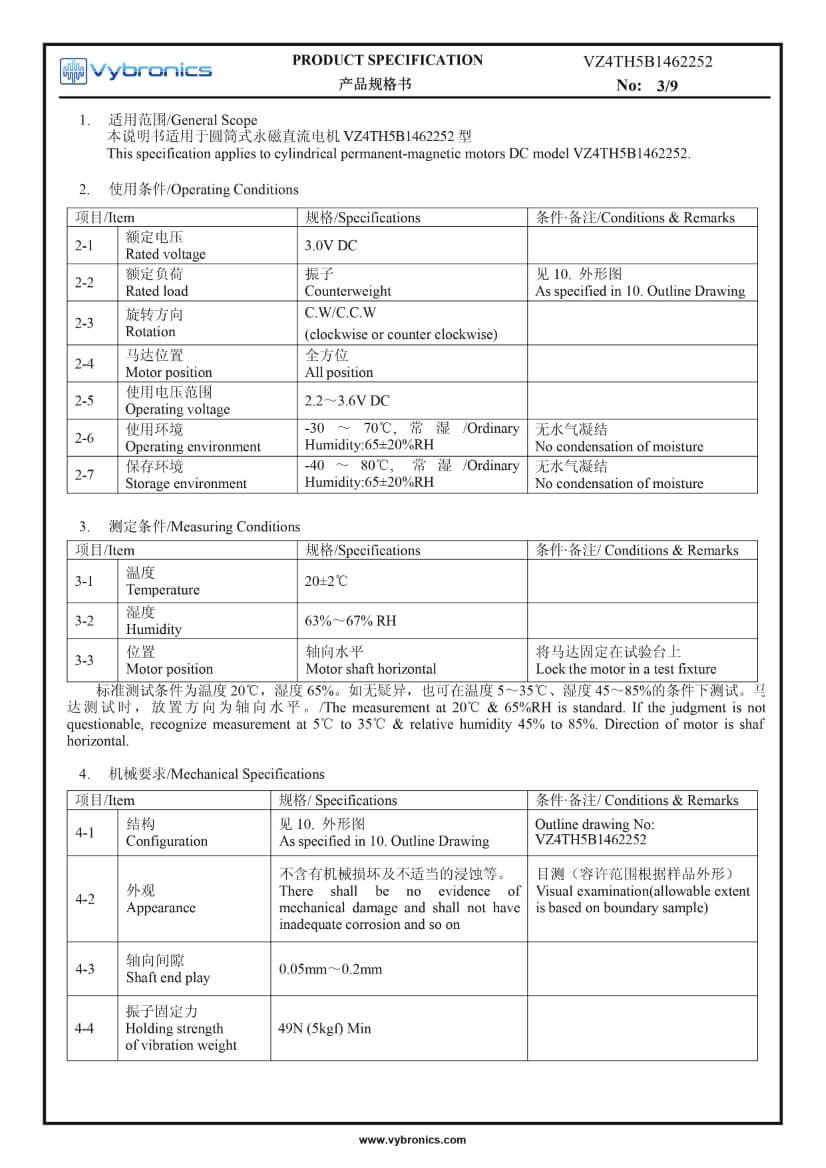

VZ4TH5B1462252 (old p/n Z4TH5B1462252) Low Current Surface Mount Vibration Motor data 03VZ4TH5B1462252 (old p/n Z4TH5B1462252) Low Current Surface Mount Vibration Motor data 04VZ4TH5B1462252 (old p/n Z4TH5B1462252) Low Current Surface Mount Vibration Motor data 05VZ4TH5B1462252 (old p/n Z4TH5B1462252) Low Current Surface Mount Vibration Motor data 06
