KOTL Jinlong Z6CH1A0082352
Model Number: VZ6CH1A0082352
(old p/n: Z6CH1A0082352)

8.05mm Height | 1.3 V | Spring Contact | Vibration Motor

This 6mm vibration motor is our most powerful compression spring motor that allow it to be surface mountable. The silicone rubber boot running the length of the motor allows the motor to be press fit into a cavity in your products housing.

CLICK  HERE to see photos of how this motor is typically mounted in the products housing.

Summary Of Specifications
Diameter/Height (mm): 6.0 / 8.05
Body (mm): 15.3
Overall (mm): 20.8
Rated Voltage (Vdc): 1.3
Operating Voltage (Vdc): 0.9~1.6
Rated Current MAX (mA): 80
Typical Current (mA): 52
Rated Speed (rpm): 7500
Vibration Force (G): 1.30
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS Tarrif: 8501.10.4060
USA 25% Exemption: NONE


If you need samples,
please Contact Us.
Add To Favorite List
VZ6CH1A0082352 (old p/n Z6CH1A0082352) Spring Contacts Surface Mount Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

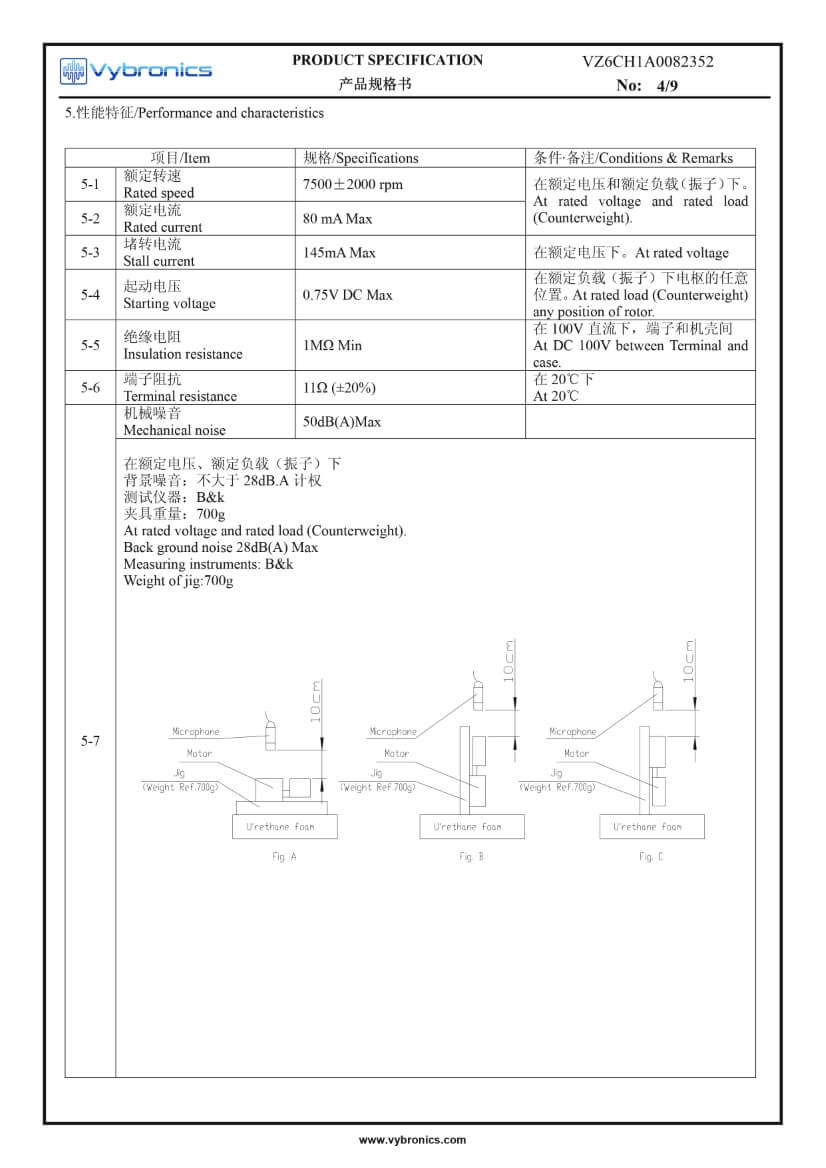

VZ6CH1A0082352 (old p/n Z6CH1A0082352) Spring Contacts Surface Mount Vibration Motor data 04VZ6CH1A0082352 (old p/n Z6CH1A0082352) Spring Contacts Surface Mount Vibration Motor data 04VZ6CH1A0082352 (old p/n Z6CH1A0082352) Spring Contacts Surface Mount Vibration Motor data 05VZ6CH1A0082352 (old p/n Z6CH1A0082352) Spring Contacts Surface Mount Vibration Motor data 06
