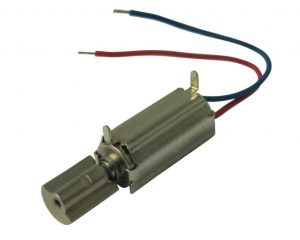

Vybronics VZ4SL2A0280131
Model Number: VZ4SL2A0280131
(old p/n: Z4SL2A0280131)

4 mm | 1.3 V | PCB Mounted Thru-Hole | Vibration Motor

This motor is identical to our VZ4SL2A0280001, but has a PCB mounting bracket. The VZ4SL series produces less vibration energy than our VZ4KL series, but substantially more than our VZ4TL series. If your order is for a minimum of 1000 pieces we can add a connector on the end of the wire.

Discounted mark
Summary Of Specifications
Diameter (mm): 4.0
Body (mm): 10.0
Overall (mm): 15.9
Rated Voltage (Vdc): 1.3
Operating Voltage (Vdc): 1.1~1.6
Rated Current MAX (mA): 85
Typical Current (mA): 57
Rated Speed (rpm): 10000
Vibration Force (Grms): 0.65
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List
VZ4SL2A0280131 (old p/n Z4SL2A0280131) PCB Mounted Thru-Hole Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

VZ4SL2A0280131 (old p/n Z4SL2A0280131) PCB Mounted Thru-Hole Vibration Motor data 02VZ4SL2A0280131 (old p/n Z4SL2A0280131) PCB Mounted Thru-Hole Vibration Motor data 03VZ4SL2A0280131 (old p/n Z4SL2A0280131) PCB Mounted Thru-Hole Vibration Motor data 04VZ4SL2A0280131 (old p/n Z4SL2A0280131) PCB Mounted Thru-Hole Vibration Motor data 05VZ4SL2A0280131 (old p/n Z4SL2A0280131) PCB Mounted Thru-Hole Vibration Motor data 06
