Vybronics VZ6DC1A0050091
Model Number: VZ6DC1A0050091
(old p/n: Z6DC1A0050091)

6 mm | 1.3 V | PCB Mounted Thru Hole | Vibration Motor

This 6 mm diameter vibration motor is identical to our VZ6DL2A0050001 except that it has been fitted with a through hole PCB pins that measure 1.8mm in length. If you require longer 3.6mm though hole pins please call us.

Please read our special soldering guidelines for this part.

Summary Of Specifications
Diameter (mm): 6.0
Body (mm): 12.3
Overall (mm): 17.3
Rated Voltage (Vdc): 1.3
Operating Voltage (Vdc): 0.9~1.6
Rated Current MAX (mA): 85
Typical Current (mA): 67
Rated Speed (rpm): 8500
Vibration Force (Grms): 0.80
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List

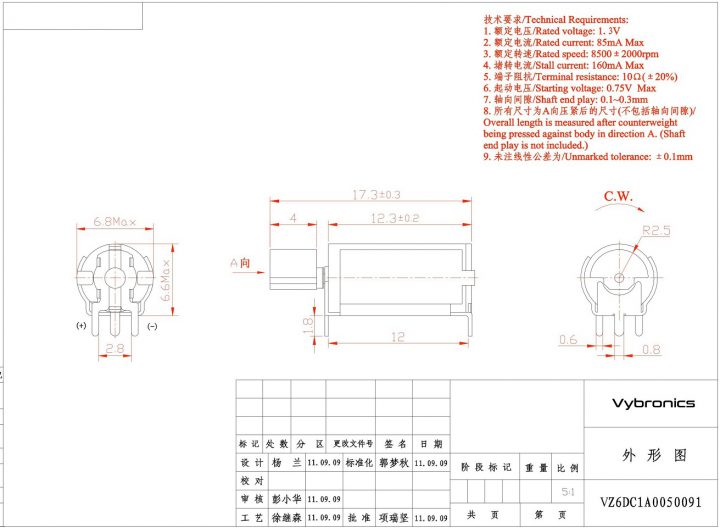

VZ6DC1A0050091 (old p/n Z6DC1A0050091) PCB Mounted Thru Hole Vibration Motor Drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.

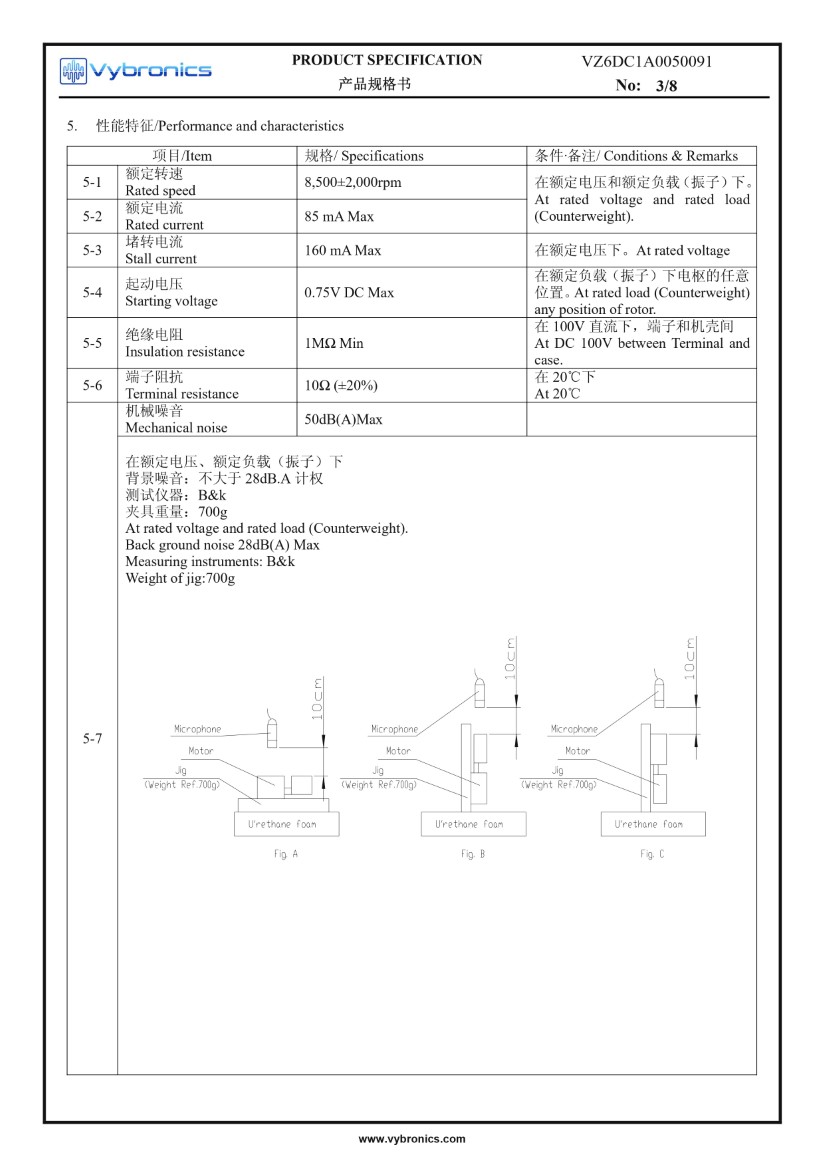

VZ6DC1A0050091 (old p/n Z6DC1A0050091) PCB Mounted Thru Hole Vibration Motor data 02VZ6DC1A0050091 (old p/n Z6DC1A0050091) PCB Mounted Thru Hole Vibration Motor data 03VZ6DC1A0050091 (old p/n Z6DC1A0050091) PCB Mounted Thru Hole Vibration Motor data 04VZ6DC1A0050091 (old p/n Z6DC1A0050091) PCB Mounted Thru Hole Vibration Motor data 05
