Vybronics VZ6SCAB0761141
Model Number: VZ6SCAB0761141

6 mm | 3 V | PCB Mounted Thru Hole | Vibration Motor

The VZ6SCAB0761141 is the PCB mountable version of version of  VZ6SL2B0760002 and is our most powerful motor in this size class.  Please read our special soldering guidelines for this part, on the bottom of the page.

Summary Of Specifications
Diameter (mm): 6.0
Body (mm): 10.3
Overall (mm): 16.4
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.2~3.6
Rated Current MAX (mA): 160
Typical Current (mA): 120
Rated Speed (rpm): 12000
Vibration Force (Grms): 1.70
Packaging Spec
Part Packaging: Tray
Qty per reel / tray: 100
Quantity - Master box: 4000
Size - Master Box: Call us
Weight - Master Box: Call us
ECCN: EAR99
USA HTS TARIFF: 8501.10.4060
25% Exclusion Code: 9903.88.69
25% Ex. Code Valid: from June 15, 2024 thru May 31, 2025


If you need samples,
please Contact Us.
Add To Favorite List

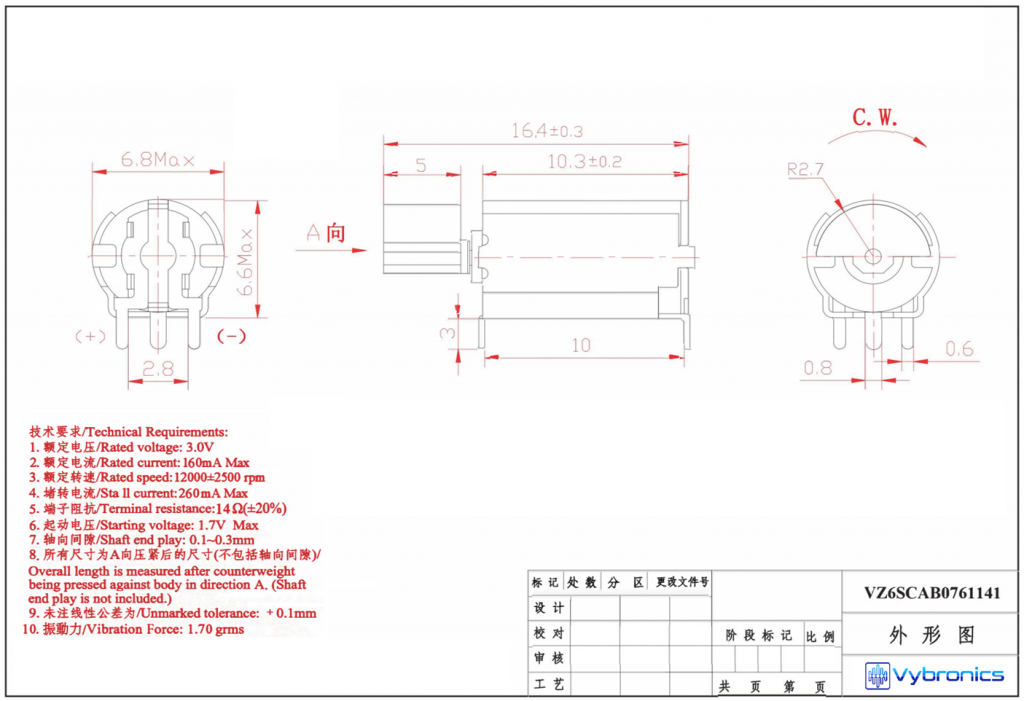

VZ6SCAB0761141, 6mm cylindrical vibration motor drawing

This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:

  1. is surgically implanted into the body
  2. supports or sustains life, and whose failure to perform as per our specification,
    may result in serious injury or death of the user.



VZ6SCAB0761141, 6mm cylindrical vibration motor data 03VZ6SCAB0761141, 6mm cylindrical vibration motor data 04VZ6SCAB0761141, 6mm cylindrical vibration motor data 05VZ6SCAB0761141, 6mm cylindrical vibration motor data 06
