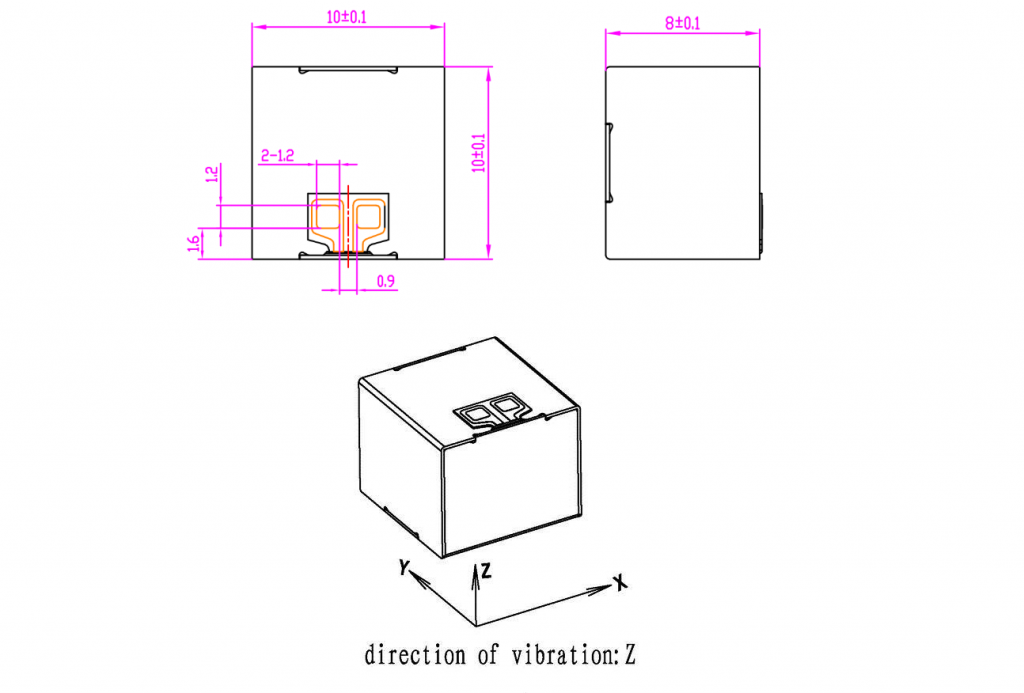

The VLV101080L-128H is a variant of our VLV101080L that generates a vibration force at a resonant frequency at 128Hz ,in the Z axis, perpendicular to the face of the device. See Mech drawing orientation in XYZ plane. It has a 50ms rise and 80ms fall time, allowing this LRA to generate strong haptic effects. This LRA has solder tabs that can be connected to wire leads or another FPC. This can be supplied with a custom cable assembly with a connector. Like all LRA's this device is typically connected to a LRA driver IC which produces the AC drive signal for this device and improves the rise / fall times by employing overdrive and active braking.
| Summary Of Specifications | |
| Length (mm): | 10.0 |
| Width (mm): | 10.0 |
| Height (mm): | 8.0 |
| Rated Voltage (AC RMS): | 2.0 |
| Operating Voltage (AC RMS): | 0.1 ~ 2.0 |
| Rated Current MAX (mA): | 150 |
| Typical Current (mA): | 80 |
| Rise Time (ms) MAX *: | 50 |
| Fall Time (ms) MAX *: | 80 |

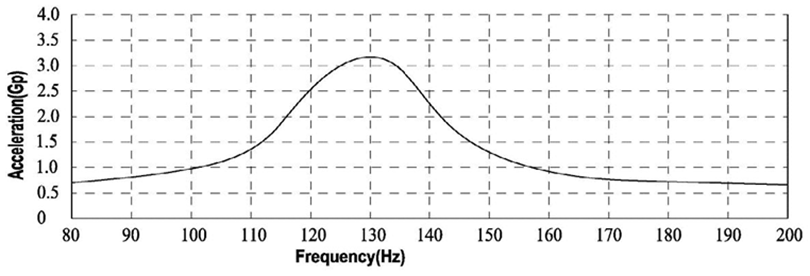

| Resonant Frequency: | 128 |
| Vibration Force (Grms): | 2.40 |
| * at 50% of Maximum G force | |
| Packaging Spec / Tariff Info | |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 5000 |
| Size - Master Box: | 24*19*22 |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4020 |
| 25% Exclusion Code: | 9903.88.69 |
| 25% Ex. Code Valid: | from June 14, 2024 thru Nov 10, 2026 |
| Country of Origin: | CHINA |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
