The VZ7AV2K0760001L is an Automotive Grade vibration motor that meets AEC-Q100 Temperature Grade specifications. These are typically used in steering wheels, gear shifters, within the seat or any surface that a driver may interact with that requires haptic feedback. Current 2023 Price: MOQ: 2K @ USD 3.90 ea . We can supply this motor with any lead length or with an alternate connector.

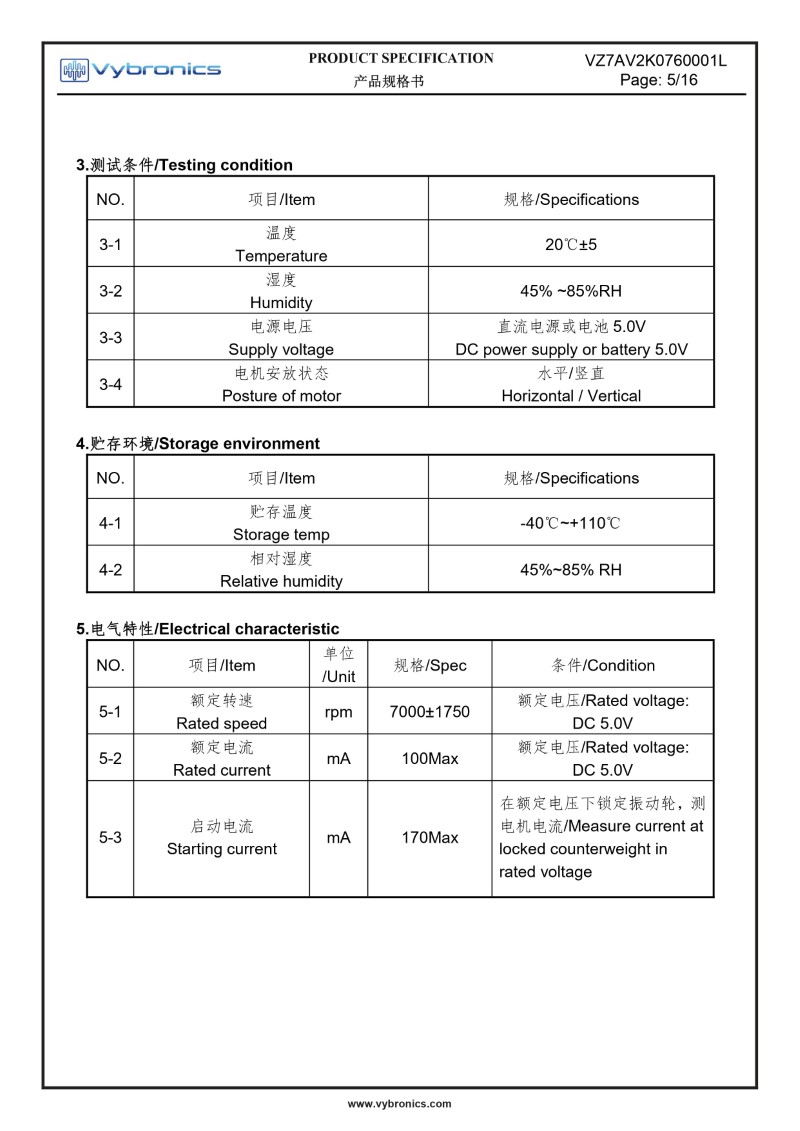

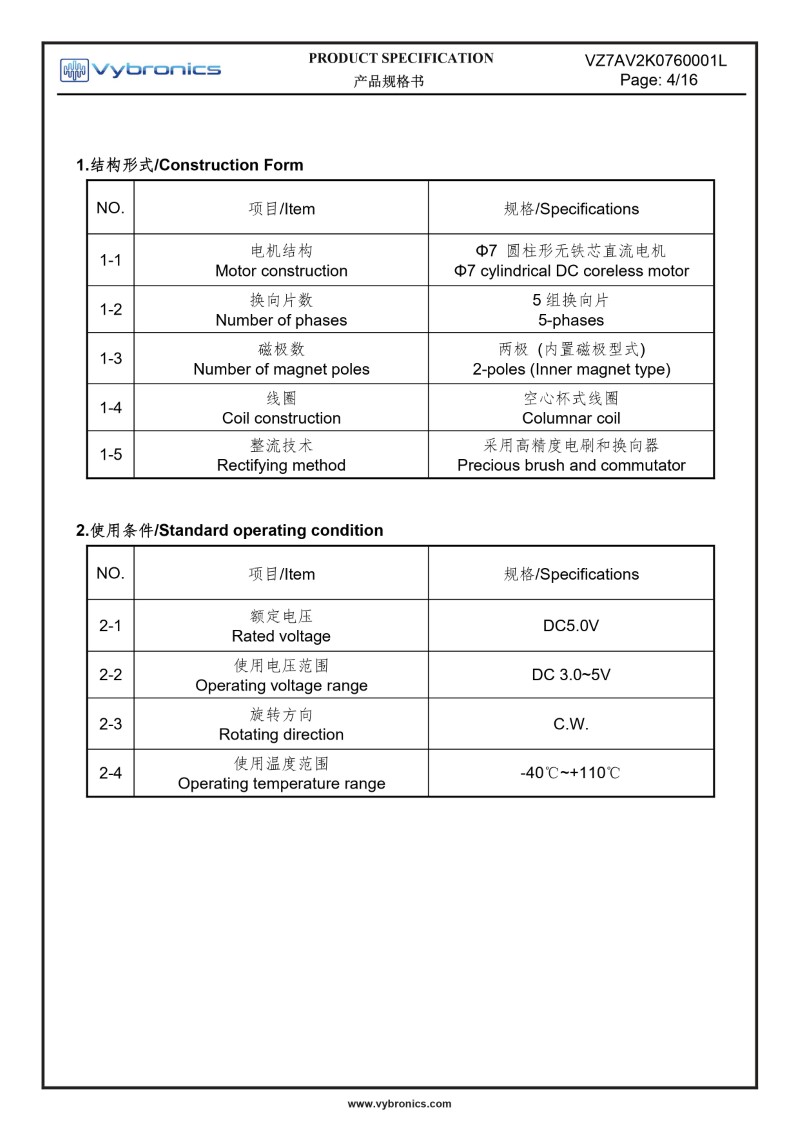

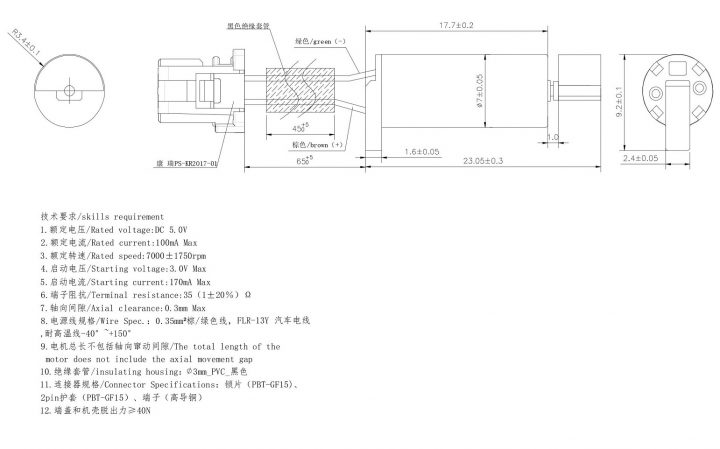

| Summary Of Specifications | |

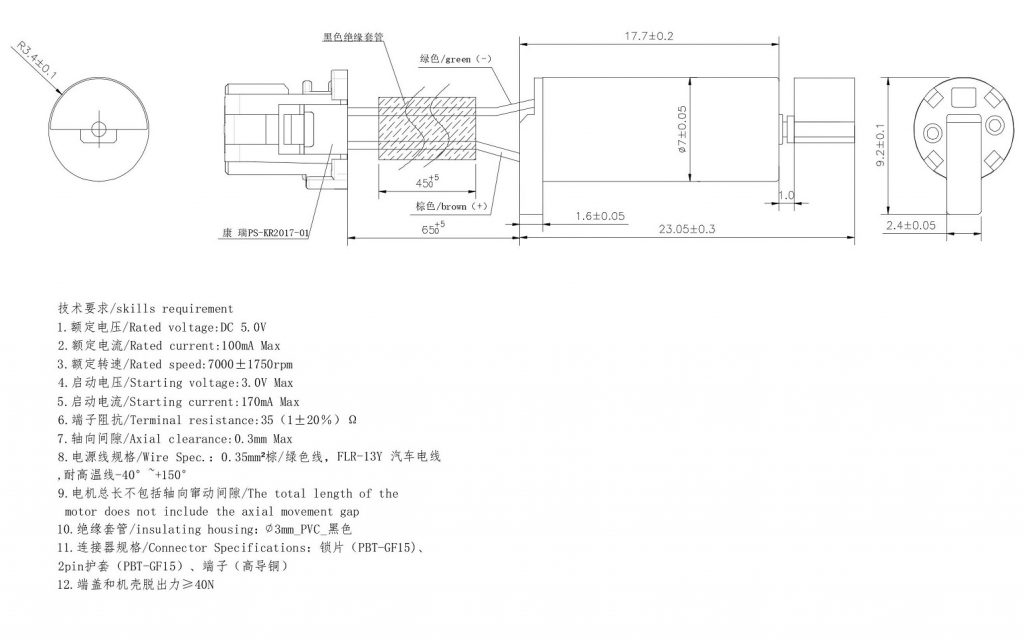

| Diameter (mm): | 7.0 |
| Body (mm): | 17.7 |
| Overall (mm): | 23.05 |
| Rated Voltage (Vdc): | 5.0 |
| Operating Voltage (Vdc): | 3.0~5.0 |
| Rated Current MAX (mA): | 100 |
| Typical Current (mA): | 78 |
| Rated Speed (rpm): | 7000 |
| Vibration Force (Grms): | 2.50 |
| Packaging Spec | |
| Part Packaging: | Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 4000 |
| Size - Master Box: | Call us |
| Weight - Master Box: | Call us |
| ECCN: | EAR99 |
| USA HTS TARIFF: | 8501.10.4060 |
| 25% Exclusion Code: | 9903.88.67 |
| 25% Ex. Code Valid: | thru May 31 2024 |
|
If you need samples, please Contact Us. |
|||
|
This part is not authorized for Life Supporting Devices
None of the products offered for sale by us are authorized for use in any device that:
