Automotive Grade AEC-Q100 Vibration Motors & LRA – Linear Resonant Actuators |
 |
Part Number  |
Old P/N (see PCN) | Image  |
Config. Type | Motor Size (mm) | Voltage (Vdc) | Current (mA) | Rated speed (rpm) | Rated Vibe Freq. (Hz) | Vibe Force (Grms) | CLICK to BUY from  |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dia / Hgt | Body Length |
Overall Length |
Rated | Operating | Rated MAX |
Typical* Avg. |
||||||||
| VZ7AV2K0760001L |
|
1.1 | 7.0 | 17.7 | 23.05 | 5.0 | 3.0~5.0 | 100 | 78 | 7000 | 117 | 2.50 |
 |
|
| Part Number | Old P/N (see PCN) | Image | Config. Type | Dia / Hgt (mm) | Body L (mm) | Overall L (mm) | Rated (V) | Operating (V) | Rated MAX (mA) | Typical* (mA) | Speed (rpm) | Rated Freq. (Hz) | Vibe Force (Grms) | BUY SAMPLES HERE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VZ7AV2K0760001L |
|
1.1 | 7.0 | 17.7 | 23.05 | 5.0 | 3.0~5.0 | 100 | 78 | 7000 | 117 | 2.50 |
|
Coin Vibration Motor / Coin LRA for Automotive Application:
|
Part Number
|
Old P/N
|
|
Tech. Type
|
Dia (mm)
|
Thickness (mm)
|
Rated (V)
|
Operating (V)
|
Rated MAX (mA)
|
Typical* (mA)
|
Rise Time (ms)
|
Fall Time (ms)
|
Res. Freq (hz)
|
Vibe Force (Grms)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VG2080001H |
|
LRA | 20.0 | 8.0 | 1.8 Vac | 1.0~2.0 Vac | 200 | 170 | 20 | 60 | 130 | 2.00 |
Rectangular LRA for Automotive Application:
|
Part Number
|
Old P/N
|
|
Length (mm)
|
Width (mm)
|
Height (mm)
|
Rated (V)
|
Operating (V)
|
Rated MAX (mA)
|
Typical* (mA)
|
Rise Time (ms)
|
Fall Time (ms)
|
Res. Freq (hz)
|
Vibe Force (Grms)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

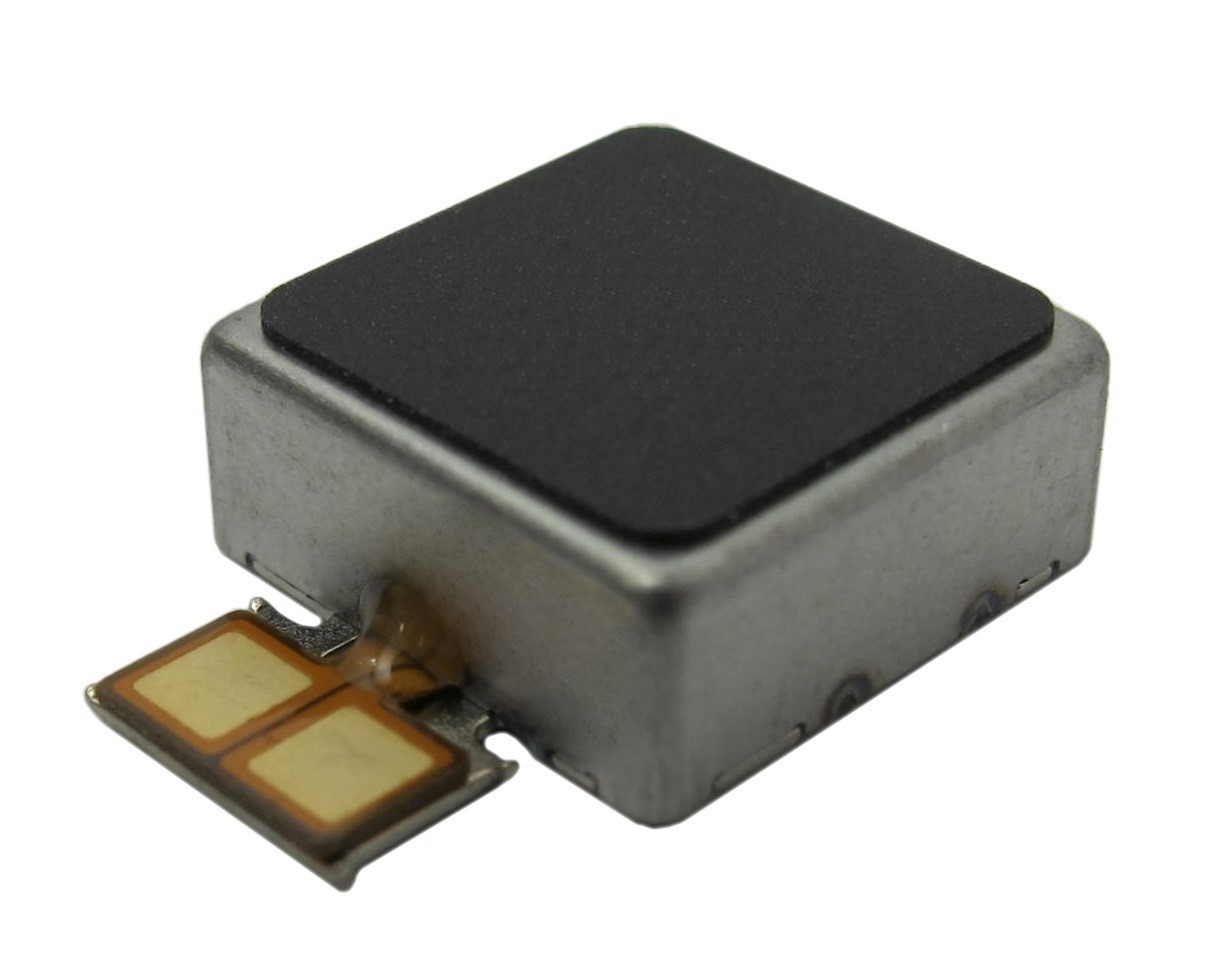

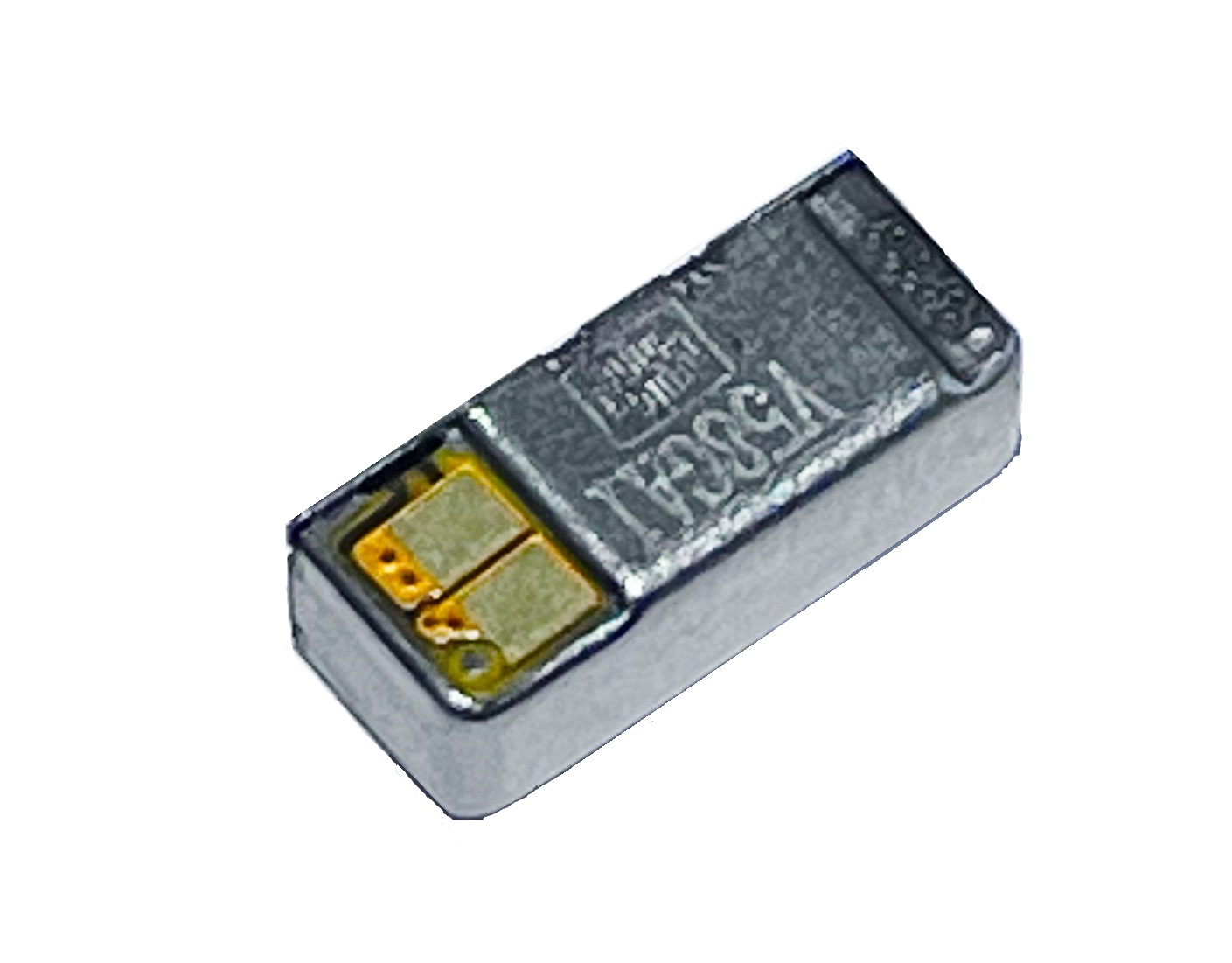

| VLV041235L-L20-TG3 |  |
12.0 | 4.0 | 3.5 | 1.8 Vac | 0.1~1.85 Vac | 60 | 47 | 40 | 60 | 240 | 1.60 | |
| VLV101040J-TG3 |
|
10.0 | 10.0 | 4.0 | 1.0 Vac | 0.1~1.05 Vac | 150 | 117 | 15 | 60 | 190 | 2.5 |
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
|
||||||||||||||
